D-Link DSL-2520U User Manual

DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Overview
Back Panel

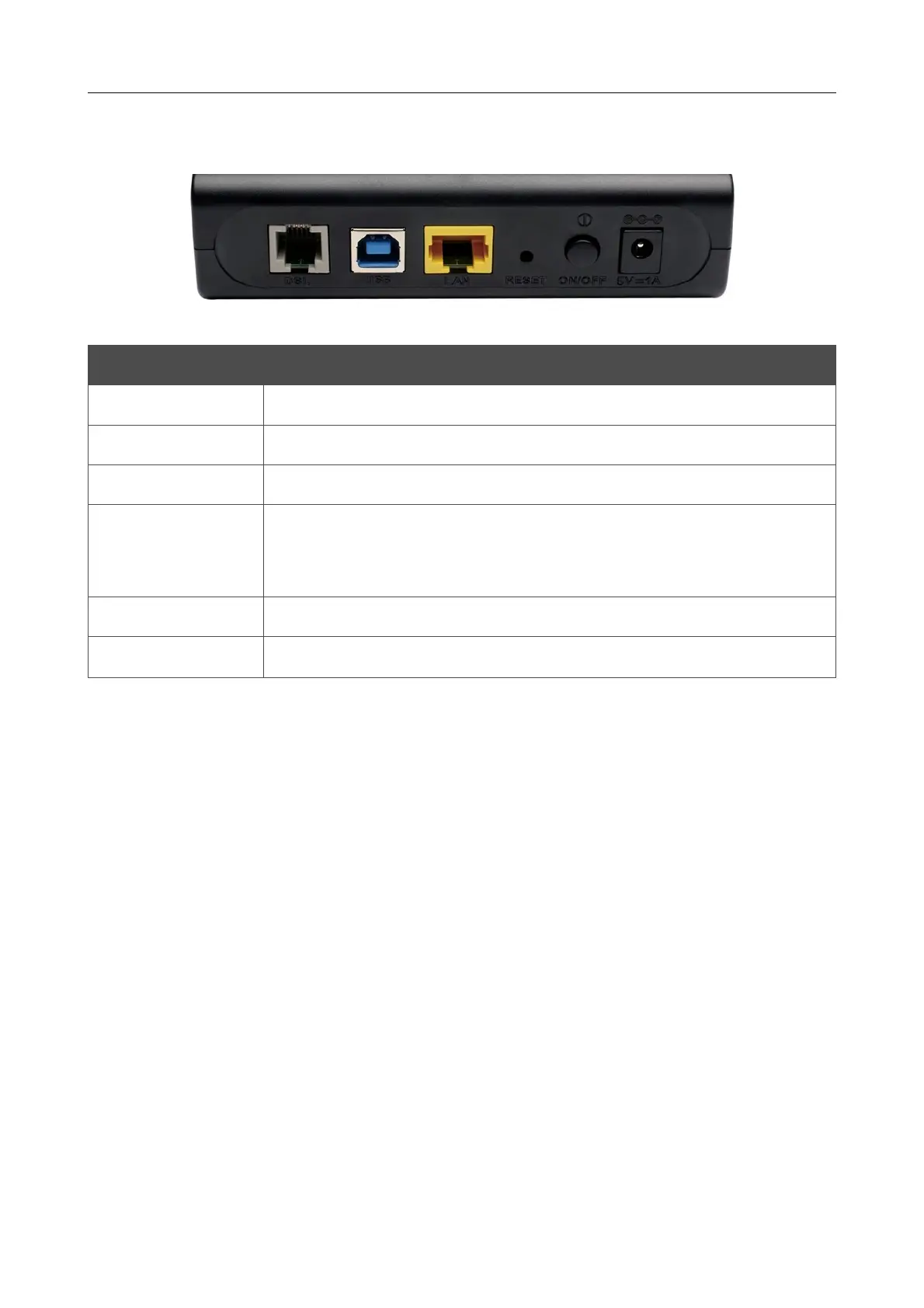

Figure 2. Back panel view.
Port Description
DSL
A DSL port to connect the router to the telephone line.
USB
A USB port to connect to a single computer.
LAN
An Ethernet port to connect a computer/switch.
RESET
A button to restore the factory default settings.
To restore the factory defaults, push the button (with the device turned on), hold
it for 10 seconds, and then release the button.
ON/OFF
A button to turn the router on/off.
5V=1A
Power connector.
Page 10 of 83

D-Link DSL-2520U Specifications

Data Transfer Rates

ADSL full rate downstream	up to 8 Mbps
ADSL full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL2 full rate downstream	up to 24 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface	RJ-45 port for 10/100BASE-T Ethernet
USB interface	USB port Type B connector, USB 1.1 Specification
