DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
CHAPTER 4. CONFIGURING VIA WEB-BASED
INTERFACE
Wizards
Internet Setup Wizard
To configure connection to the Internet, click the Connect to internet button.

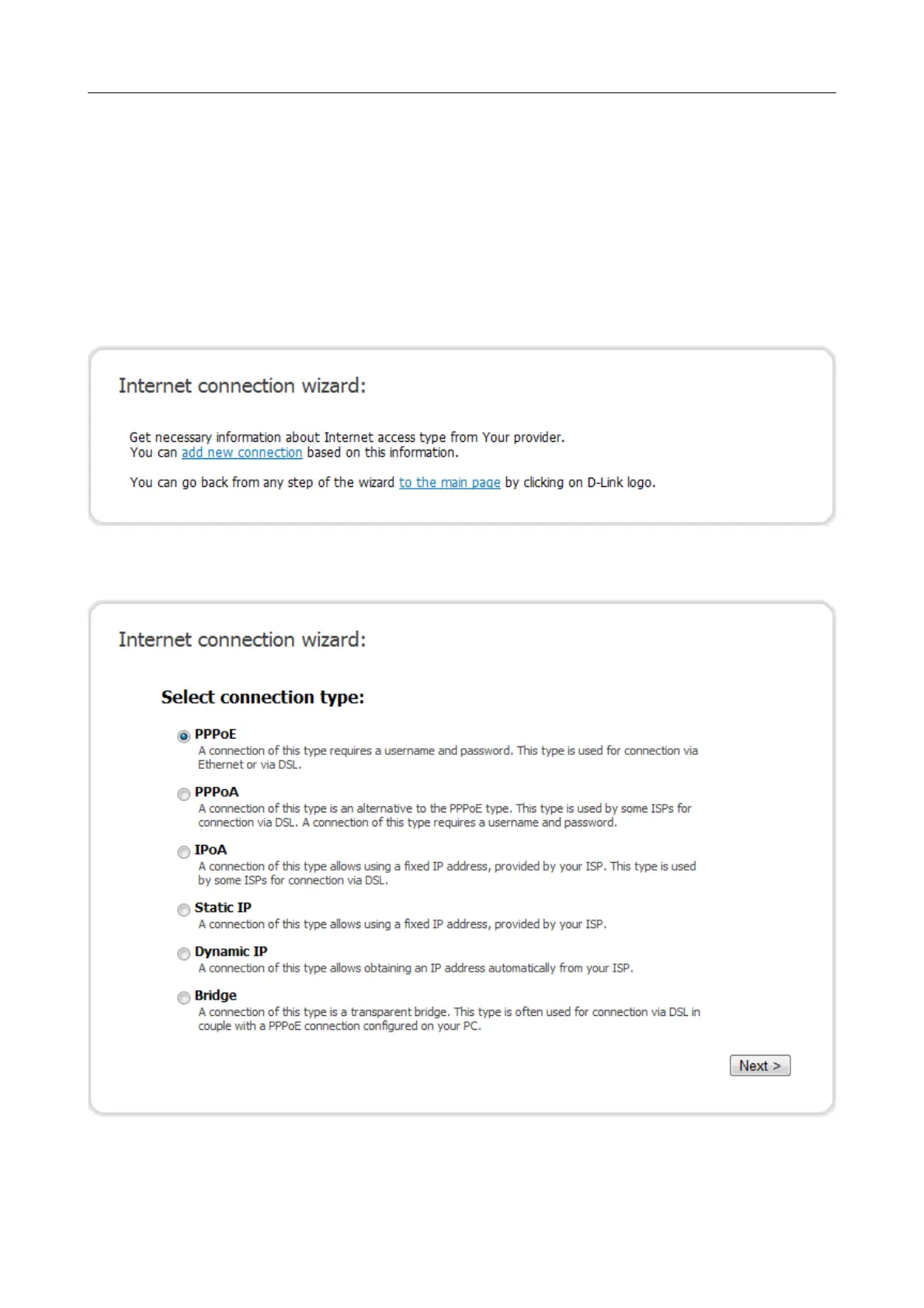

Figure 18. Configuring connection to the Internet.
To create a new WAN connection, click the add new connection link.
Figure 19. The page for selecting the connection type.
On the opened page, select the needed choice of the radio button and click the Next button.
Page 26 of 83

Other manuals for D-Link DSL-2520U

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DSL-2520U and is the answer not in the manual?

D-Link DSL-2520U Specifications

Data Transfer Rates IconData Transfer Rates
ADSL full rate downstreamup to 8 Mbps
ADSL full rate upstreamup to 1 Mbps
G.lite downstreamup to 1.5 Mbps
G.lite upstreamup to 512 Kbps
G.dmt.bis full rate downstreamup to 12 Mbps
G.dmt.bis full rate upstreamup to 12 Mbps
ADSL2 full rate downstreamup to 24 Mbps
Interfaces IconInterfaces
ADSL interface connectorRJ-11
LAN interfaceRJ-45 port for 10/100BASE-T Ethernet
USB interfaceUSB port Type B connector, USB 1.1 Specification
