D-Link DSL-2520U User Manual

DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Bridge Connection

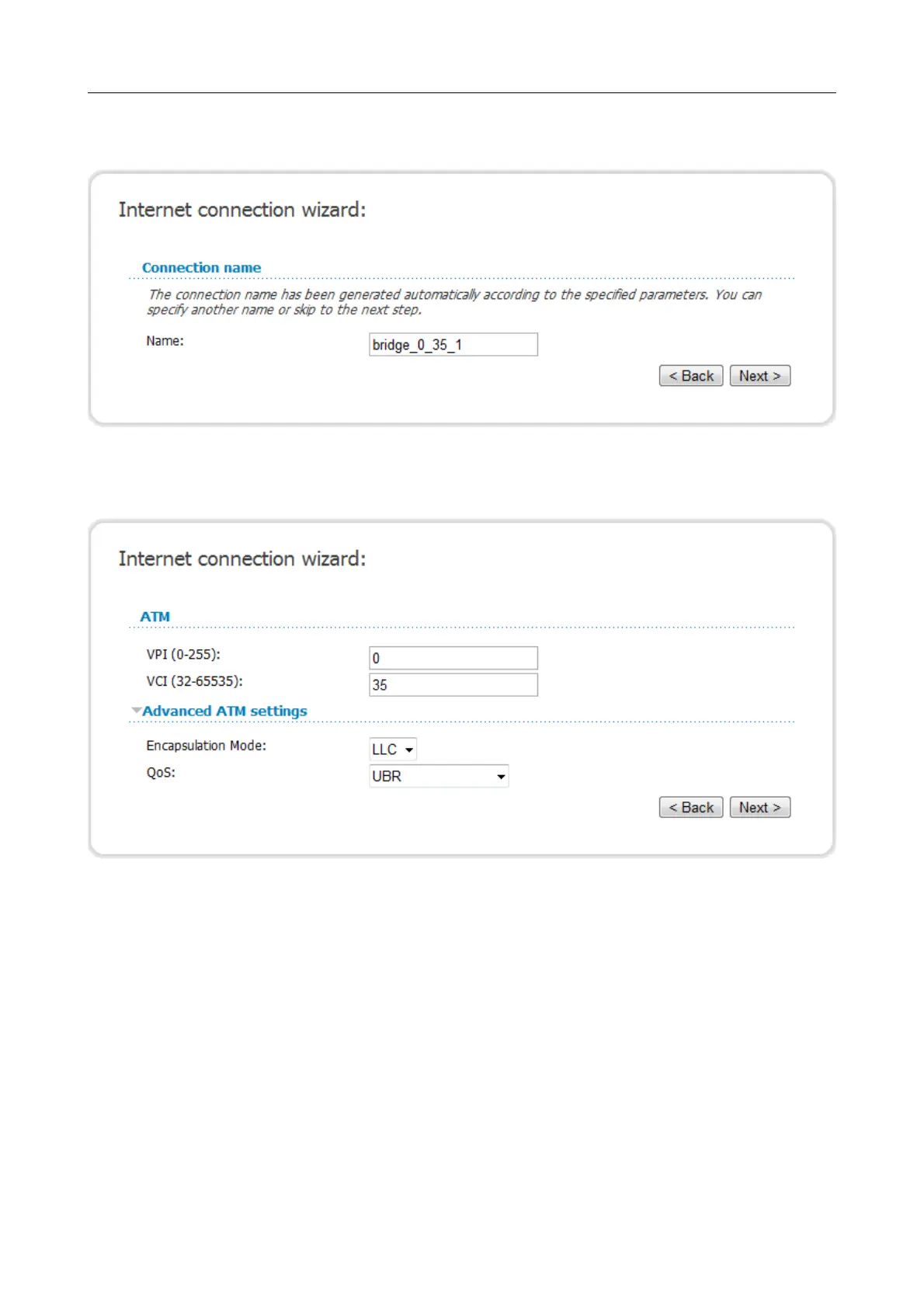

Figure 33. Configuring Bridge WAN connection.
In the Name field, specify a name for the connection for easier identification and click the Next
button.
Figure 34. Configuring Bridge WAN connection.
In the VPI field, specify the VPI. In the VCI field, specify the VCI.
From the Encapsulation Mode drop-down list, select a method of encapsulation.
Click the Next button to continue.
Page 37 of 83

D-Link DSL-2520U Specifications

Data Transfer Rates

ADSL full rate downstream	up to 8 Mbps
ADSL full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL2 full rate downstream	up to 24 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface	RJ-45 port for 10/100BASE-T Ethernet
USB interface	USB port Type B connector, USB 1.1 Specification
