D-Link DSL-2520U User Manual

DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
LAN Clients
On the Status / LAN clients page, you can view data on network devices connected to the router.
The page displays devices connected to the router's LAN and devices accessing the web-based
interface of the router.

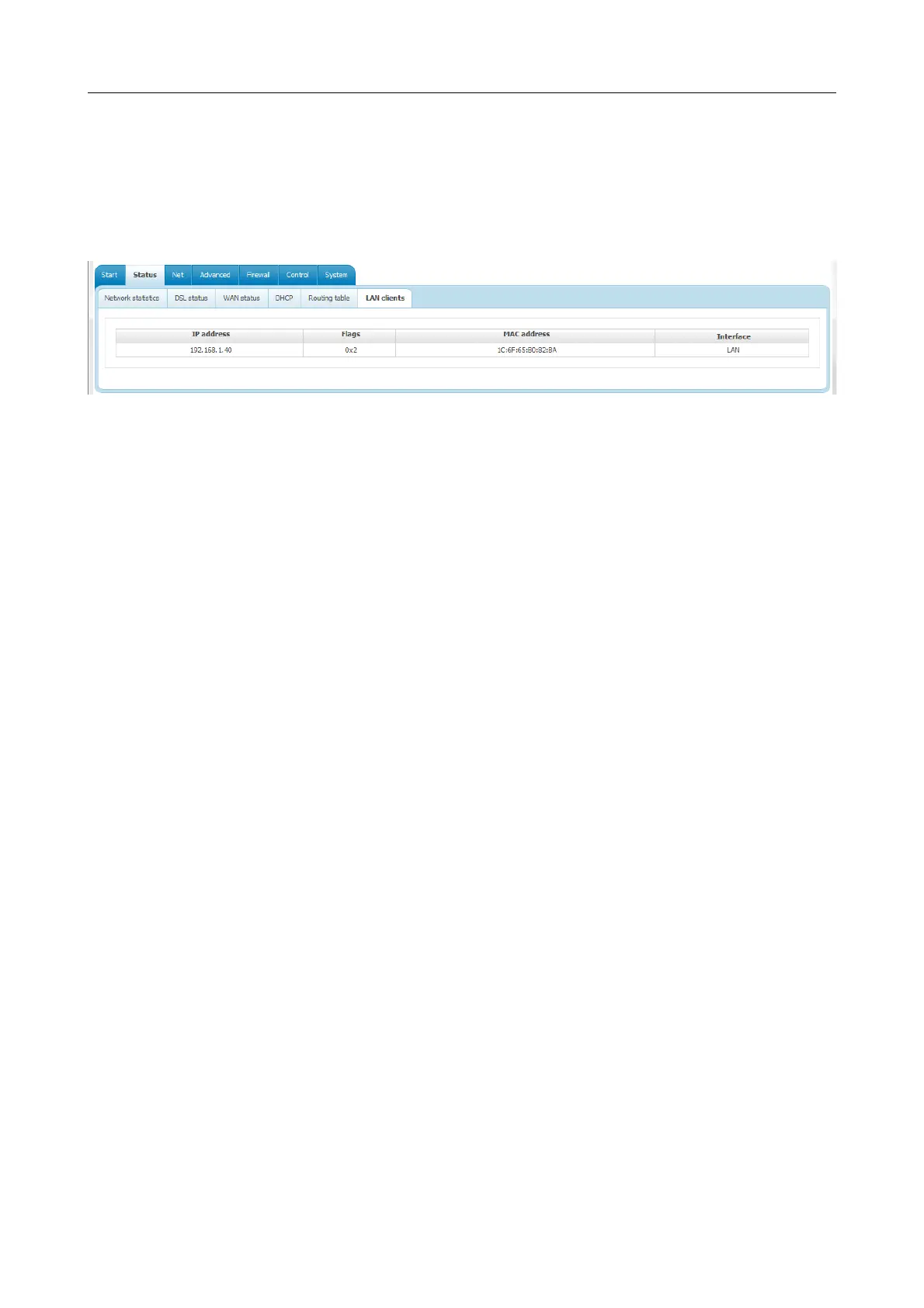

Figure 42. The Status / LAN clients page.
For each device the following data are displayed: the IP address, the MAC address, and the
interface to which the device is connected.
Page 45 of 83

D-Link DSL-2520U Specifications

Data Transfer Rates

ADSL full rate downstream	up to 8 Mbps
ADSL full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL2 full rate downstream	up to 24 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface	RJ-45 port for 10/100BASE-T Ethernet
USB interface	USB port Type B connector, USB 1.1 Specification
