D-Link DSL-2640R User Manual

Configuration

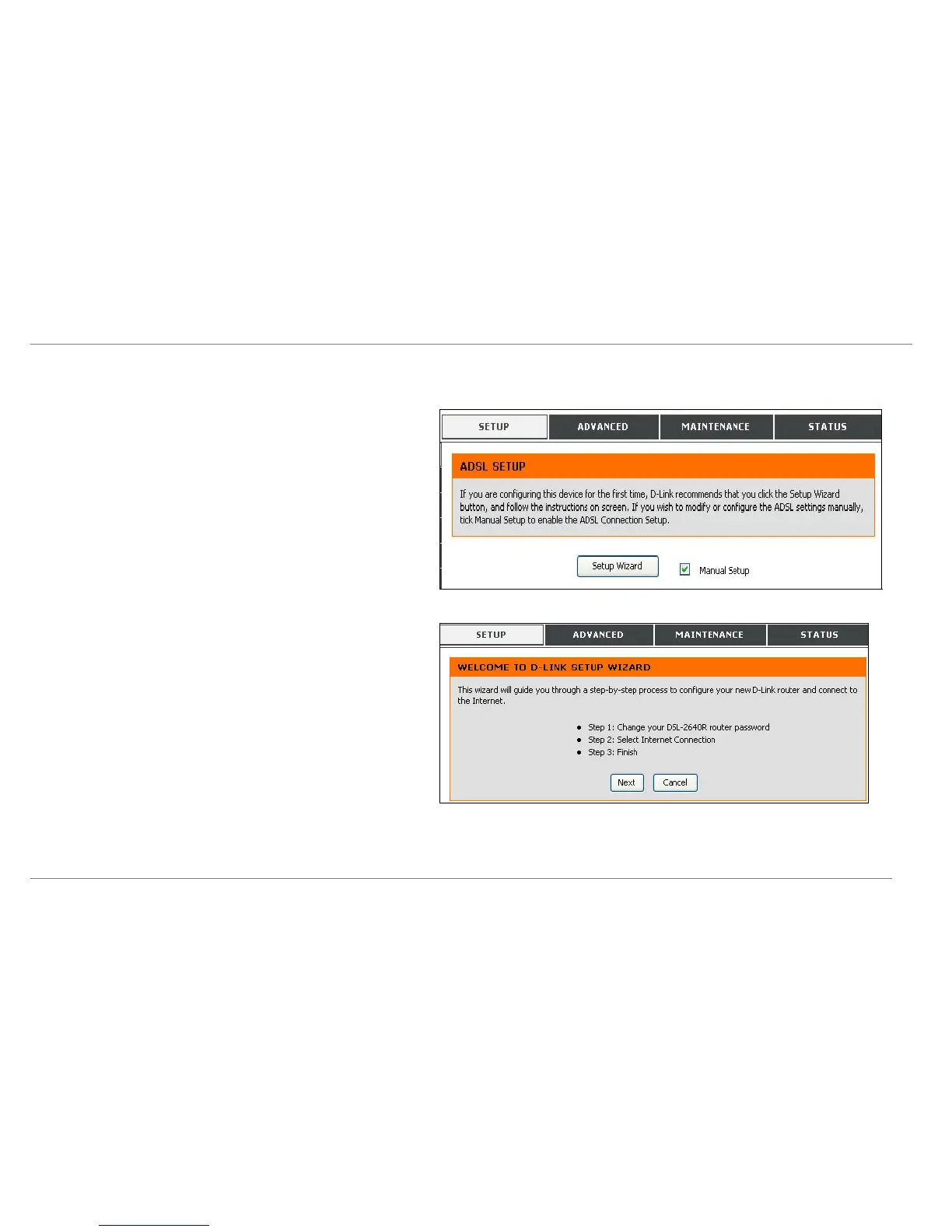

ADSL Setup - Setup Wizard
The quickest way for most users to establish the Internet connection is to use the Setup Wizard accessed from the ADSL Setup menu. Alternatively the WAN connection can be
configured manually by selecting the Manual Setup option and configuring the ADSL Setup menu as described in ADSL Setup – Manual Configuration below.
Go to the Setup directory to view the ADSL Setup menu.
To use the Setup Wizard, click the Setup Wizard button in the first browser
menu and follow the instructions in the menus that appear.
The initial menu summarizes the setup process. Click the Next button to
proceed. You may stop using the Setup Wizard at any time by clicking the
Cancel button. If you exit the wizard you will return to the ADSL Setup
menu without saving any of the settings changed during the process.
The first menu of the Setup Wizard lists the basic steps in the process.
These steps are as follows:
1. Change the router password.
2. Configure the connection to the Internet.
3. Finish.
Click Next to continue.
D-Link DSL-2640R User Manual
14

D-Link DSL-2640R Specifications

Power

input voltage	100-120V
input current	0.4A
frequency	50-60 Hz
output voltage	12V
output current	1.2A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b	11, 5.5, 2, and 1 Mbps
IEEE 802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	four RJ-45 ports for 10/100BASE-T Ethernet connection
