D-Link DSL-2640R

Advanced Configuration

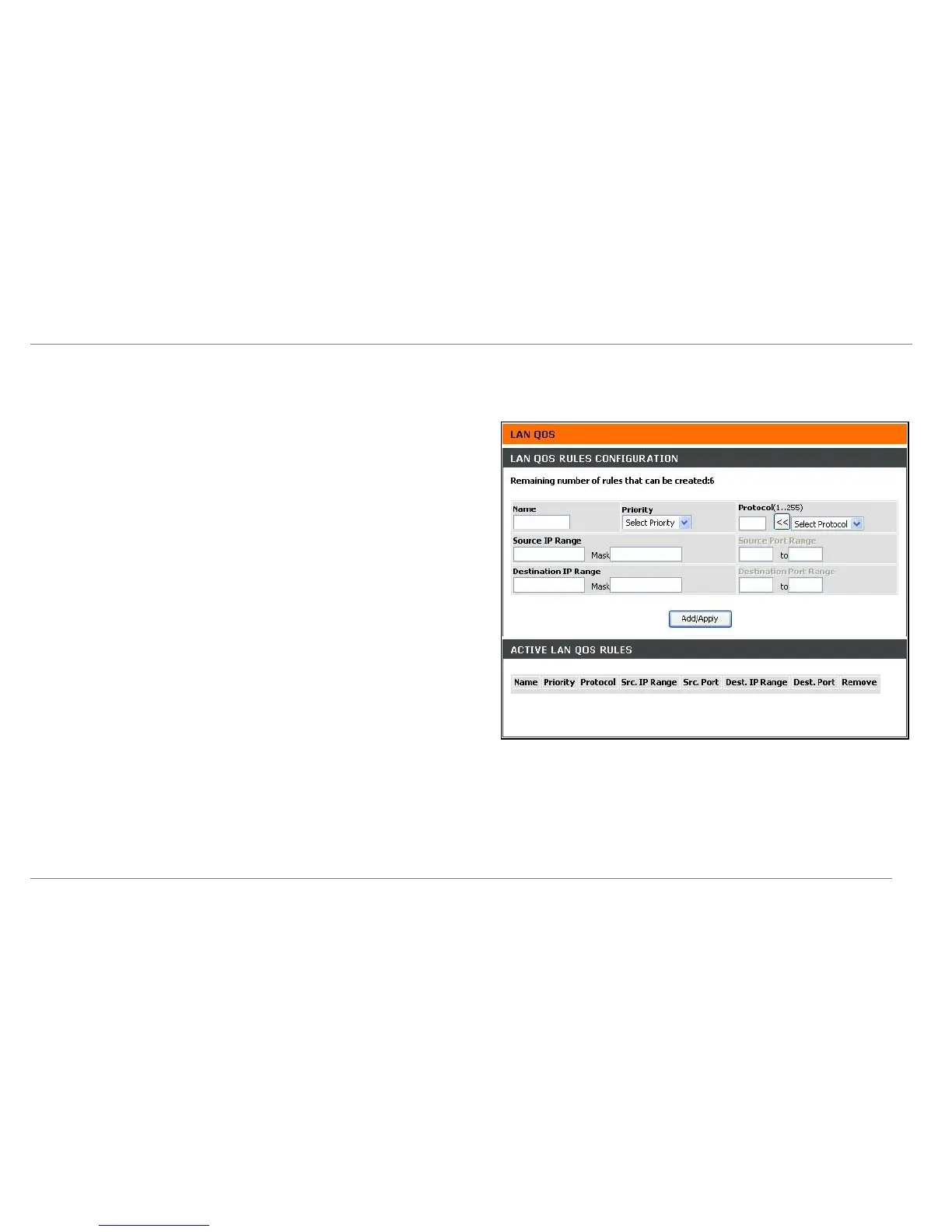

Advanced LAN QoS Setup
Use the LAN QoS Rules Configuration menu to create up to 6 rules to set priority level (low, medium or high) to specified UDP/TCP port or port range; or set priority on specified
IP addresses or subnets for ICMP packets.
.
To create custom QoS rules for the Ethernet LAN, type a Name for the rule, choose the
Priority level from the drop down menu, choose the Protocol from the drop-down menu
and click the << key to place a corresponding index number in the box; or type an index
number in the box.
Type the source port or range and the destination port or range in the spaces provided.
Where appropriate (for example ICMP), type a source and destination IP address or
subnet. Click Add/Apply to create the rule.
