Appendix A – Troubleshooting
D-Link DSL-2730U User Manual
51
Security
To access the Security window, click the Security button in the Advanced Setup directory. The Security button appears after configuring WAN
interface in PPPoA, PPPoE, IPoE or IPoA.
IP Filtering
The IP Filtering button appears when configuring WAN interface in PPPoA, PPPoE, IPoE or IPoA.

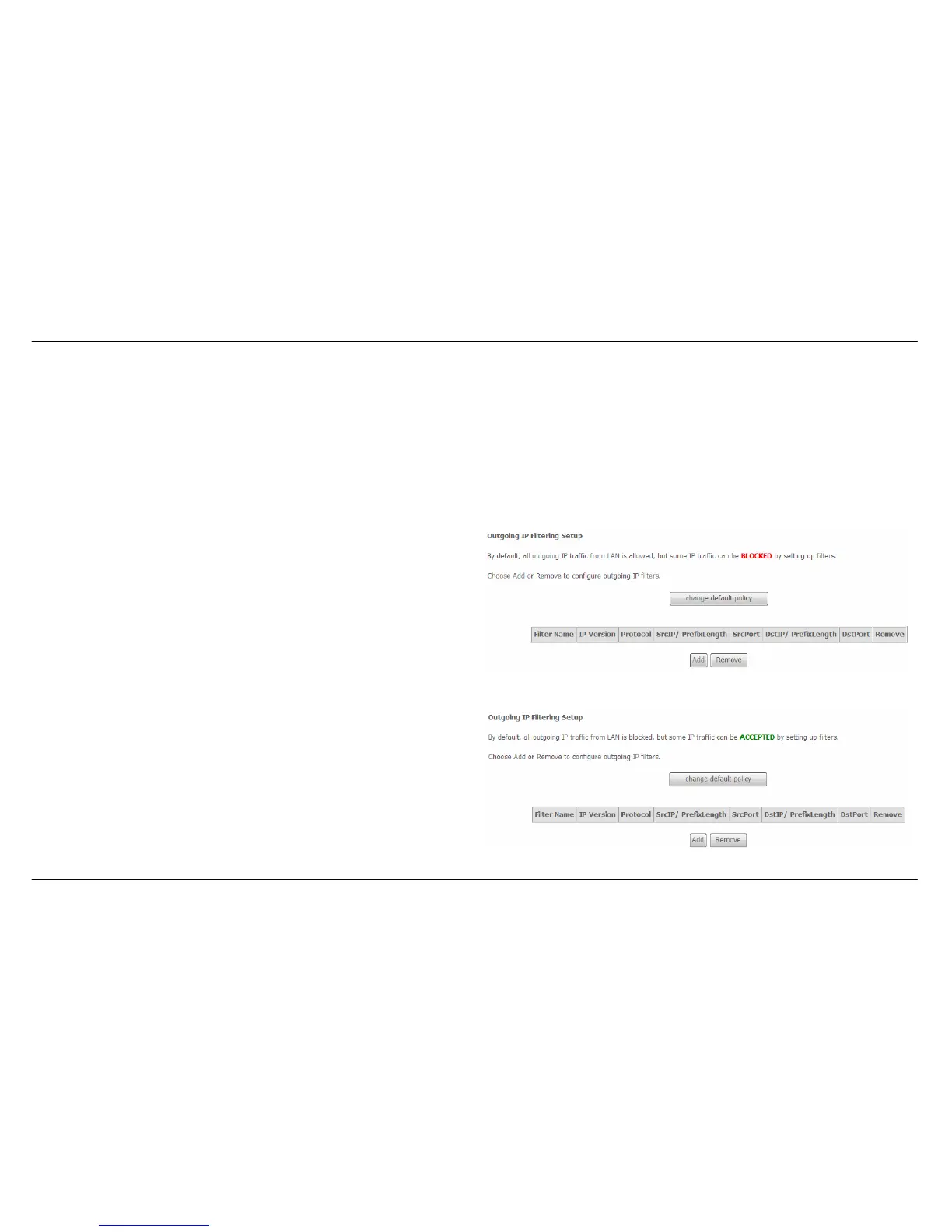

IP Filtering - Outgoing
This window allows you to create a filter rule of Outgoing.
Click change default policy to change the mode of policy.
Now default policy is BLOCK, it means all outgoing IP traffic from LAN is
blocked, but some IP traffic can be accepted by setting up filters.
If you are setting up the outgoing IP filtering, click the Add button.
Now default policy is ACCEPT, it means all outgoing IP traffic from LAN is
allowed, but some IP traffic can be Blocked by setting up filters.
If you are setting up the outgoing IP filtering, click the Add button.

Other manuals for D-Link DSL-2730U

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DSL-2730U and is the answer not in the manual?

D-Link DSL-2730U Specifications

ADSL Standards IconADSL Standards
G.dmt full rate downstreamup to 8 Mbps
G.dmt full rate upstreamup to 1 Mbps
G.lite ADSL downstreamup to 1.5 Mbps
G.lite ADSL upstreamup to 512 Kbps
G.dmt.bis full rate downstreamup to 12 Mbps
G.dmt.bis full rate upstreamup to 12 Mbps
ADSL full rate downstreamup to 24 Mbps
ADSL full rate upstreamup to 1 Mbps
Media Interface IconMedia Interface
ADSL interface connector typeRJ-11
ADSL interface cable type24/26 AWG twisted pair telephone line
LAN interface port typeRJ-45
LAN interface speed10/100BASE-T Ethernet
