D-Link DSL-2730U User Manual

Appendix A – Troubleshooting
D-Link DSL-2730U User Manual
77

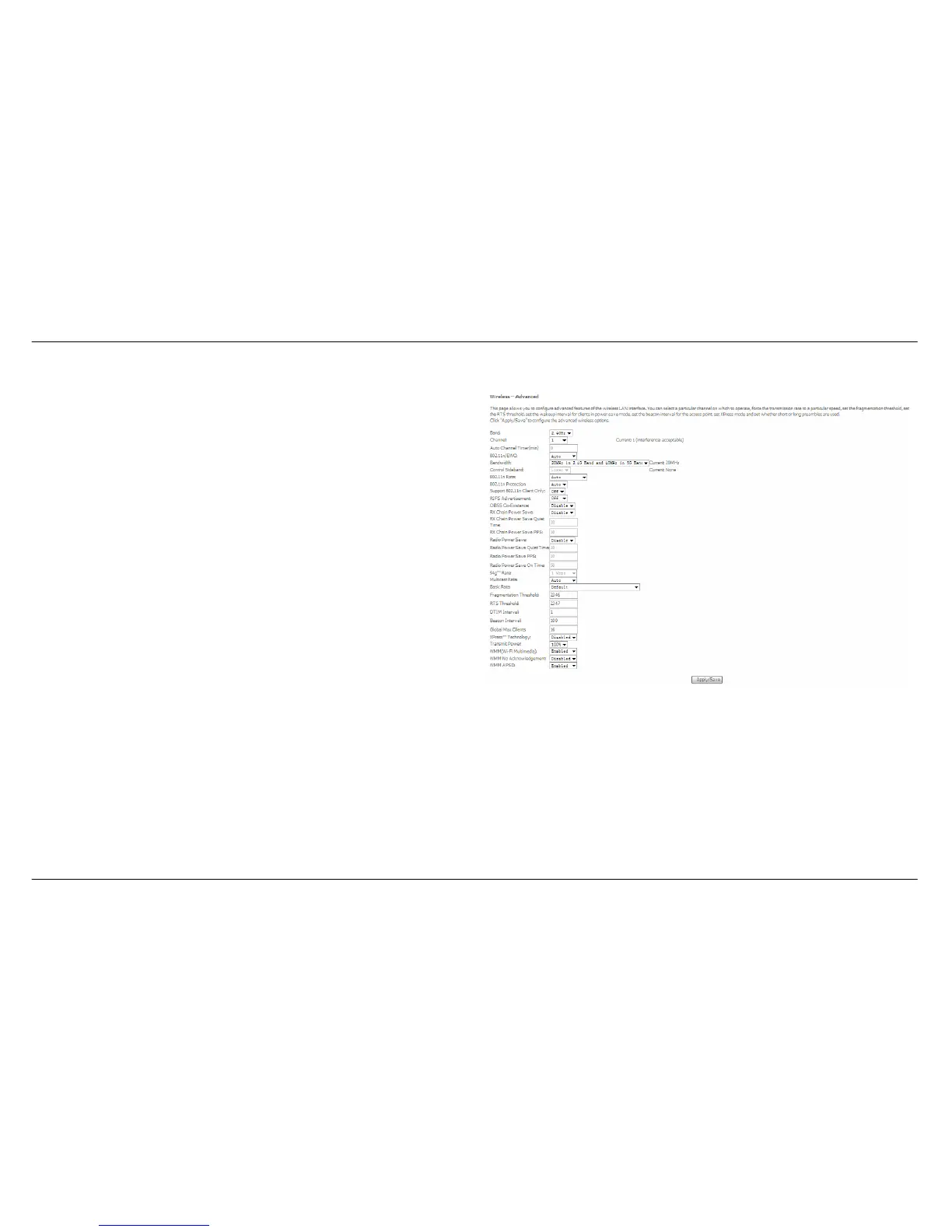

Advanced
This page allows you to configure advanced wireless LAN interface.
Configuring these settings may increase the performance of your router
but if you are not familiar with networking devices and protocols, this
section should be left at its default settings.
Click Apply / Save to save the settings.

D-Link DSL-2730U Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector type	RJ-11
ADSL interface cable type	24/26 AWG twisted pair telephone line
LAN interface port type	RJ-45
LAN interface speed	10/100BASE-T Ethernet
