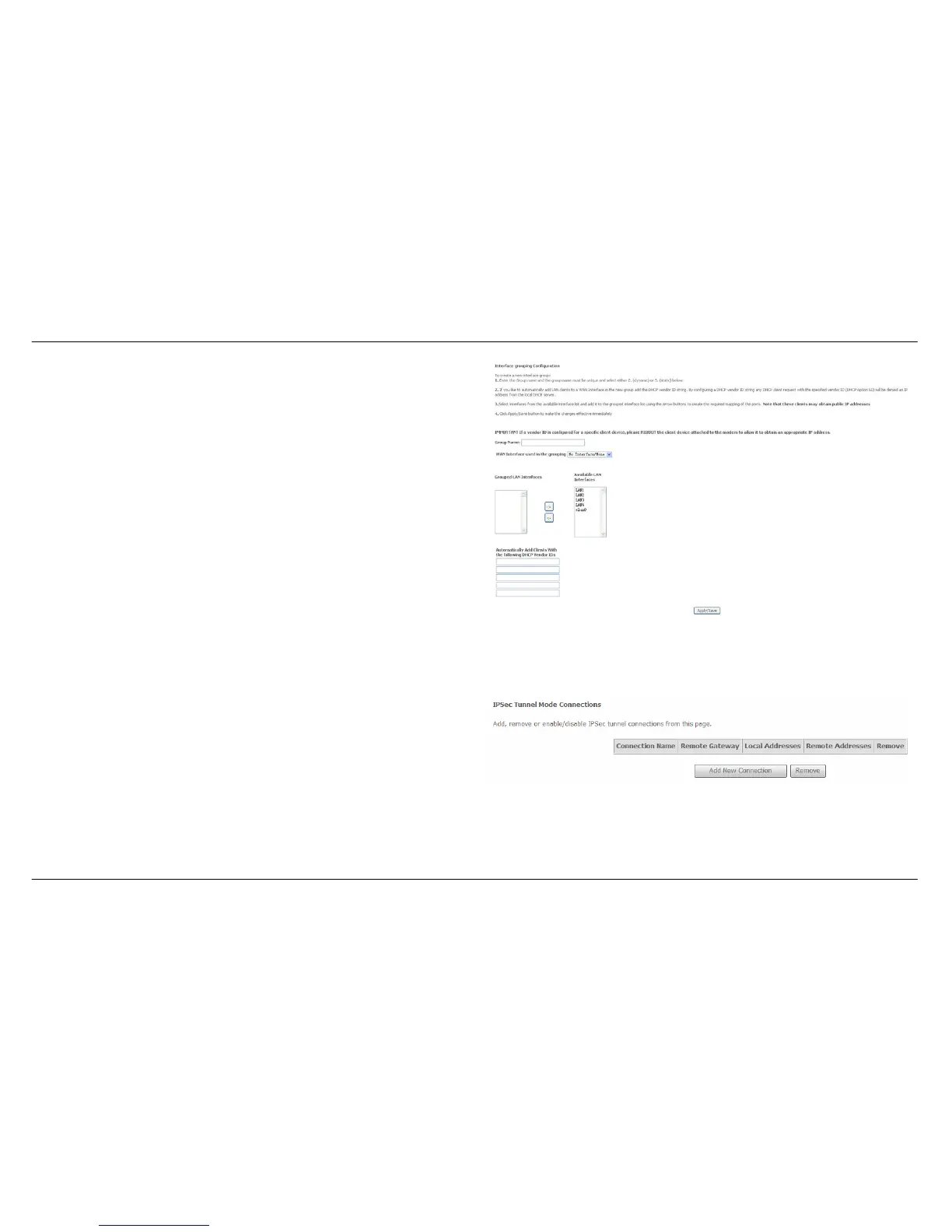

To create a new mapping group, enter Group Name, add interfaces to
Grouped Interfaces.
Click Apply / Save to save the changes.
IPSec
To access the IPSec Tunnel Mode Connections window, click the IPSec button in the Advanced Setup directory.
This window allows you to configure IPSec.
Click Add New Connection to edit IPSec tunnel mode connections from
this page

D-Link DSL-2730U Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector type	RJ-11
ADSL interface cable type	24/26 AWG twisted pair telephone line
LAN interface port type	RJ-45
LAN interface speed	10/100BASE-T Ethernet
