Section 1 - Product Overview
D-Link DSL-2730U User Manual
7

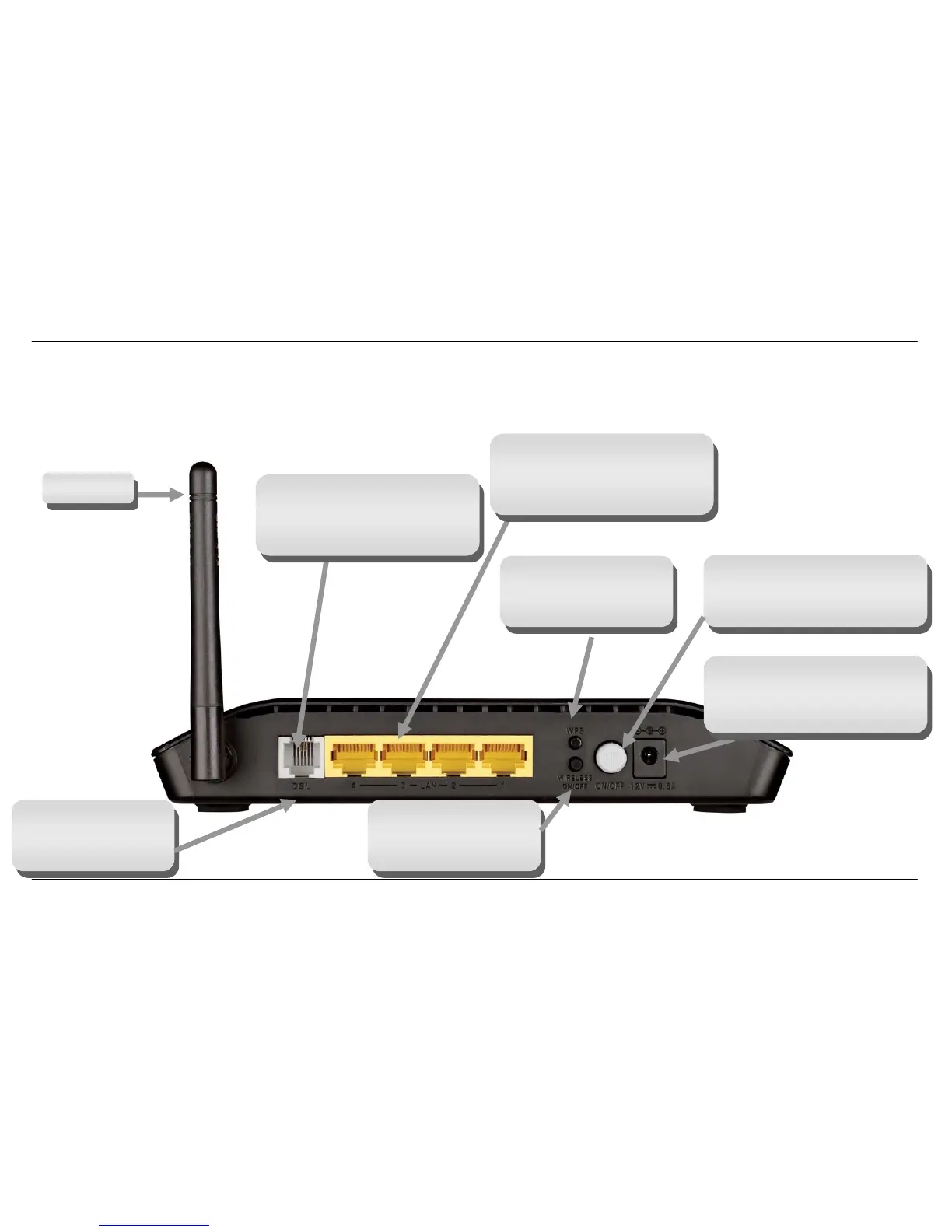

Hardware Overview
Connections
Power Insert
Use the adapter shipped with the
Router to connect to power
source.
Power Button
Push in to power-on the Router.
Push again to power-off the
Router.
Reset Button
On the bottom of the
device，push it to reset
to factory confugration
ADSL Port
Use the ADSL cable to connect
to the your telephone line (RJ-11
port)
Antenna
Ethernet Port
Use the Ethernet port to connect
the Router to a computer or an
Ethernet LAN
Wireless ON/OFF
Button
Push the button to on/off
wireless function
WPS Button
Push the button to on/off
WPS function

D-Link DSL-2730U Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector type	RJ-11
ADSL interface cable type	24/26 AWG twisted pair telephone line
LAN interface port type	RJ-45
LAN interface speed	10/100BASE-T Ethernet
