D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
41

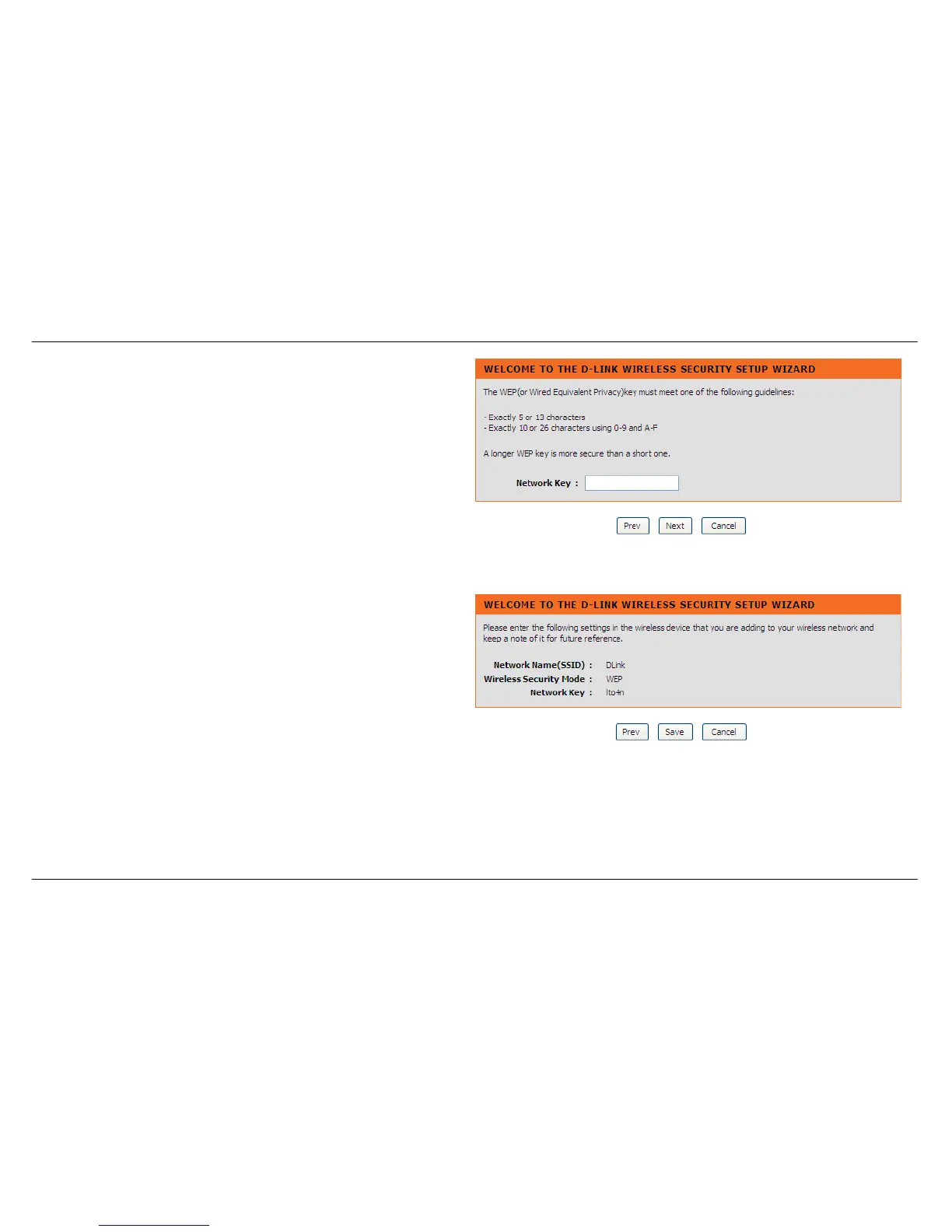

Wireless Connection Setup Wizard (Manually assign a network key
with WEP)
The WEP(or Wired Equivalent Privacy)key must meet one of the
following guidelines:
- Exactly 5 or 13 characters
- Exactly 10 or 26 characters using 0-9 and A-F
A longer WEP key is more secure than a short one.
Click Prev to go back to previous page.
Click Next button to proceed the next page.
Click Cancel button to return to the main menu of Wireless Setup page.
Wireless Connection Setup Wizard (Configuration Information)
This screen shows the information for the SSID, Wireless Security Mode
and the Network key.
Click Prev to go back to previous page.
Click Save button to save the current setting.
Click Cancel button to return to the main menu of Wireless Setup page.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
