D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
42

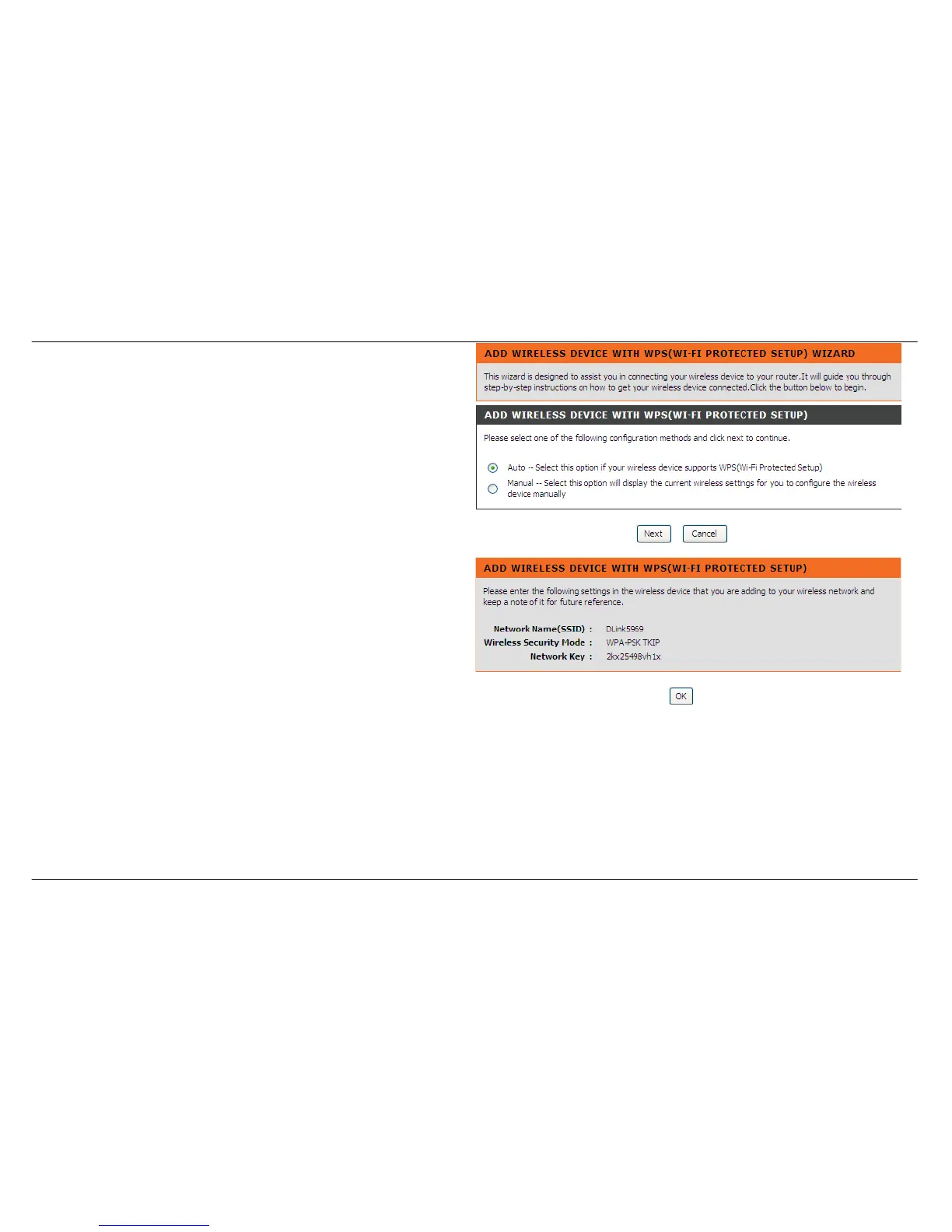

Add Wireless Device with WPS
The wizard shows the option to setup WPS by Auto or Manual.
Auto -- Select this option if your wireless device supports WPS(Wi-Fi
Protected Setup)
Manual -- Select this option will display the current wireless settings for
you to configure the wireless device manually.
Click Next button to proceed the next page.
Click Cancel button to return to the main menu of Wireless Setup page.
Add Wireless Device with WPS (Manually)
This screen shows the information for the SSID, Wireless Security Mode
and the Network key and allow you to modify the current setting. if you
select Auto in the previous page, you won’t see this page and please
refer to next column.
Click OK button to proceed the next page.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
