D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
74

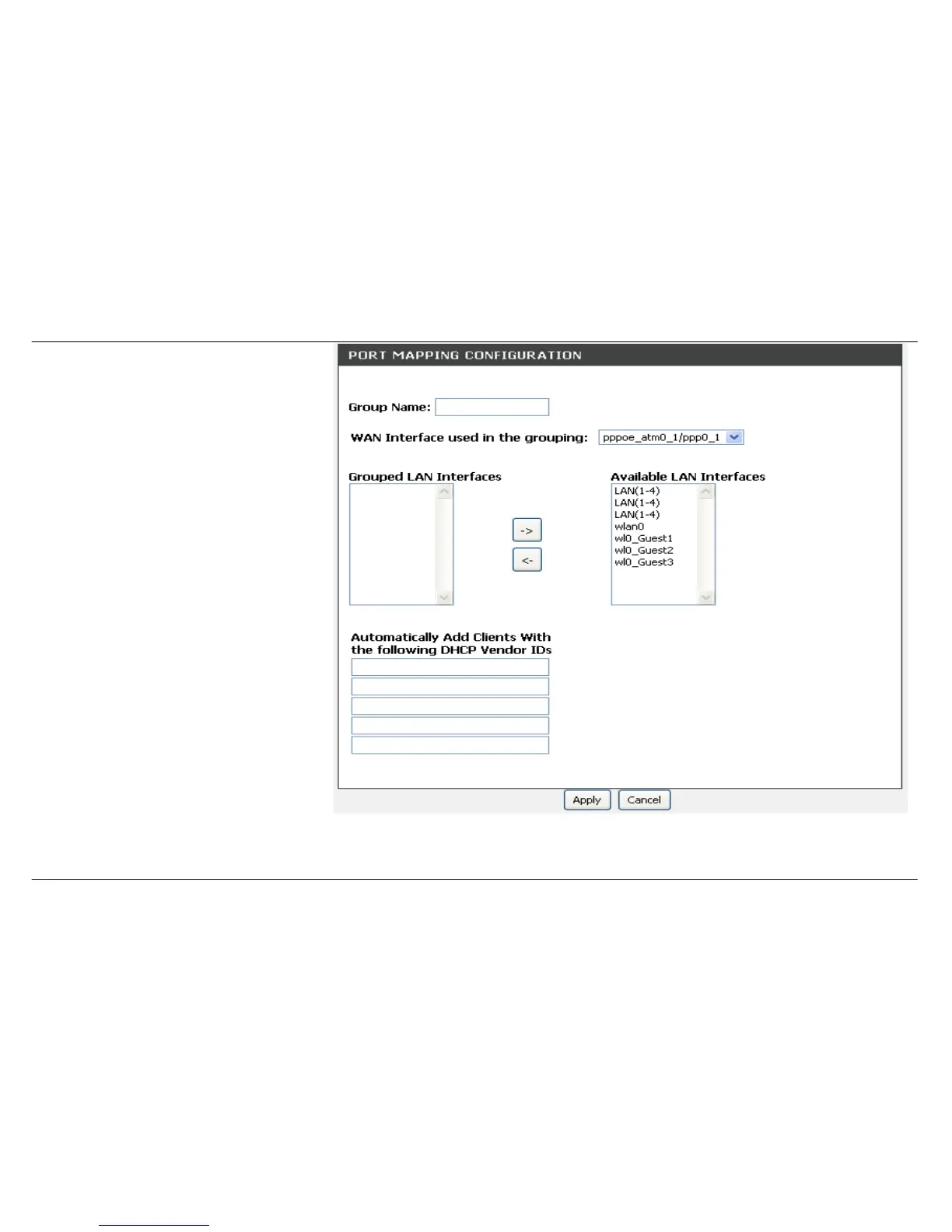

Enter the Group name and select interfaces
from the available interface list and add it to the
grouped interface list using the arrow buttons to
create the required mapping of the ports. The
group name must be unique.
Click the Apply button to set Port Mapping
setting.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
