Three Port Filter
Another style of filter is installed at the same point where the Router connects to the telephone line. Only a single filter
is required. The connection ports are typically labeled as follows:
Line - This port connects to the wall jack.
ADSL – This port connects to the Router.
Phone – This port connects to a telephone or other telephone device.

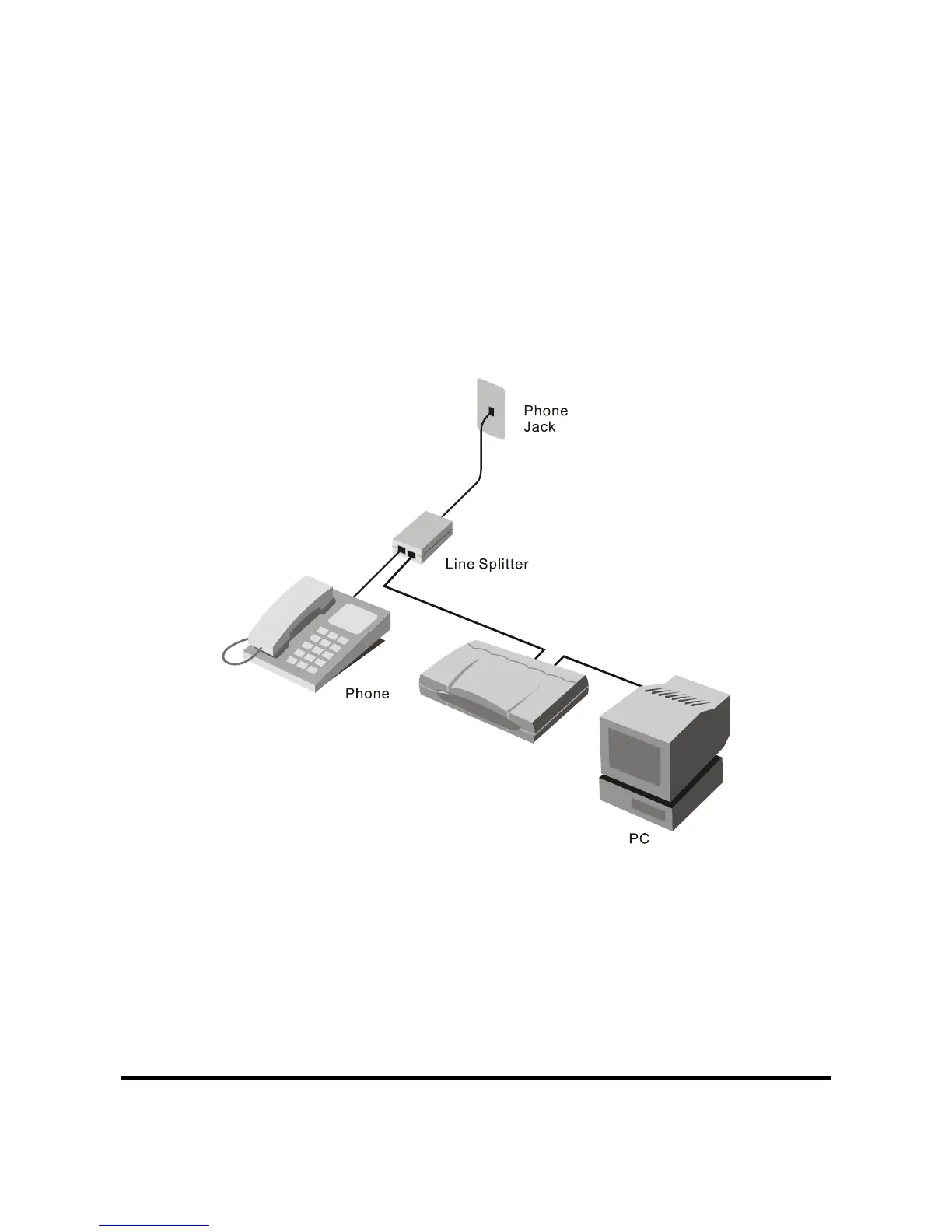

The diagram below illustrates the proper use of this style of filter. Make certain the lines are properly connected. If you
are unable to hear a dial tone with the telephone, check the connections to make sure they are securely attached and
connected to the correct port.
ADSL Device
3-port Filter
