D-Link DSL-2740B User Manual

52

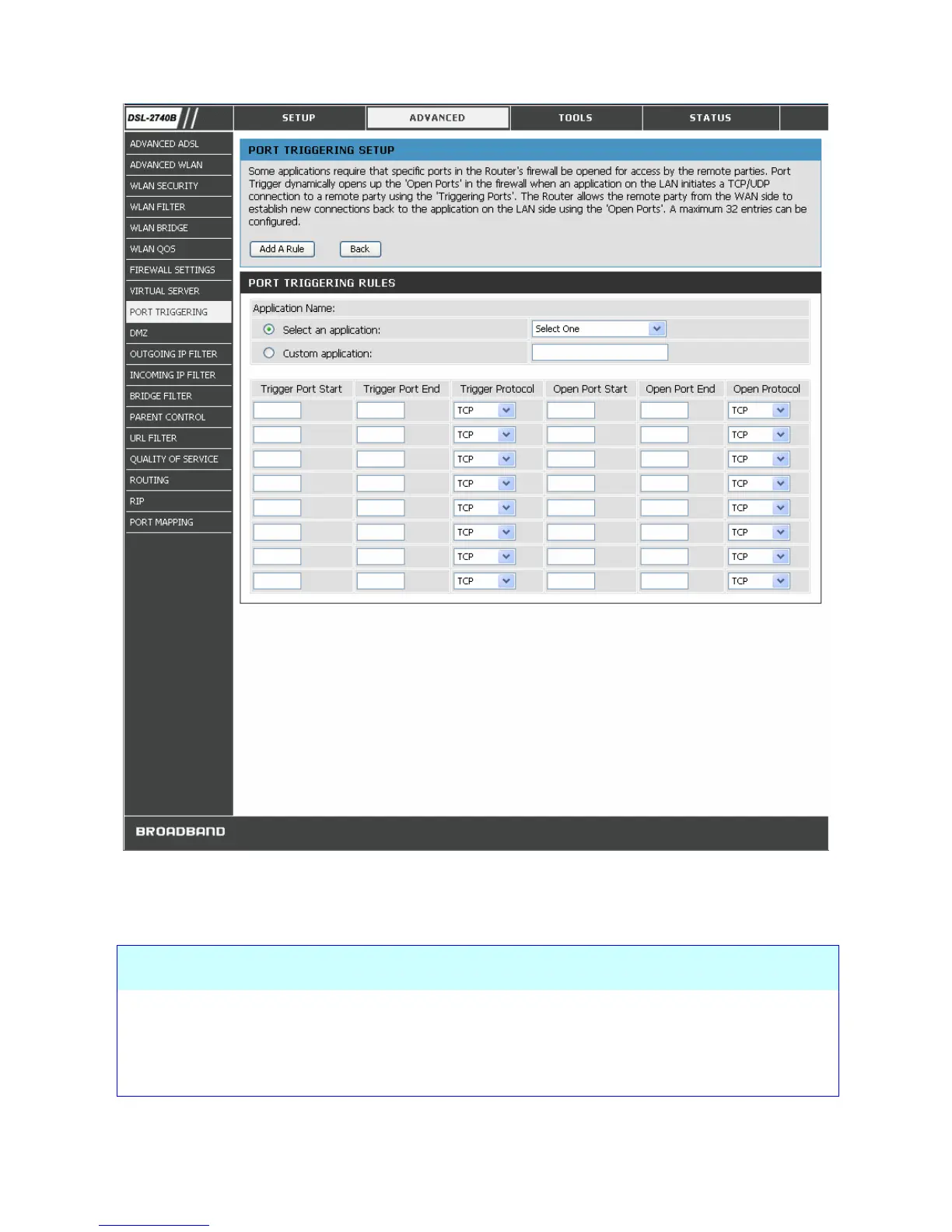

PORT TRIGGERING Window
Configure these parameters for port triggering on the router:
Virtual Server Category Description
Trigger Port Start/End Triggered port number initiated by local host
Trigger Protocol Triggered protocol initiated by local host
Open Port Start/End Opened port number(s) for remote users

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
