D-Link DSL-2740B User Manual

58
1. Click Chnage Policy button to change bridge filter policy between Forwarded and Blocked.
2. Click the Add A Rule button to enter your bridge filter configuration window.
3. Select Protocol Type from the drop-down list, or leave it blank for all protocols.
4. Enter the Destination/Source MAC address of the specific devices.
5. Select Frame Direction from the drop-down list. LANÙWAN: Both directions. WAN=>LAN: From WAN
to LAN only. LAN=>WAN: From LAN to WAN only.
6. Select the WAN interfaces (Bridge only).
7. Click Save Settings button to apply filter rule.

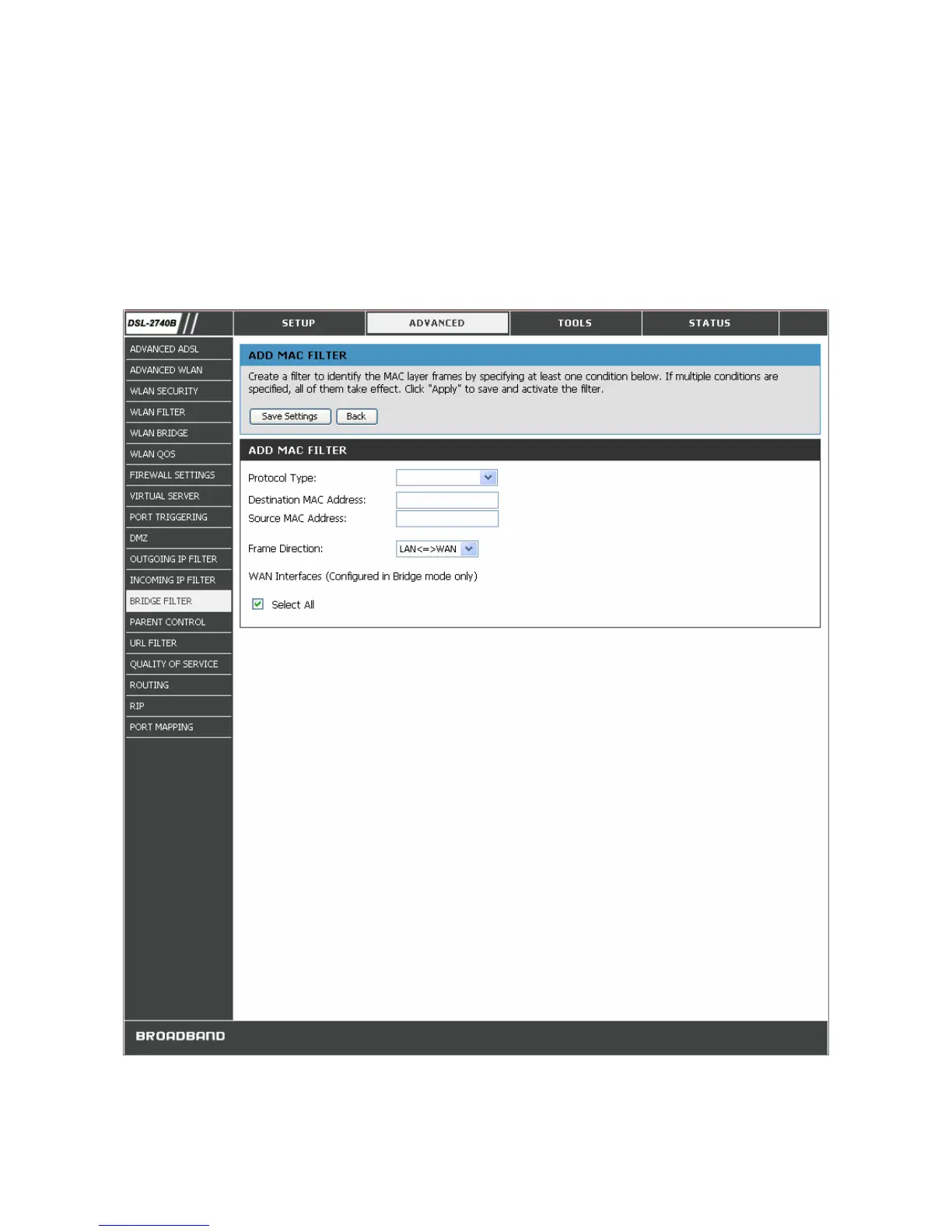

BRIDGE FILTER Window

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
