D-Link DWL-6610AP User Manual

MAC Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 365
D-Link UWS User Manual
MAC ACL Configuration
The MAC ACL Configuration page allows network administrators to define a MAC-based ACL.
To display the MAC ACL Configuration page, click LAN > QoS > Access Control Lists > MAC Access Control Lists
> Configuration in the navigation tree.

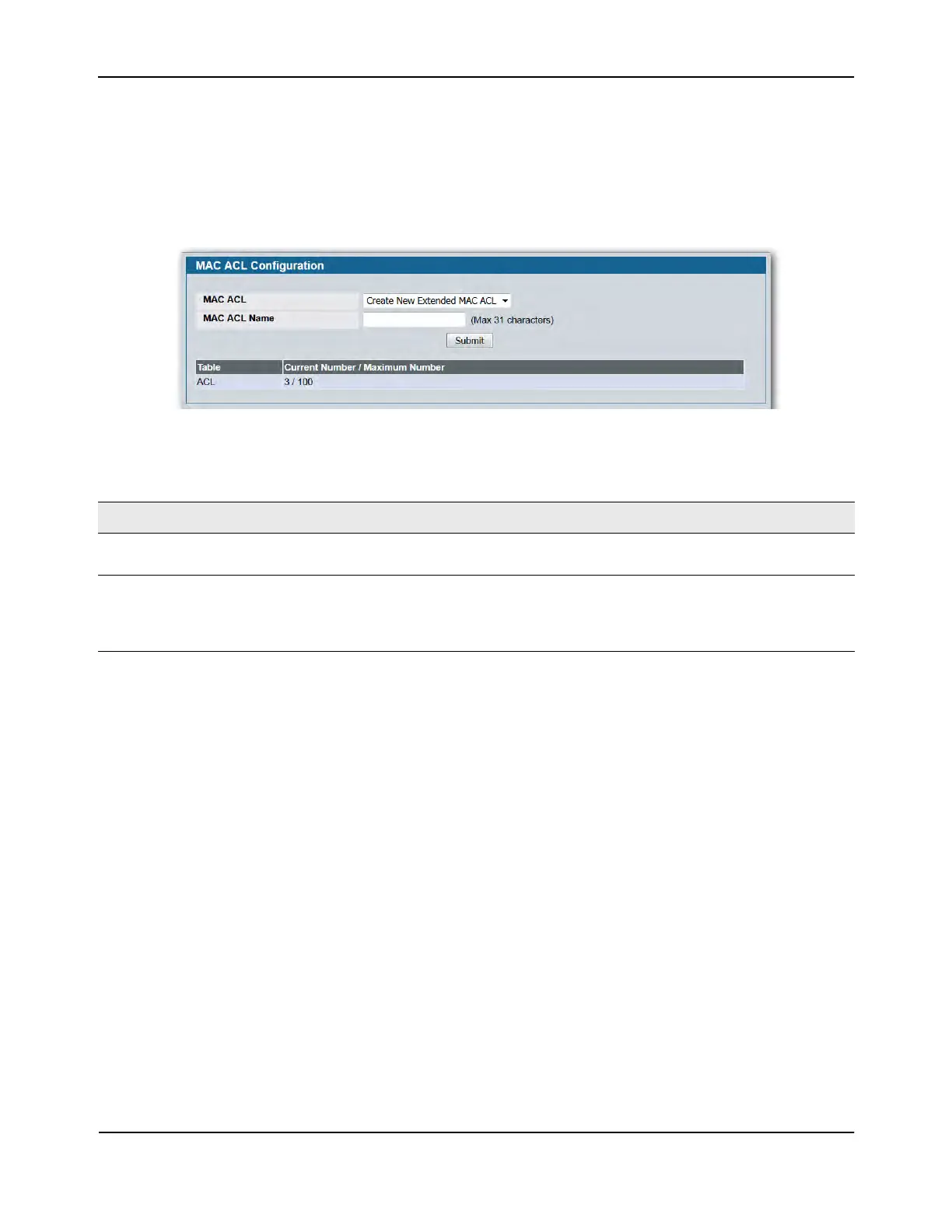

Figure 244: MAC ACL Configuration
The ACL Table at the bottom of the page shows the current size of the ACL table versus the maximum size of
the ACL table. The current size is equal to the number of configured IPv4 ACLs plus the number of configured
MAC ACLs. The maximum size is 100.
• To add a MAC ACL, select Create New Extended MAC ACL from the MAC ACL menu, enter a name for the
ACL in the appropriate field, and then click Submit.
• To rename a MAC ACL, select the ACL name from the MAC ACL menu. Enter a new name for the ACL in
the appropriate field, and then click Rename. The Rename button only appears if a configured MAC ACL is
selected.
• To delete a MAC ACL, select the ACL name from the MAC ACL menu, and then click Delete. The Delete
button only appears if a configured MAC ACL is selected.
Table 214: MAC ACL Configuration Fields
Field Description
MAC ACL The options in the dropdown menu allow you to create a new MAC ACL or
select an existing MAC ACL that you want to rename.
MAC ACL Name Enter a name for the MAC ACL. The name string may include alphabetic,
numeric, dash, underscore, or space characters only. The name must start
with an alphabetic character. This field displays the name of the currently
selected MAC ACL if the ACL has already been created.

D-Link DWL-6610AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Certification	CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC
Housing material	Plastic
Antenna gain level (max)	6.5 dBi
Security algorithms	AES, HTTPS, SSH, TKIP, WPA, WPA2
Output current	2 A
Output voltage	12 V
Power consumption (max)	16.6 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	1
Package depth	235 mm
Package width	243 mm
Package height	90 mm
Package weight	1065 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1235 mm
Pallet height (sea)	2060 mm
Pallet gross weight (air)	200628 g
Pallet gross weight (sea)	332474 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	252 pc(s)
Shipping (inner) case width	343 mm
Shipping (inner) case height	275 mm
Shipping (inner) case length	565 mm
Shipping (inner) case weight	7297 g
Shipping (inner) case net weight	6390 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	42 pc(s)
Quantity per shipping (inner) case	6 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	158.8 mm
Height	69.4 mm
Weight	500 g
