D-Link DWL-6610AP User Manual

Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 663
D-Link UWS User Manual
The following table shows the fields available on the Client Triangulation Summary page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Detailed AP Triangulation Status
Use the Client Triangulation Status page to view detailed triangulation and location information about a
detected or managed wireless client. To view detailed triangulation information for a specific client, select its
MAC address from the available menu.

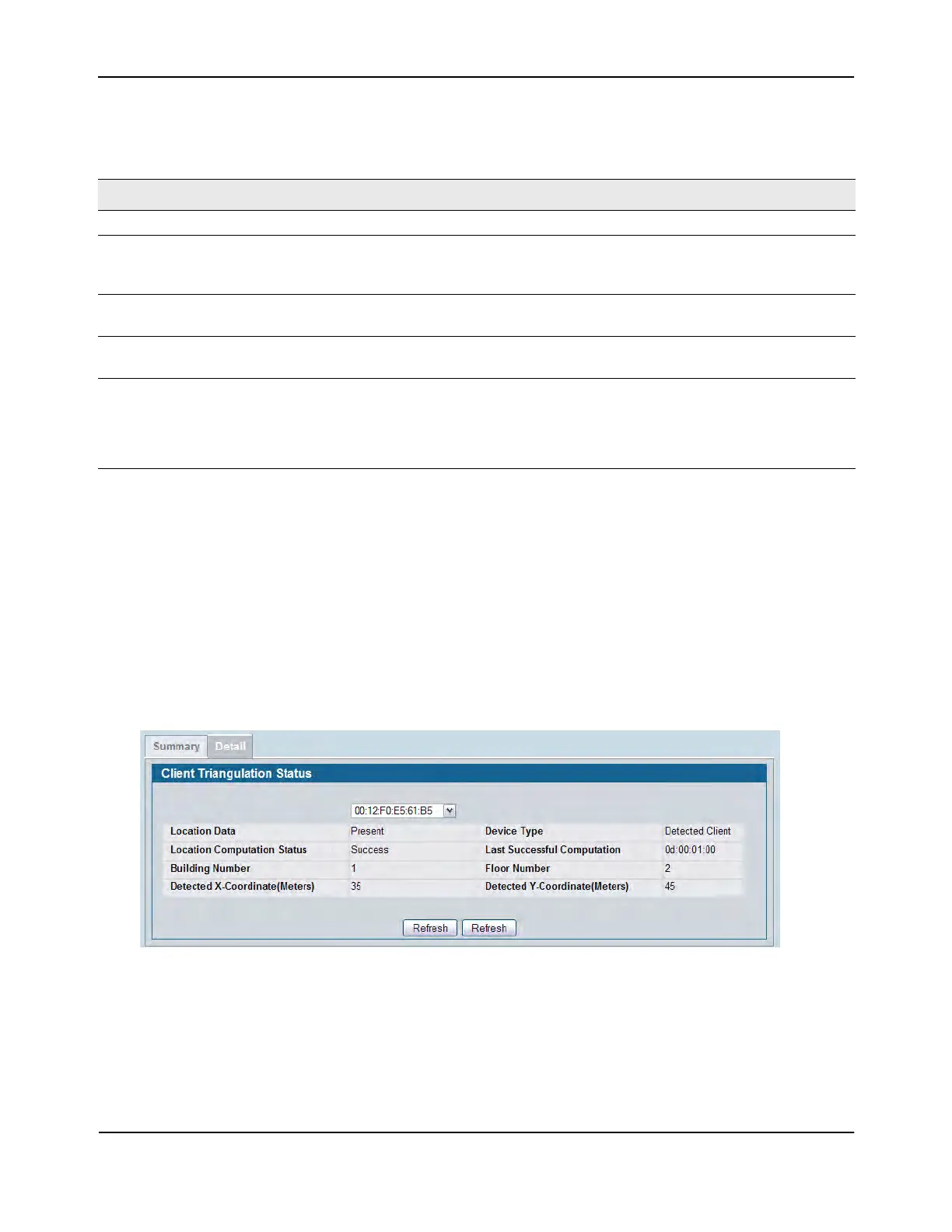

Figure 418: Detailed Client Triangulation Status
Table 383: Client Triangulation Summary
Field Description
Device MAC Address MAC address of the wireless client.
Device Type Indicates whether the device is an Associated Client or a Detected
Client. If the type of device changes, the change might not be reflected
until the device location is next computed.
Building/Floor Number Number that identifies the building and floor where the device is
detected. A value of 0 indicates that no data is available.
Detected XY Coordinate Identifies the X and Y axis offsets of the wireless client from some
arbitrary 0,0 point on the building floor.
Status The status of the last iteration of the location computation algorithm:
• Not Executed
• Success
•Failure

D-Link DWL-6610AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Certification	CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC
Housing material	Plastic
Antenna gain level (max)	6.5 dBi
Security algorithms	AES, HTTPS, SSH, TKIP, WPA, WPA2
Output current	2 A
Output voltage	12 V
Power consumption (max)	16.6 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	1
Package depth	235 mm
Package width	243 mm
Package height	90 mm
Package weight	1065 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1235 mm
Pallet height (sea)	2060 mm
Pallet gross weight (air)	200628 g
Pallet gross weight (sea)	332474 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	252 pc(s)
Shipping (inner) case width	343 mm
Shipping (inner) case height	275 mm
Shipping (inner) case length	565 mm
Shipping (inner) case weight	7297 g
Shipping (inner) case net weight	6390 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	42 pc(s)
Quantity per shipping (inner) case	6 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	158.8 mm
Height	69.4 mm
Weight	500 g
