Viewing Associated Client Statistics
A wireless client can roam among APs without interruption in WLAN service. The DWS-4000 Series switch
tracks the traffic the client sends and receives during the entire wireless session while the client roams among
APs that the switch manages. The switch stores statistics about client traffic while it is associated with a single
AP as well as throughout the roaming session.
The statistics on the WLAN > Monitoring > Client > Associated Clients > Statistics > Association Summary
displays the Associated Client Statistics page. This page shows information about the traffic a wireless client
receives and transmits while it is associated with a single AP.

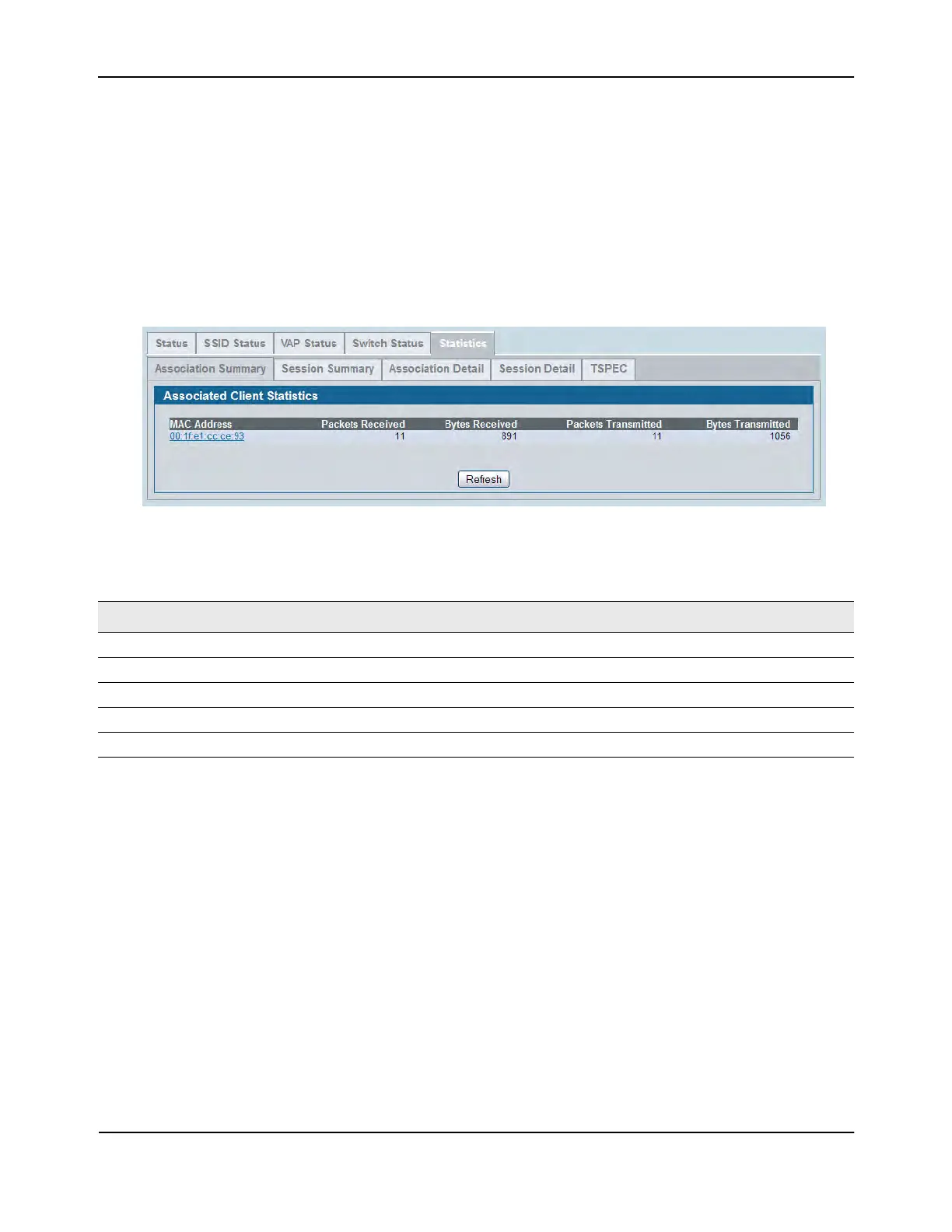

Figure 334: Associated Client Association Summary Statistics
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 302: Associated Client Association Summary Statistics
Field Description
MAC Address The Ethernet address of the client station.
Packets Received Packets received from the client station.
Bytes Received Bytes received from the client station.
Packets Transmitted Packets transmitted to the client station.
Bytes Transmitted Bytes transmitted to the client station.

D-Link DWL-6610AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Certification	CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC
Housing material	Plastic
Antenna gain level (max)	6.5 dBi
Security algorithms	AES, HTTPS, SSH, TKIP, WPA, WPA2
Output current	2 A
Output voltage	12 V
Power consumption (max)	16.6 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	1
Package depth	235 mm
Package width	243 mm
Package height	90 mm
Package weight	1065 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1235 mm
Pallet height (sea)	2060 mm
Pallet gross weight (air)	200628 g
Pallet gross weight (sea)	332474 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	252 pc(s)
Shipping (inner) case width	343 mm
Shipping (inner) case height	275 mm
Shipping (inner) case length	565 mm
Shipping (inner) case weight	7297 g
Shipping (inner) case net weight	6390 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	42 pc(s)
Quantity per shipping (inner) case	6 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	158.8 mm
Height	69.4 mm
Weight	500 g
