D-Link DWR-953 User Manual

DWR-953 Wireless AC1200 4G LTE Router
with Gigabit Ethernet Ports
User Manual
Configuring via Web-based Interface
-
On the System / Buttons Configuration page, you can edit or add commands for the RESET,
WLAN, and WPS hardware buttons.

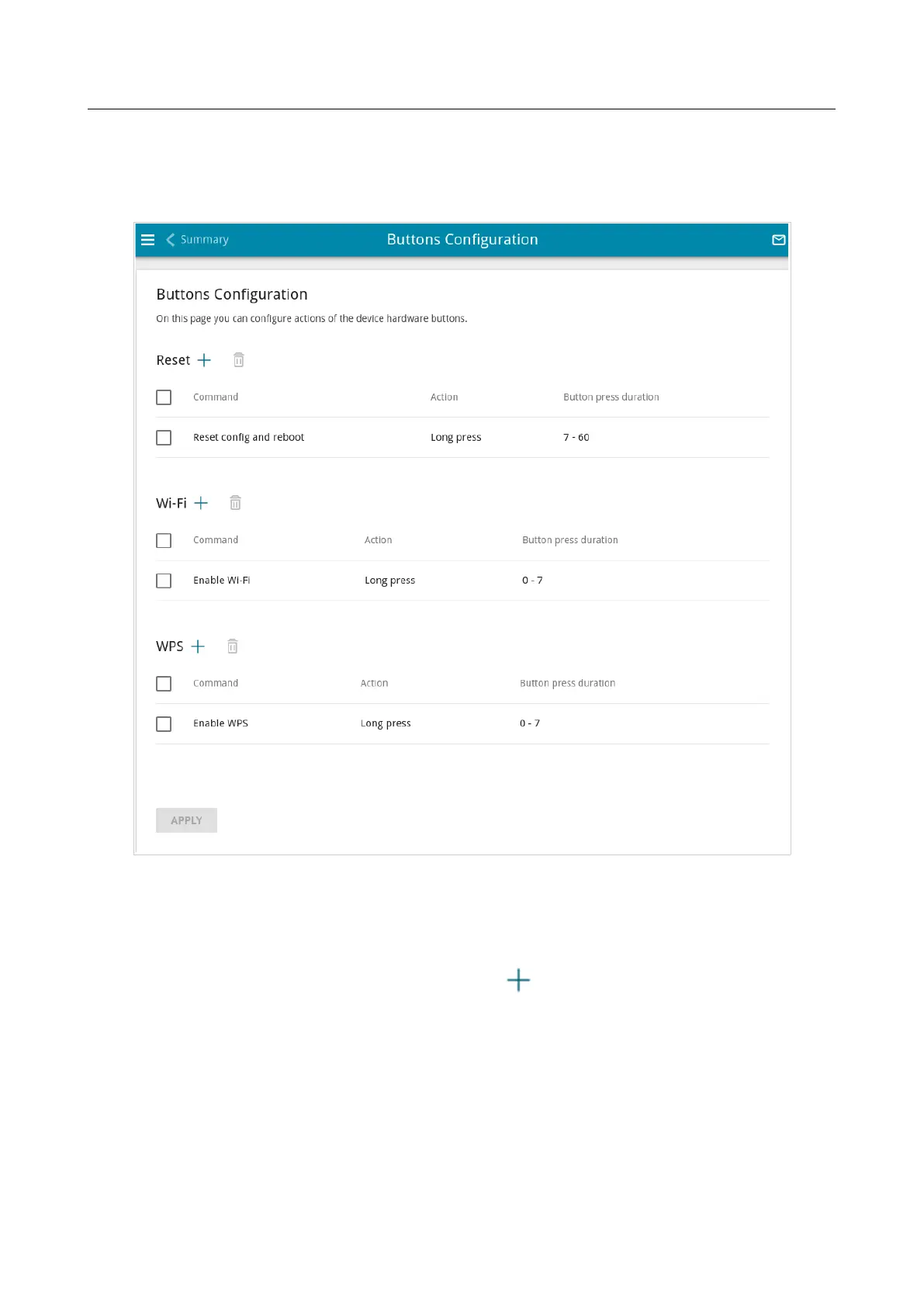

Figure 174. The System / Buttons Configuration page.
The page displays commands assigned to the buttons by default (for the description of the buttons
actions with the commands assigned by default, see the Product Appearance section, page 12). You
can edit or delete them.
To add a command for a button, click the ADD button ( ) in the relevant section.
Page 230 of 264

D-Link DWR-953 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
WAN connection type	RJ-45
3G/4G USB modem compatibility	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	1200 Mbit/s
VPN support	L2TP/PPTP/IPSec
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE
Antennas quantity	2
Firewall security	SPI, NAT
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
Product type	Tabletop router
Product color	Black
LED indicators	Activity, LAN, Power, WAN
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE
Ethernet LAN (RJ-45) ports	4
Power source type	AC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	170 mm
Height	80 mm
Weight	400 g
