6D-Link VTA User Manual
Chapter 2 - Installation

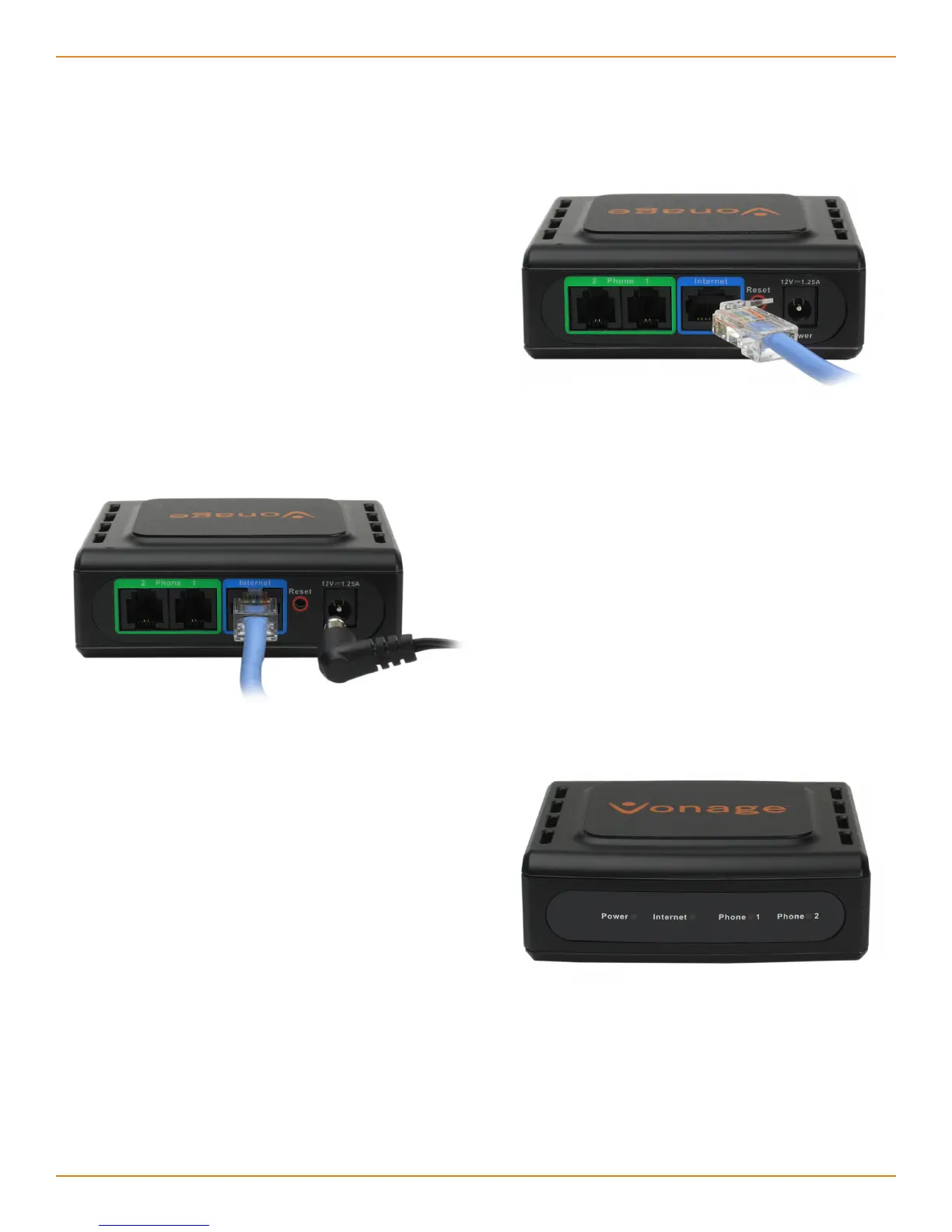

Install the Hardware
Verify the status lights on the unit.
The Power, Phone 1, and Internet
status lights should be solid green.
The Phone 2 light will be a solid
green if you have a second Vonage
line. (The Internet light will blink
whenever there is data activity.)
1
2
3
Connect the blue Ethernet cable into
the blue port labeled Internet on
the back of the telephone adapter.
Connect the other end to one of your
router’s Ethernet ports.
Connect the included power supply
to the Power port of the Telephone
Adapter. The Power LED will go through
a blink sequence before turning solid
green.
Warning: Using a power supply with a
different voltage will cause damage to
the device and will void the warranty.
