xStack® DES-3200 Series Layer 2 Ethernet Managed Switch Hardware Installation Guide

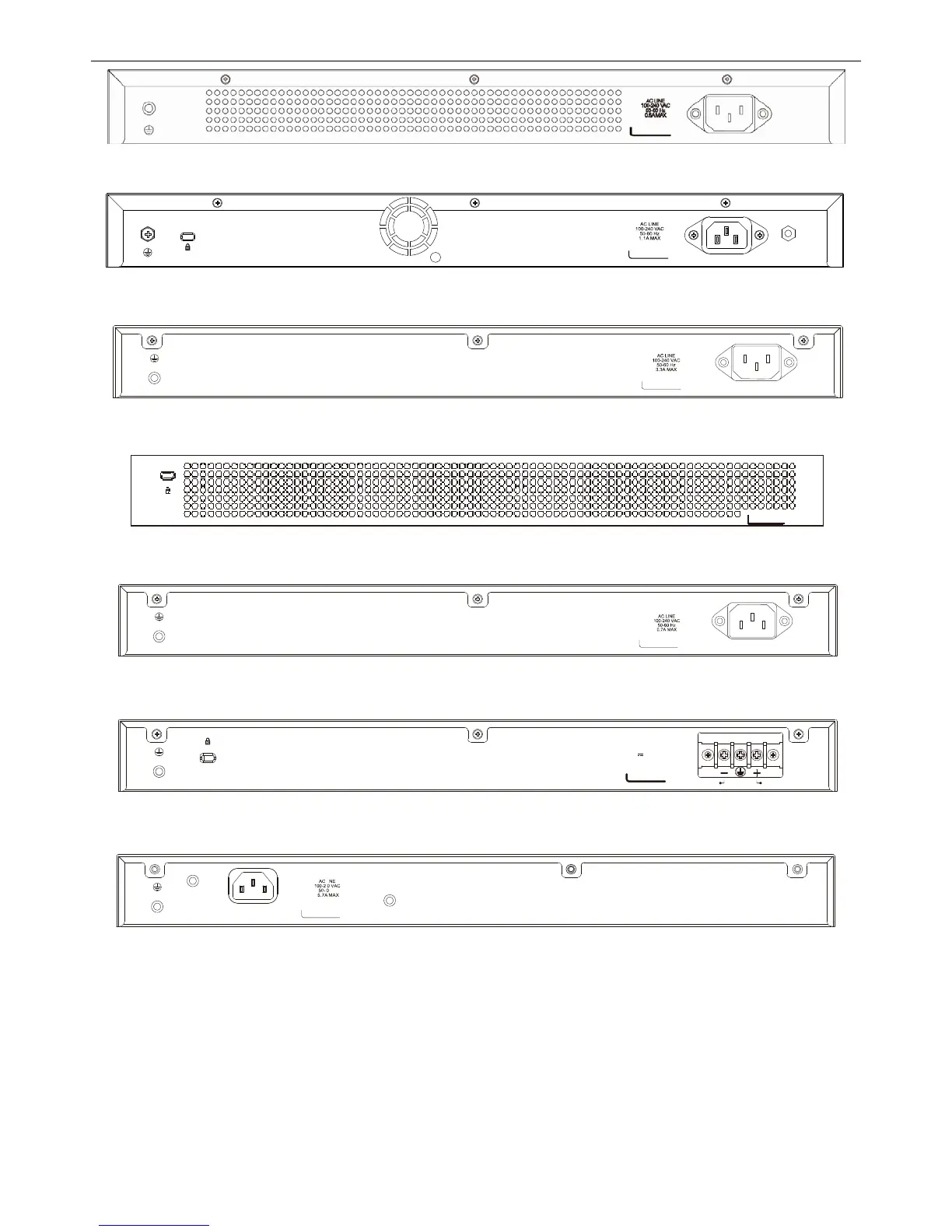

Figure 1-33. Rear panel view of the DES-3200-28
Figure 1-34. Rear panel view of the DES-3200-28F
Figure 1-35. Rear panel view of the DES-3200-28P
Figure 1-36. Rear panel view of the DES-3200-28/ME
Figure 1-37. Rear panel view of the DES-3200-52
-48V -48VRET
-48V 1
.
1AMAX
Figure 1-38. Rear panel view of the DES-3200-52-DC
Figure 1-39. Rear panel view of the DES-3200-52P
12
