D-Link xStack DES-3200 Series Installation Guide

xStack® DES-3200 Series Layer 2 Ethernet Managed Switch Hardware Installation Guide

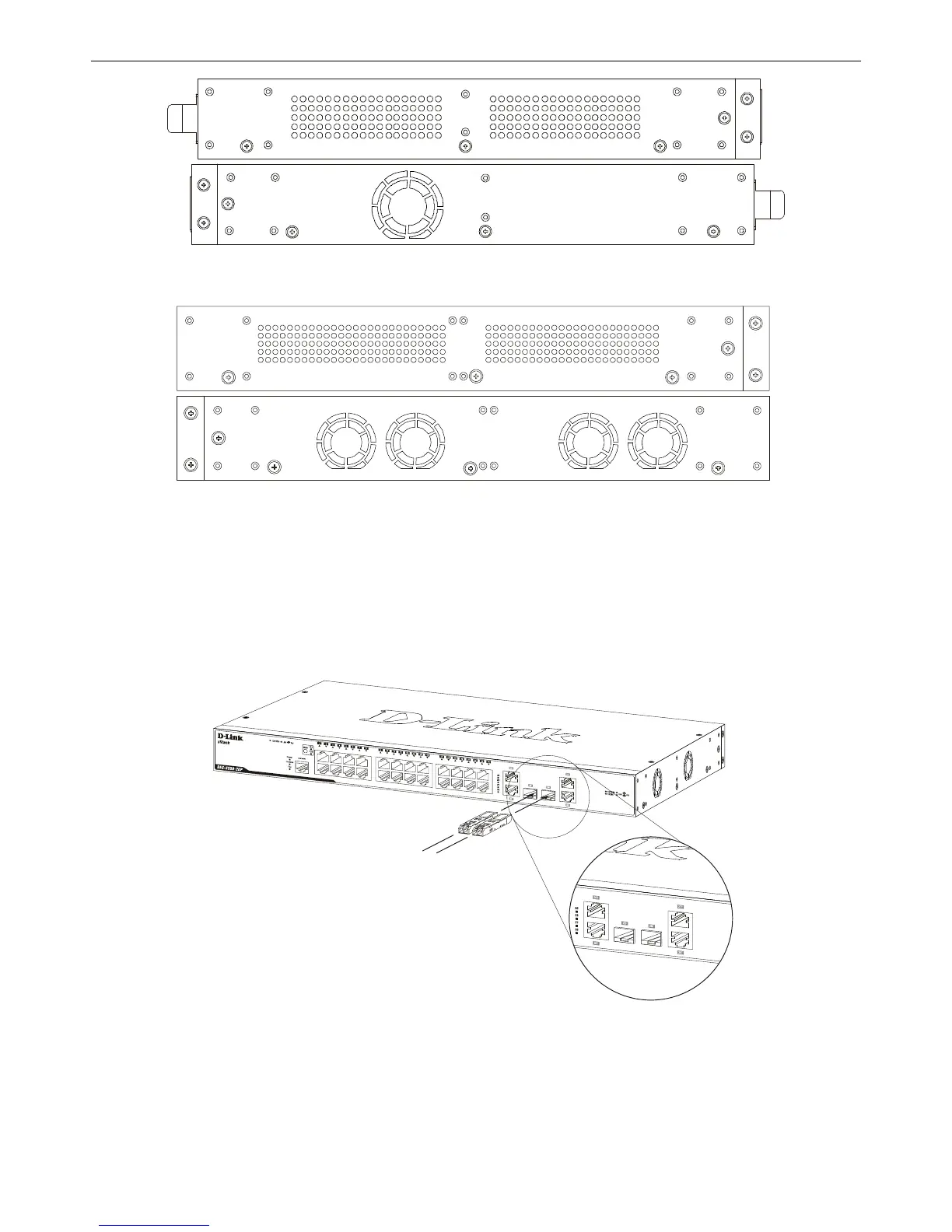

Figure 1-51. Side panels of the DES-3200-52-DC
Figure 1-52. Side panels of the DES-3200-52P
Gigabit Combo Ports
The DES-3200 Series features either two or four Gigabit Ethernet Combo ports. These ports are 1000BASE-T copper
ports (optional) and Small Form Factor Portable (SFP) ports (optional). See the diagram below to view the two SFP
port modules being plugged into the Switch. Please note that although these two front panel modules can be used
simultaneously, the ports must be different. The SFP port will always have the highest priority.
Figure 1-53. Inserting the SFP modules into the Switch
16

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
