xStack® DES-3200 Series Layer 2 Ethernet Managed Switch Hardware Installation Guide
Switch to Hub or Switch
These connections can be accomplished in a number of ways using a normal cable.
 A 10BASE-T hub or switch can be connected to the Switch via a twisted-pair Category 3, 4, 5 or 5e UTP/STP
cable.
 A 100BASE-TX hub or switch can be connected to the Switch via a twisted-pair Category 5 or 5e UTP/STP
cable.
 A 1000BASE-T switch can be connected to the Switch via a twisted pair Category 5e UTP/STP cable.
 A switch supporting a fiber-optic uplink can be connected to the Switch’s SFP ports via fiber-optic cabling.

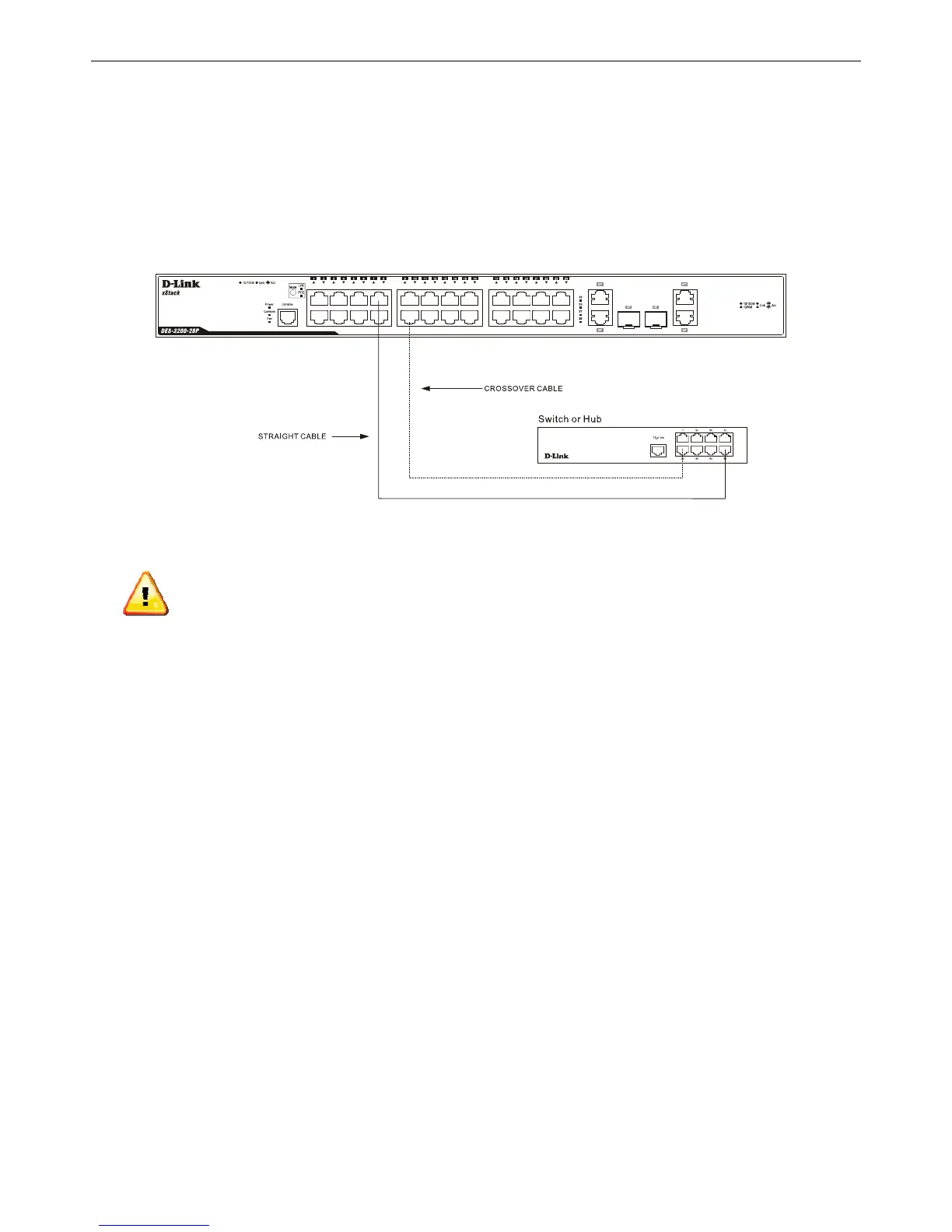

Figure 3-3. Switch connected to a normal (non-Uplink) port on a hub or switch using a straight or crossover cable
NOTICE: When the SFP transceiver acquires a link, the associated integrated 10/100/1000BASE-T
port is disabled.
24

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
