xStack® DES-3200 Series Layer 2 Ethernet Managed Switch Hardware Installation Guide
Chapter 3 Connecting the Switch
Switch to End Node
Switch to Hub or Switch
NOTE: All 10/100/1000Mbps NWay Ethernet ports can support both MDI-II and MDI-X
connections.
Switch to End Node
End node is a generic name for edge networking devices that are connected to the Switch. Typical examples of end
nodes are Personal Computers (PCs), Notebooks, Access Points, Print Servers, VoIP Phones and more. Each end
node is outfitted with a 10/100Mbps or 10/100/1000Mbps, RJ-45, networking port. Normally, end nodes connect to the
Switch by using a standard twisted-pair, UTP/STP, network cable. After a successful connection, the corresponding
Link/Act light will illuminate and blink to indicate that packet activity is taking place on that port.

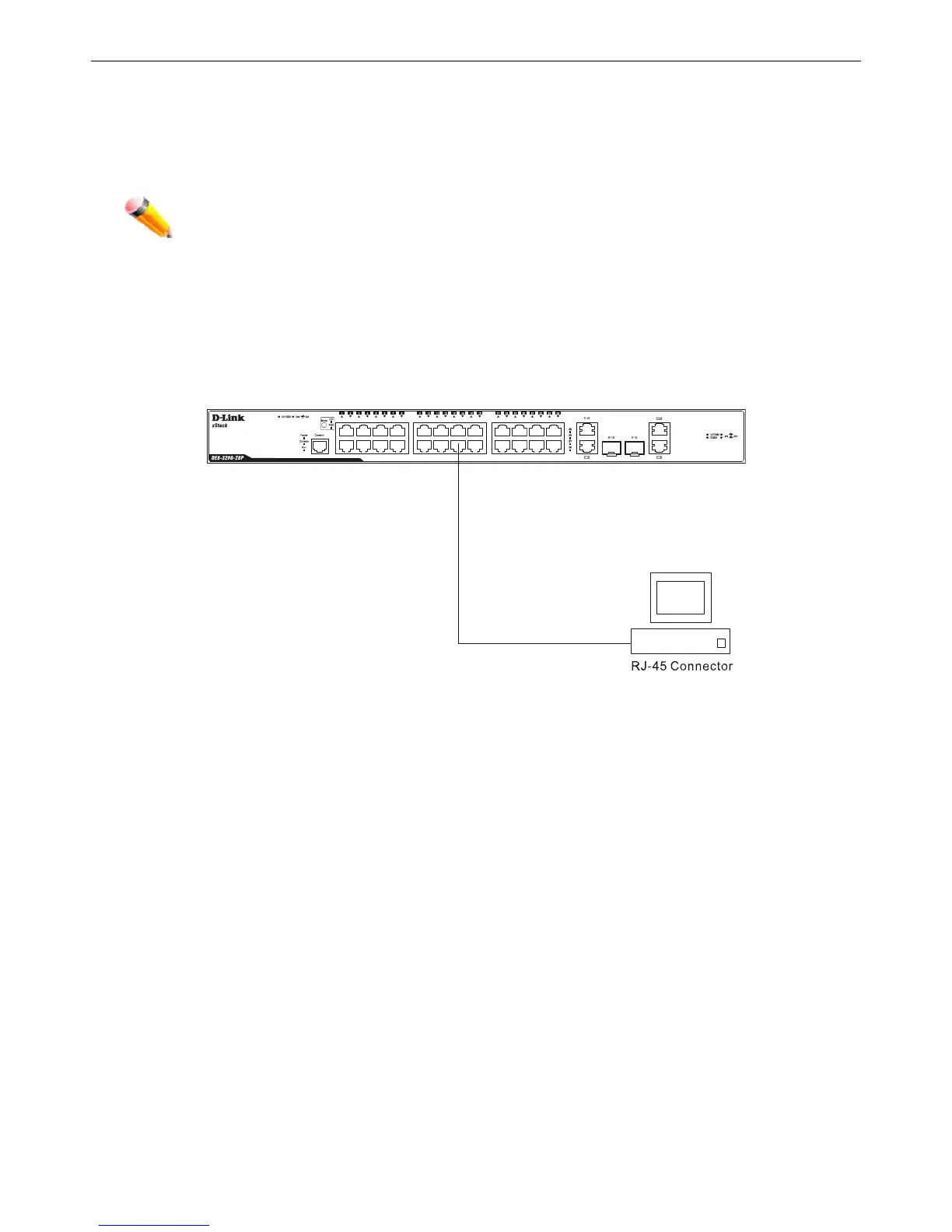

Figure 3-1. Switch connected to an end node
The Link/Act LEDs for each UTP port will light when the link is valid. A blinking LED indicates packet activity on that
port.
23

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
