xStack® DES-3200 Series Layer 2 Ethernet Managed Switch Hardware Installation Guide
 Sixteen 10/10
0Mbps Copper Ports
 One Combo 10/100/1000Mbps Copper / 100/1000Mbps SFP port
 One 100/1000Mbps SFP Port
 One RJ-45 Console Port
 LEDs for Power, Console, Link/Act for port 1 to 16, and Link/Act/Speed for port 17 and 18

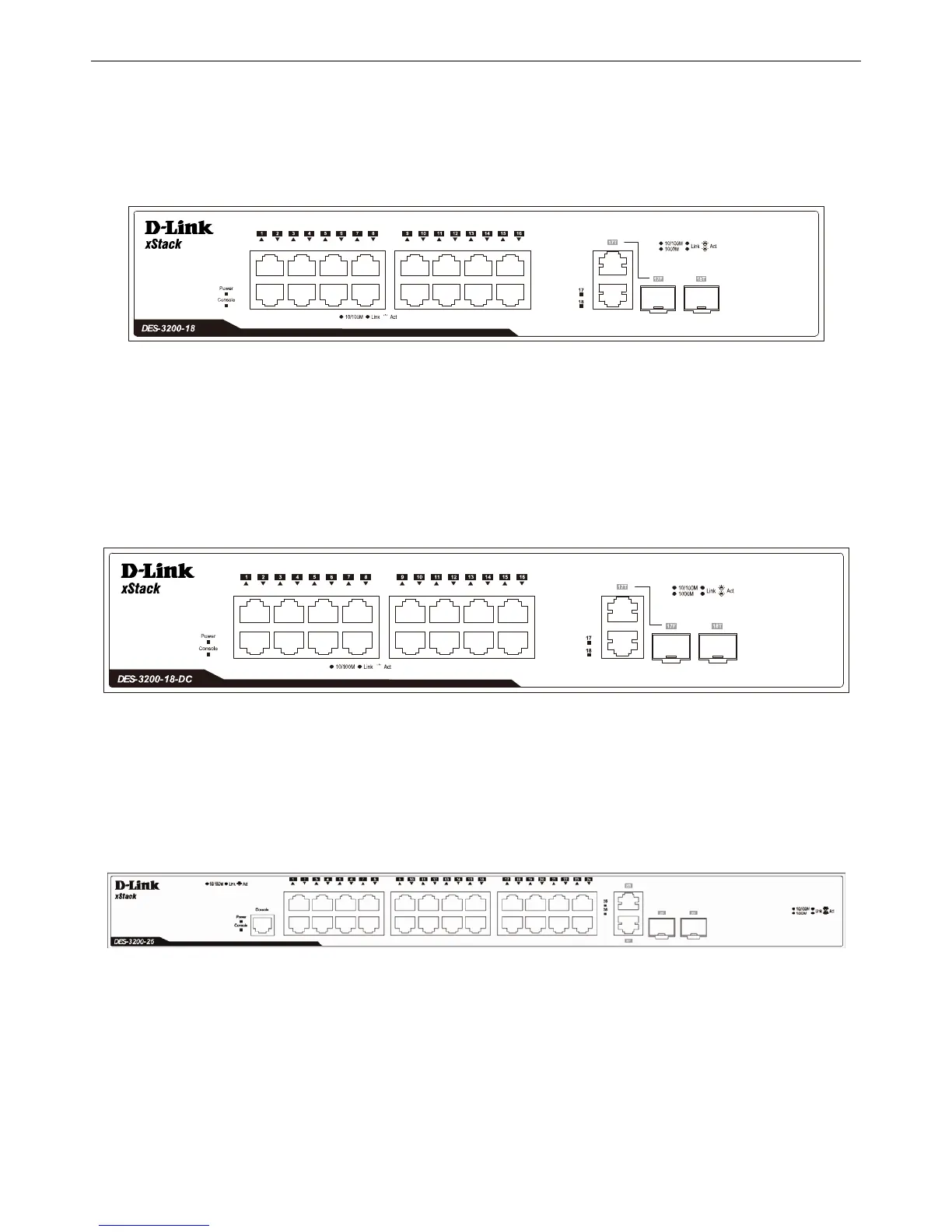

Figure 1-3. Front Panel of the DES-3200-18
The front panel of the DES-3200-18-DC switch consists out of the following:
 Sixteen 10/100Mbps Copper Ports
 One Combo 10/100/1000Mbps Copper / 100/1000Mbps SFP port
 One 100/1000Mbps SFP Port
 One RJ-45 Console Port
 LEDs for Power, Console, Link/Act for port 1 to 16, and Link/Act/Speed for port 17 and 18
Figure 1-4. Front Panel of the DES-3200-18-DC
The front panel of the DES-3200-26 switch consists out of the following:
 Twenty-four 10/100Mbps Copper Ports
 Two Combo 10/100/1000Mbps Copper / 100/1000Mbps SFP ports
 One RJ-45 Console Port
 LEDs for Power, Console, Link/Act for port 1 to 24, and Link/Act/Speed for port 25 and 26
Figure 1-5. Front Panel of the DES-3200-26
The front panel of the DES-3200-26-DC switch consists out of the following:
 Twenty-four 10/100Mbps Copper Ports
 Two Combo 10/100/1000Mbps Copper / 100/1000Mbps SFP ports
 One RJ-45 Console Port
 LEDs for Power, Console, Link/Act for port 1 to 24, and Link/Act/Speed for port 25 and 26
3
