xStack
®
DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
5
Front Panel Components
The front panel of the Switch consists of LED indicators for Power, Console, RPS, Master, S1, S2, Fan, SD, Stack ID,
and for Link/Act for each port on the Switch including SFP port LEDs. A separate table below describes LED
indicators in more detail. The DGS-3120-24PC and DGS-3120-48PC switches are equipt with an additional PoE light,
to indication whether the ports are running in Power over Ethernet mode.

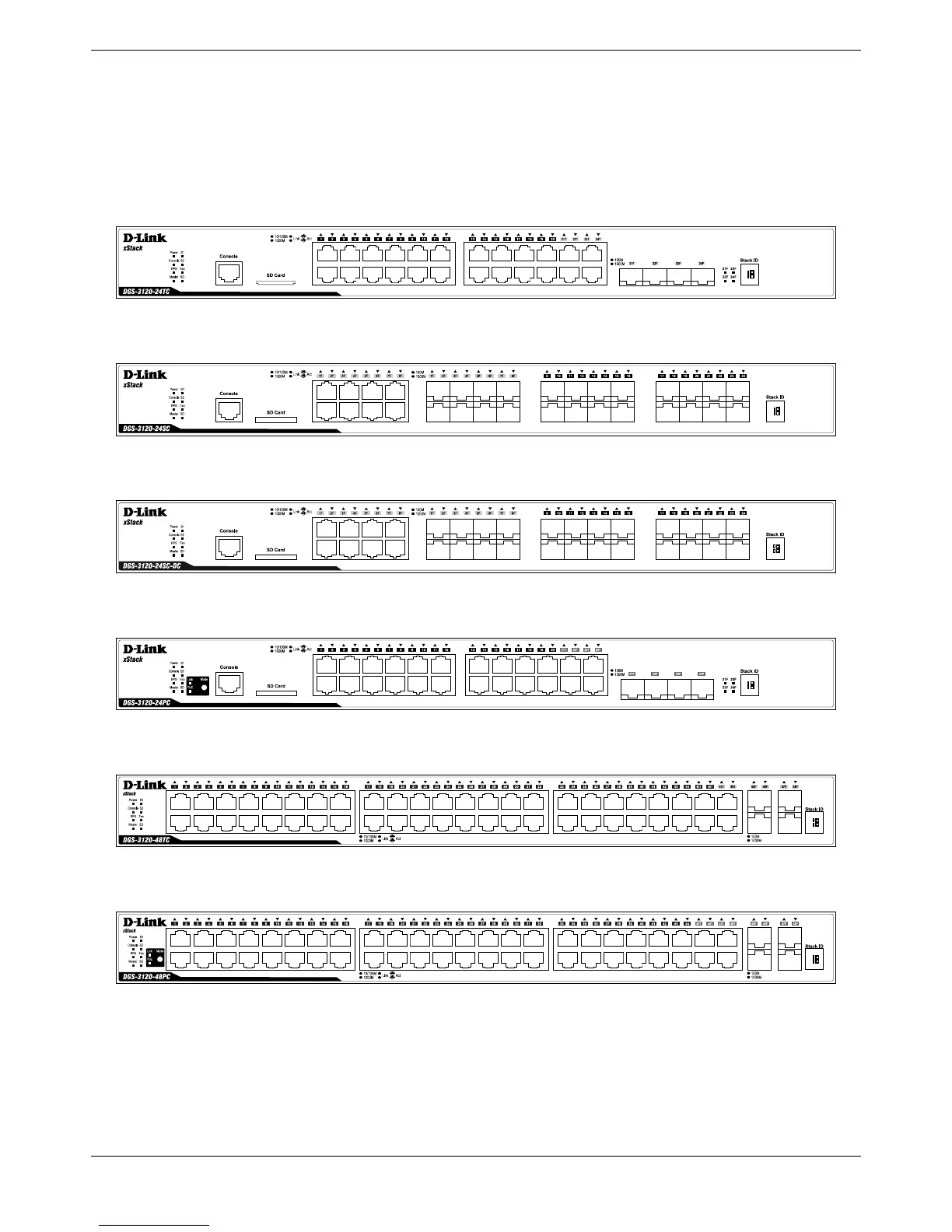

Figure 1- 1. Front panel view of the DGS-3120-24TC
Figure 1- 2. Front panel view of the DGS-3120-24SC
Figure 1- 3. Front panel view of the DGS-3120-24SC-DC
Figure 1- 4. Front panel view of the DGS-3120-24PC
Figure 1- 5. Front panel view of the DGS-3120-48TC
Figure 1- 6. Front panel view of the DGS-3120-48PC
