xStack
®
DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
19
DPS-900
The DPS-900 is a standard-size rack mount (5 standard units in height) designed to hold up to eight DPS-200 or DPS-
500 redundant power supplies.

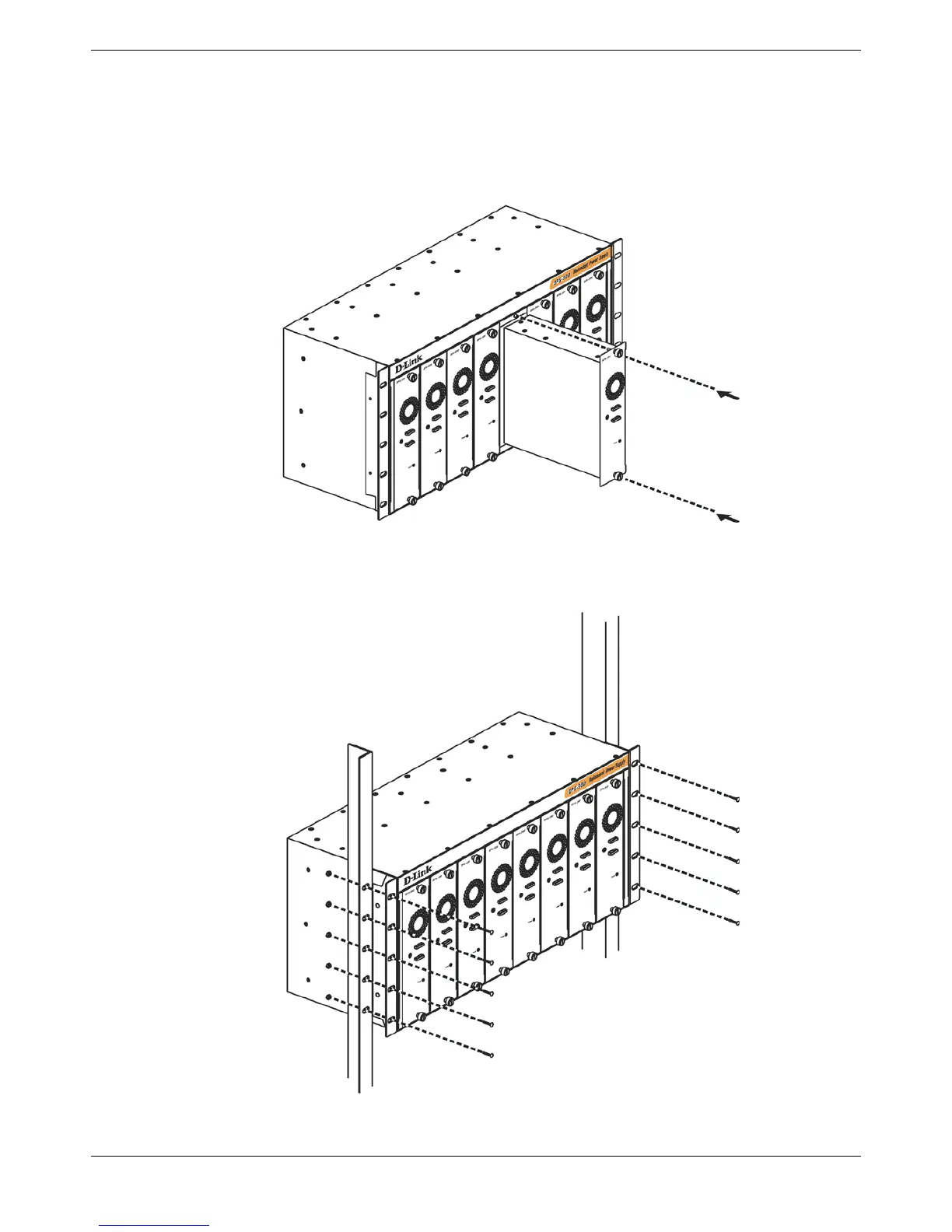

Figure 2- 11. Inserting the DPS-200 or DPS-500 into the DPS-900
The RPS can be mounted in a standard 19" rack. Use the following diagram to guide you.
Figure 2- 12. Installing the DPS-900 into the equipment rack
