DPS-800
The DPS-800 is a standard-size rack mount (1 standard unit in height) designed to hold up to two DPS-200 or DPS-
500 redundant power supplies.

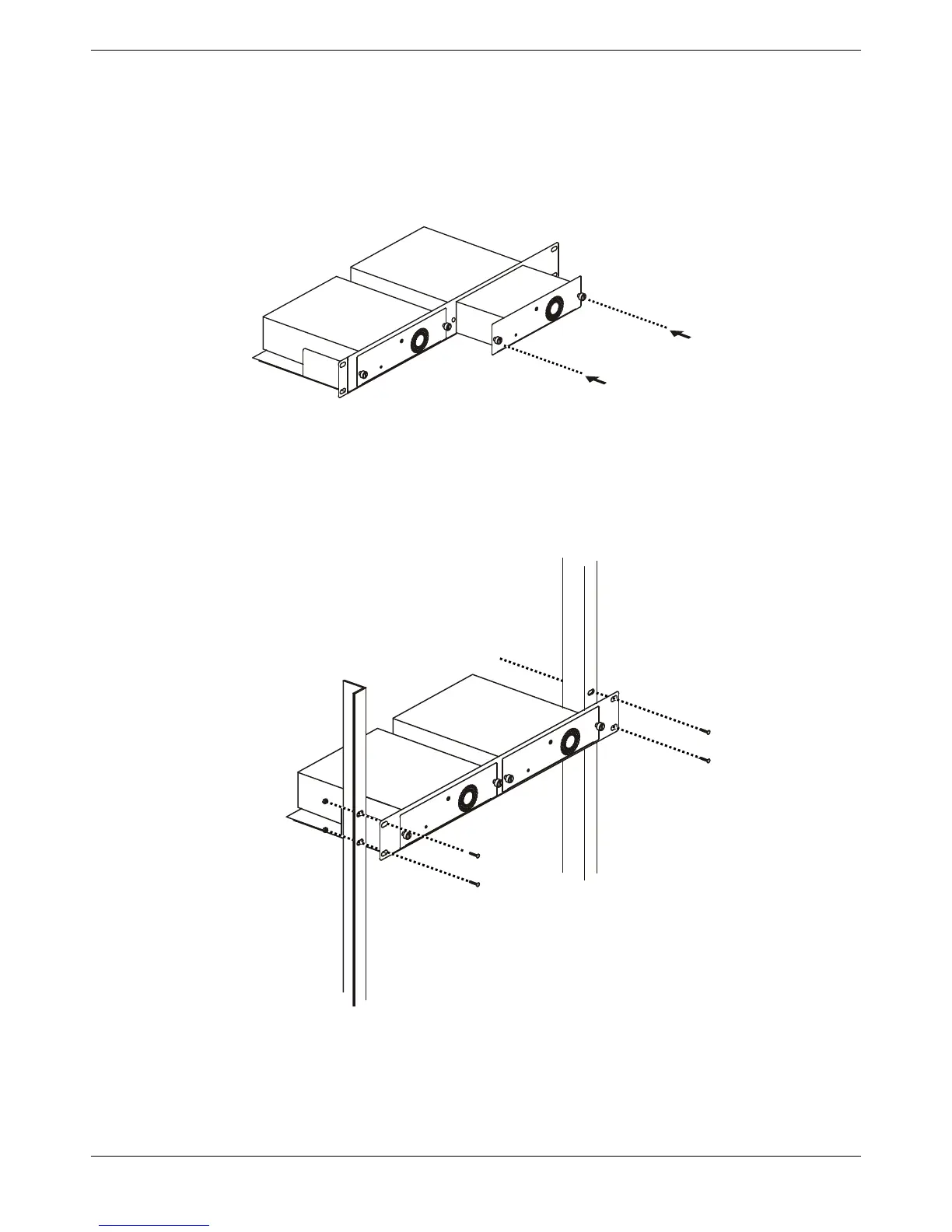

Figure 2- 9. Installing the DPS-200 or DPS-500 in the DPS-800
The RPS can be mounted in a standard 19" rack. Use the following diagram to guide you.
Figure 2- 10. Installing the DPS-800 in an Equipment Rack
To Next Page
