D-Link xStack DGS-3120-48PC User Manual

xStack
®
DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
39
Console Cable
When connecting the Switch a PC, a Console cable is necessary. The following diagrams and tables show the
standard Console-to-DJ-45 receptacle/connector and their pin assignments.

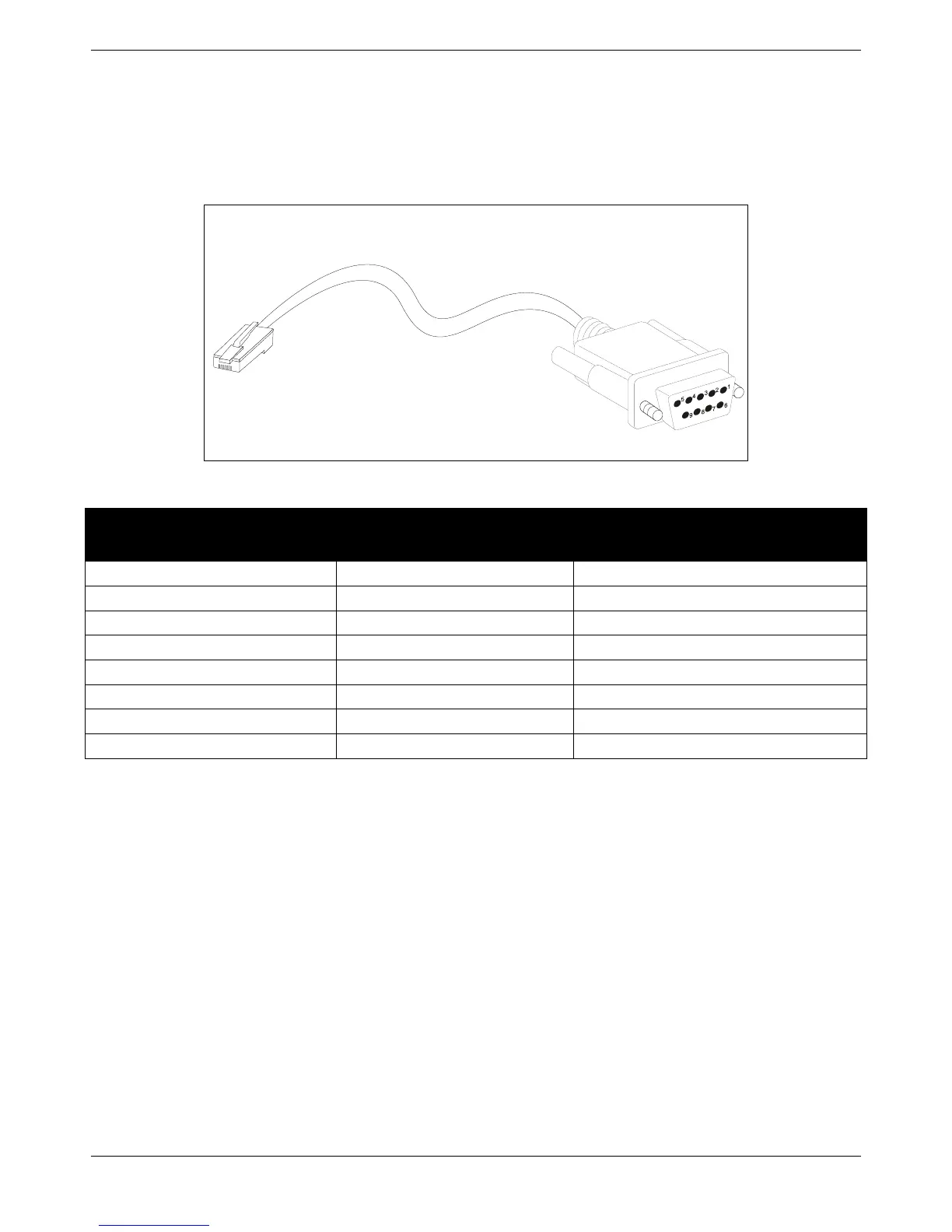

Figure B- 2. Console-to-RJ-45 Cable
Console-RJ-45 Pin Assignments
Pin Console (DB9/RS232) RJ-45
1
Not Used Not Used
2
RXD Not Used
3
TXD TXD
4
Not Used GND
5
GND (shared) GND
6
Not Used RXD
7
Not Used Not Used
8
Not Used Not Used
