D-Link xStack DGS-3120-48PC User Manual

xStack
®
DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
41
22-pin DC power cable

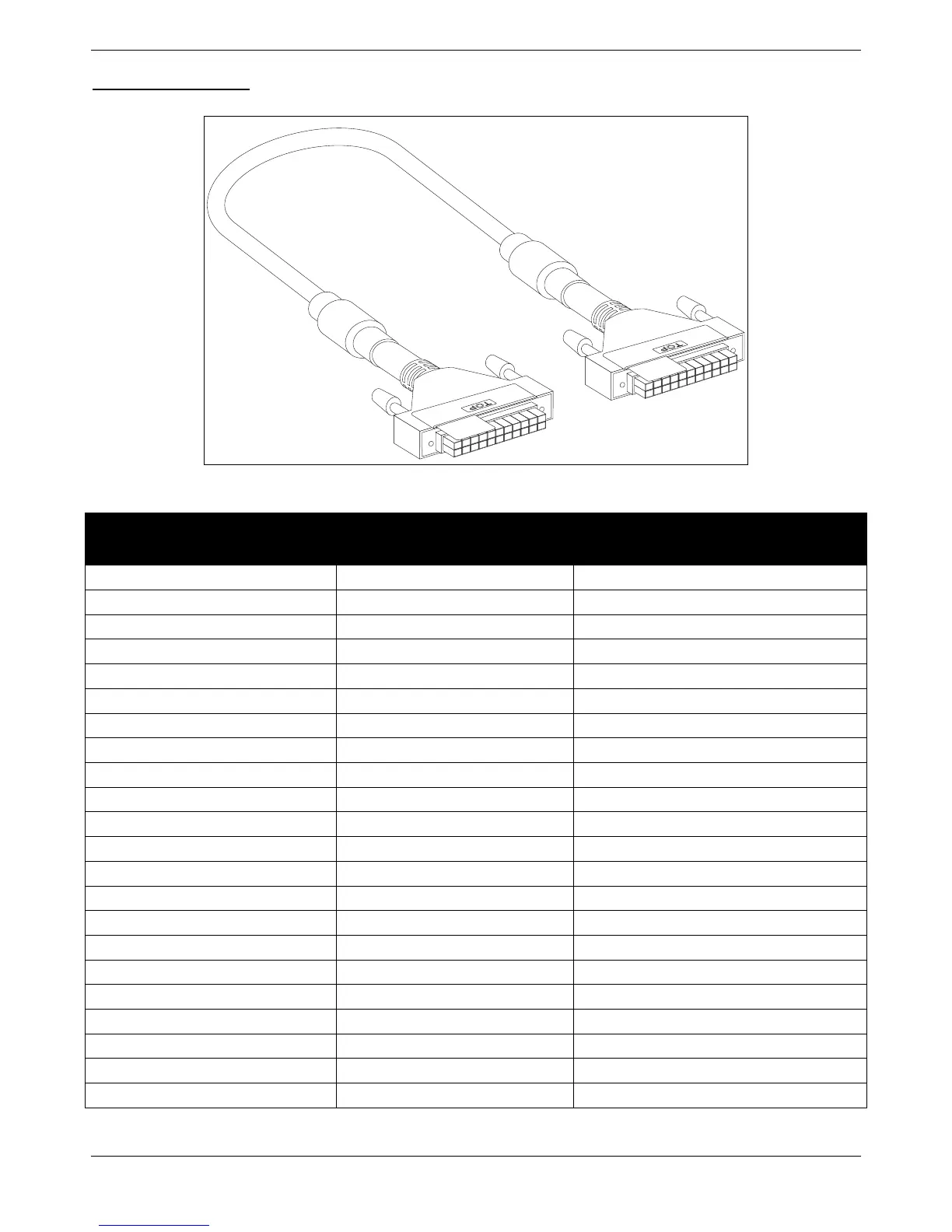

Figure B- 4. Redundant Power Supply (RPS) 22-pin DC Power Cable
RPS 22-pin DC Power Cable Pin Assignments
Pin Device DPS-700
1
-54Vrtn -54Vrtn
2
-54V -54V
3
+12V +12V
4
+12V +12V
5
+12V +12V
6
+12V +12V
7
NC/GND GND
8
+12Ven +12Ven
9
LS-54V LS-54V
10
-54V -54V
11
-54Vrtn -54Vrtn
12
GND NC/GND
13
GND GND
14
RPS Present Status_2
15
Status_1 RPS PG
16
Status_2 RPS Present
17
RPS PG Status_1
18
GND GND
19
+12VRTNsen +12VRTNsen
20
LS+12V LS+12V
21
-54Vsen -54Vsen
22
-54VRTNsen -54VRTNsen
