Da-Lite Large advantage electrol - 240 V Wiring Diagram with Optional Built-in Low Voltage Control

TENSIONED LARGE ADVANTAGE
®
ELECTROL
®
INSTRUCTIONS
“EYE” PORT
PLUG “IR” OR “RF”
REMOTE HERE
POWER INPUT
240VAC / 50HZ

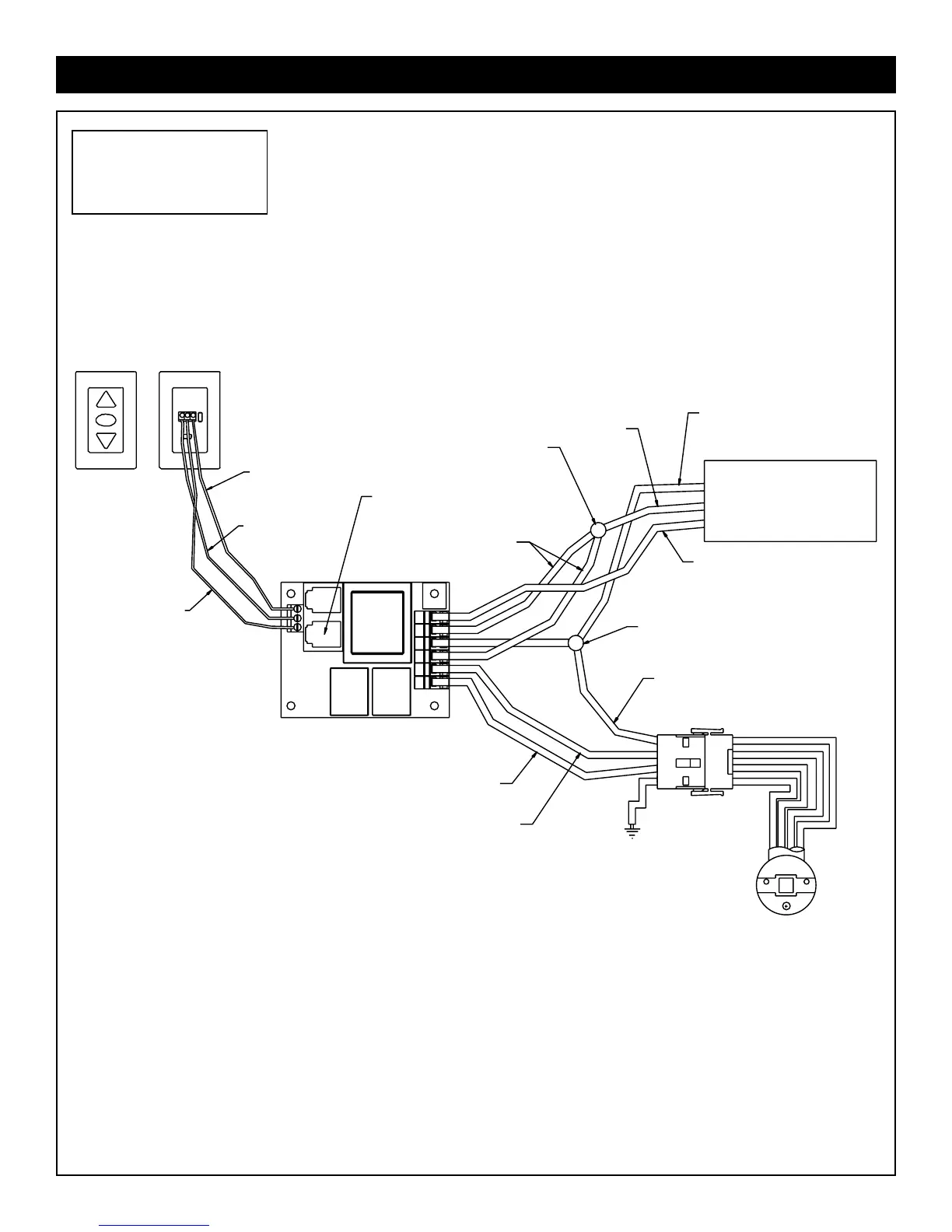

240V WIRING DIAGRAM
WITH OPTIONAL BUILT-IN
LOW VOLTAGE CONTROL
DOWN
STOP
UP
GREEN/YELLOW
(GROUND)
NOTE: DO NOT USE 3-POSITION HIGH
VOLTAGE ROCKER SWITCH WITH
THIS UNIT! THIS WILL DAMAGE THE
LOW VOLTAGE CONTROL BOARD.
BROWN
(HOT)
BLUE
(COMMON)
BLUE
(COMMON)
BROWN
(DOWN)
BLACK
(UP)
GREEN/YELLOW
(GROUND)
SCREEN
MOTOR
BLACK
RED
(UP)
WHITE
(COMMON)
BLACK
(DOWN)
FRONT OF
WALL
SWITCH
BACK OF
WALL
SWITCH
GREEN/YELLOW
(GROUND)
BLUE (COMMON
BROWN (DOWN)
BLACK (UP)
GREEN/YELLOW (GROUND)
NOTE: 20-24AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO
LOW VOLTAGE CONTROLLER.
