Programming
The ACTIVE DRIVER has a simple programming logic
and is easy to program.

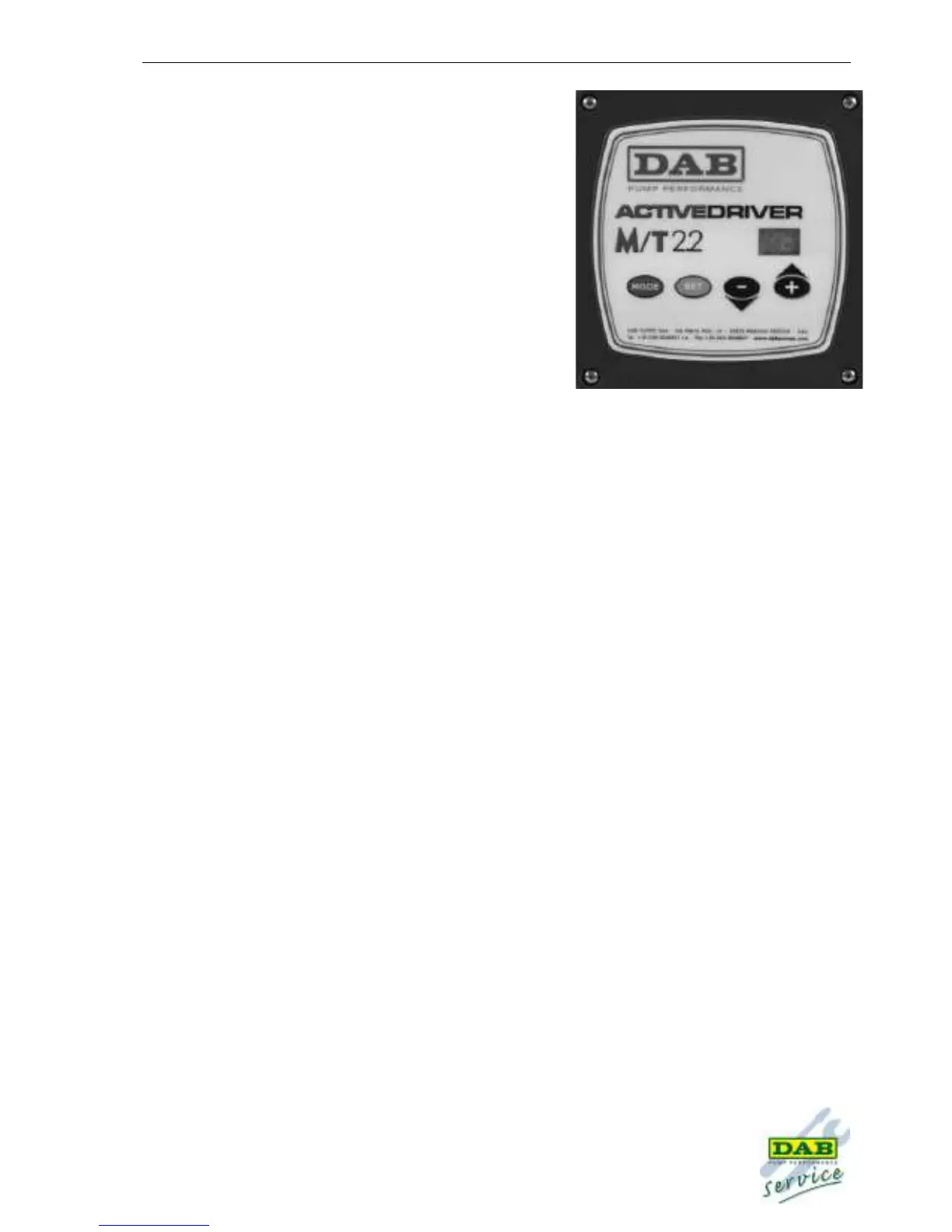

There is a two digit illuminated LCD screen and four
input buttons.
By pressing and holding these buttons in sequence will
allow the programmer to access different parts of the
programming matrix.
The display also shows information as to the status of
the pump, and faults if present.
>>Normal Display Indications
During normal operation the following indication will be
present.
ZF
= Zero Flow & General Reset (appears on startup and when leaving reset)
Go
= Pump Operating
Sb
= Pump waiting (Standby)
bL
= No Flow
A full list of display indications is listed at the back of this guide.
>>Displays of the Main Values
It is also possible to access operational information of the system by pressing the [mode] key,
these indications are,
Fr
= Displays the current frequency (speed) of the pump
UP
= Displays the Upstream Pressure of the system
C1
= Displays the phase current of the pump in Amps
UE
= Displays the version of the software installed in the ACTIVE DRIVER
>>Other Displays
It is also possible to access other operational information of the system by pressing the [set]
and [-] key for two seconds, these indications are,
UF
= Displays the flow
ZF
= Displays of zero flow
FM
= Displays the maximum operation frequency of the pump
tE
= Displays the temperature of the power stages (in C’)
bt
= Displays the temperature of the electronic card (in C’)
GS
= Displays the running status
FF
= Displays the log of errors and blockages
