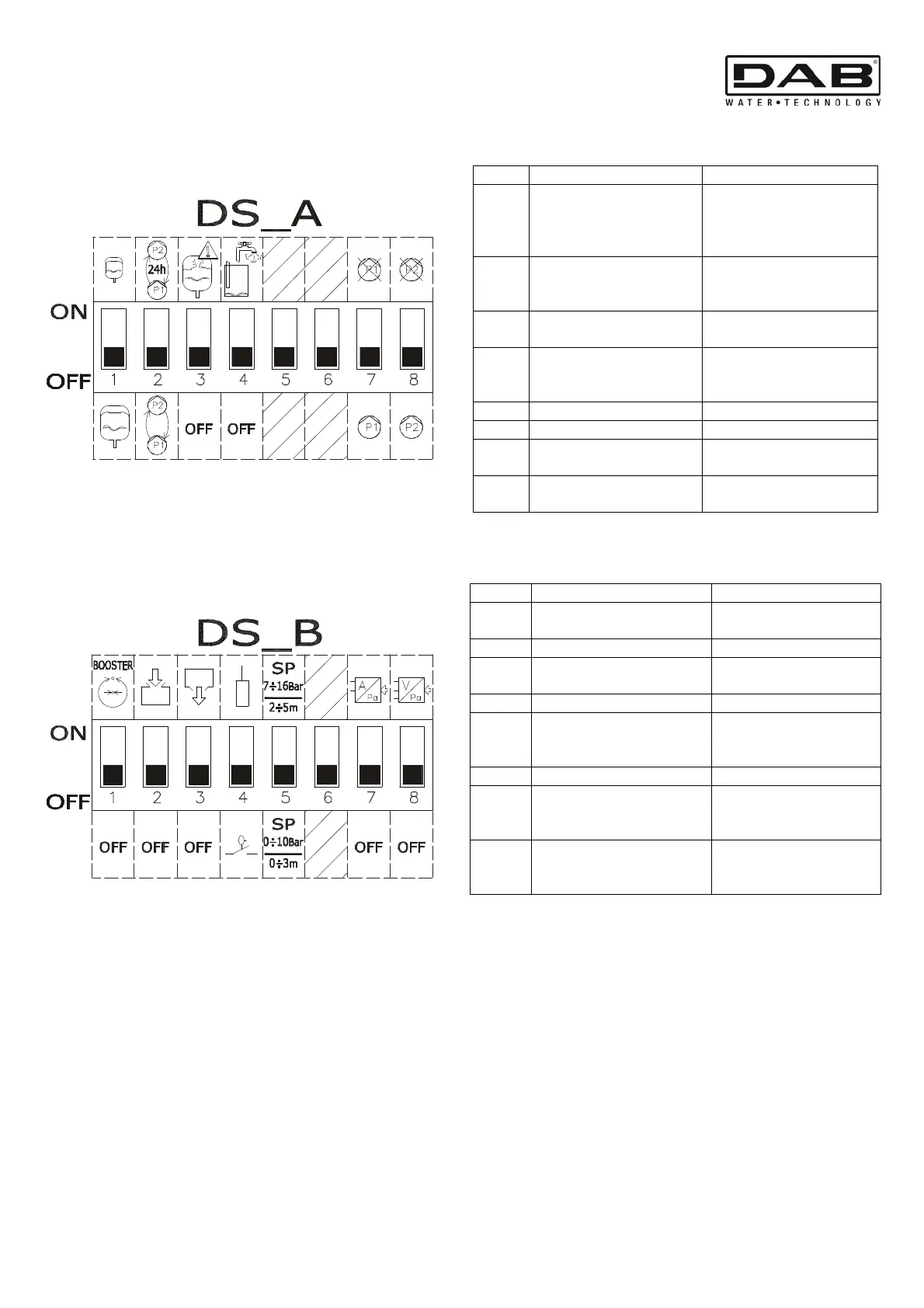

10.2 Dip-switch for selecting functions (DS_A – DS_B)
No. ON status OFF status
1
Booster set with
STANDARD
expansion vessels (19
litres each pump)
Booster set with
additional expansion
vessels (over 100
litres)
2
Automatic exchange
between pump P1 and
P2 every 24 hours.
Automatic exchange
between pump P1 and
P2 at every start.
3
Rapid stars control
function active. (ON)
OFF
4
Protection against dry
running active.
(ON)
OFF
5
6
7 (**)
Pump P1 not
available.
Pump P1 available.
8 (**)
Pump P2 not
available.
Pump P2 available.
No. ON status OFF status
1 (*)
Operation as booster
set.
OFF
2 (*)
Operation as filling set. OFF
3 (*)
Operation as draining
set (drainage).
OFF
4
Use of electric probes. Use of floats.
5
Pressure set point
scale:
7-16 bar / 2-5 m.
Pressure set point
scale:
0-10 bar / 0-3 m.
6
7 (**)
Regulation with analog
sensor with current
output.
OFF
8 (**)
Regulation with analog
sensor with voltage
output.
OFF
(*) Only one (and at least one) of these dip switches may be in ON position.
(**) Only one (or none) of these dip switches may be in ON position.
