ENGLISH
37

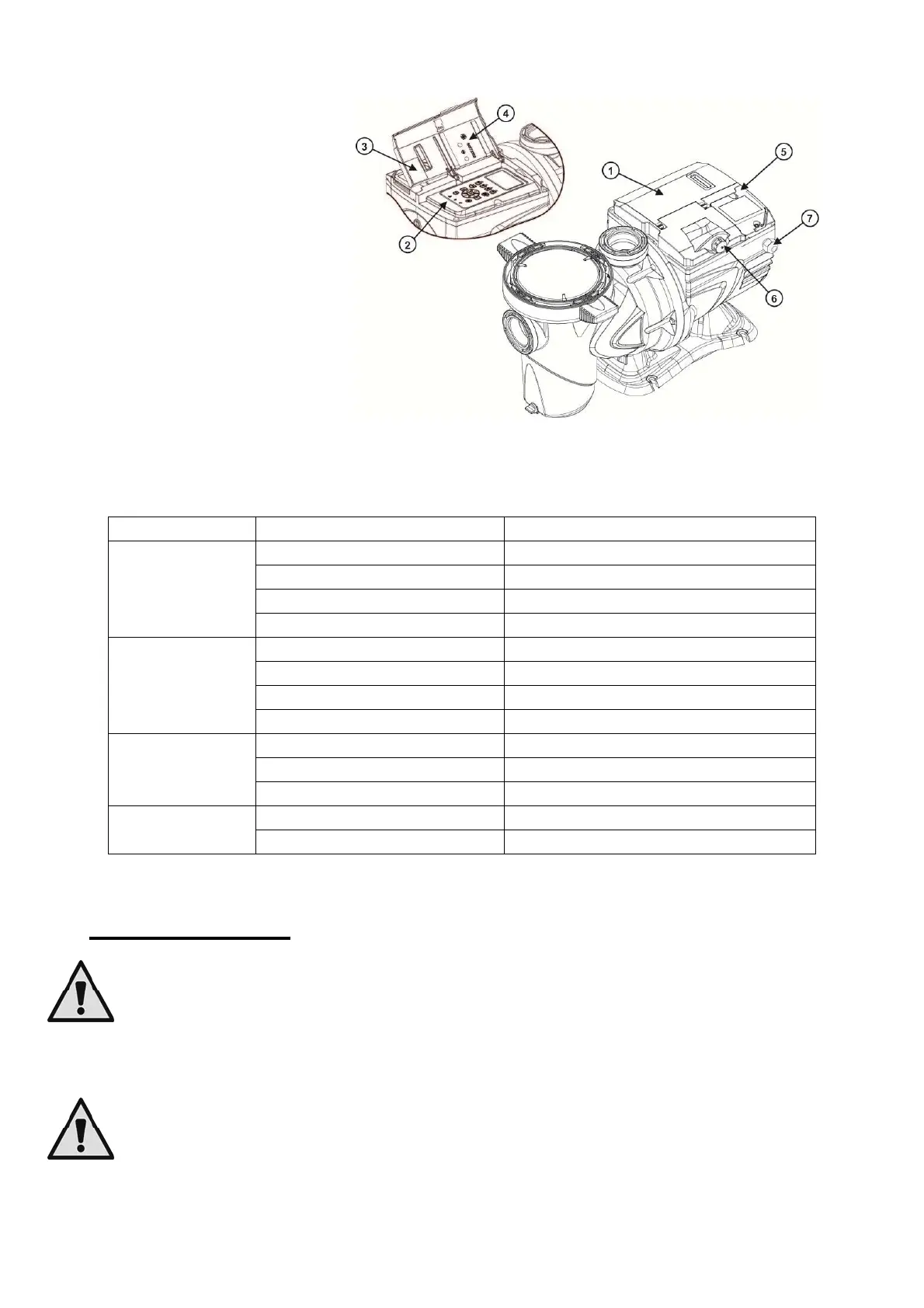

1- User panel cover
2- User panel
3- QR code
4- Quick guide
5- Terminal board cover
6- External connector
7‐ Power cable inlet
Figure 2
1.2 Technical characteristics
The technical characteristics are summed up in the table below.
Topic Parameter E-SWIM
ELECTRIC POWER
SUPPLY
Voltage
220-240 V +/- 10%
Frequency
50/60 Hz
Maximum current
5.6 SFA
Maximum power
1250 W
CONSTRUCTION
CHARACTERISTICS
Overall dimensions
574 x 310 x 316 mm / 22.6 x 12.2 x 12.4 in
Empty weight (excluding packaging)
18 kg / 39 lb
Protection class
IP55
Motor insulation class
F
HYDRAULIC
PERFORMANCE
Maximum head
16 m / 52 ft
Maximum flow rate
32 m3/h / 141 gpm
Maximum working pressure
2,5 bar
WORKING
CONDITIONS
Max liquid temperature
40°C / 104°F
Max ambient temperature
50°C / 122°F
Table 1 – Technical Characteristics
2 INSTALLATION
The system must be used preferably in the technical area for installing swimming pool pumps.
In no case must it be run if exposed without protection to atmospheric agents.
The place of installation must be well ventilated.
2.1 Hydraulic connections
Follow these recommendations with care:
Install the pump horizontally, on a flat and sturdy base, as close as possible to the edge of the pool.
The pump is able to overcome a maximum difference in level of 4 m (with non-return valve).
Install the filter and the pump in a protected, well ventilated place.
Avoid letting the motor be immersed in water.
For pump-system connections use only adhesives suitable for plastics.
