7-1. How to use Hold mode
Hold mode is largely divided into Peak Hold and Sample Hold. Please select Peak or
Sample. To input Hold, you can use Hold key on the front panel or external input. For

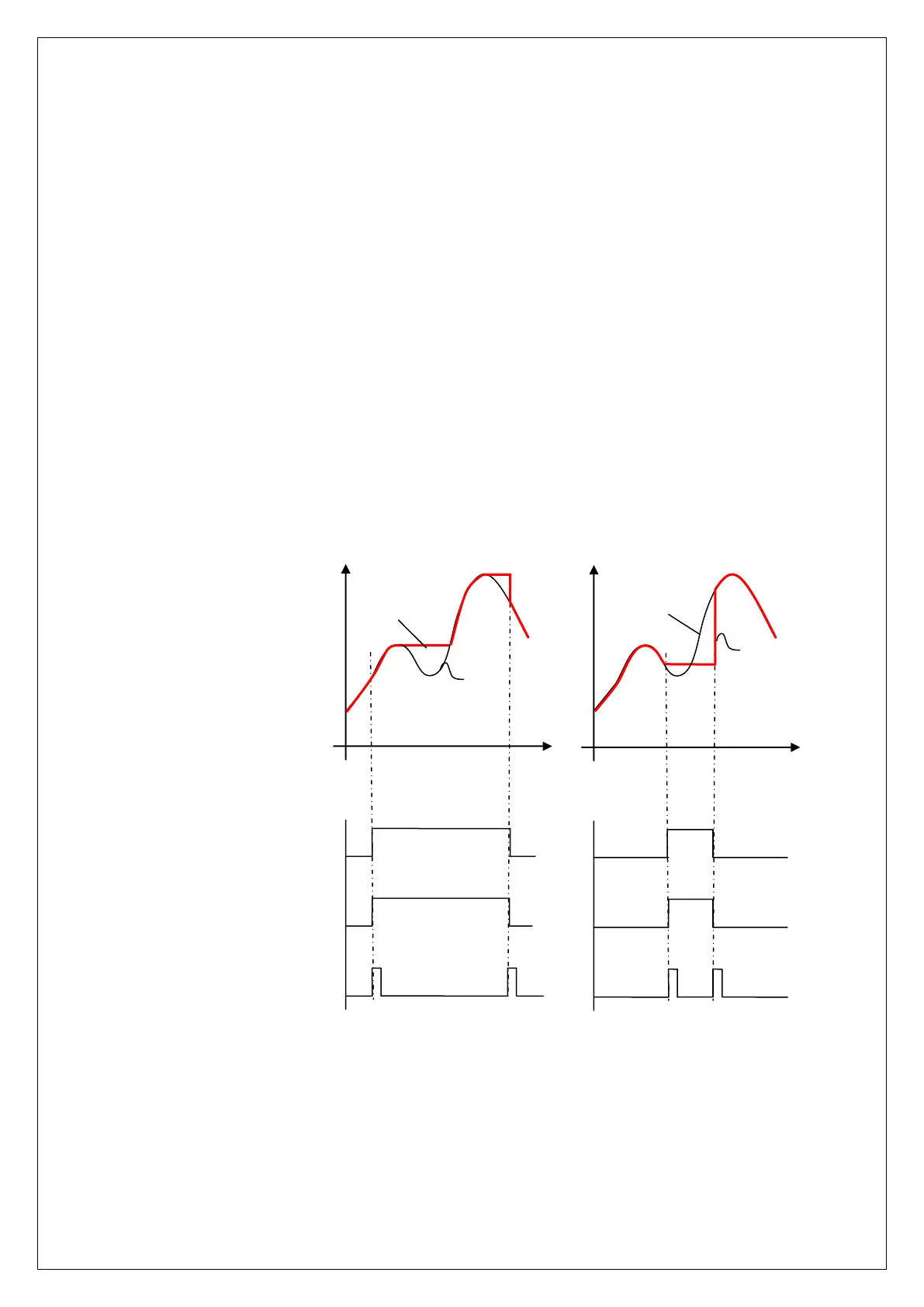

the operation method, please refer to the drawing below.
1) Peak Hold : To Hold the maxium value among the measured values.
Peak hold mode : It is to hold and display the maximum value of (+) direction.
Absolute peak hold mode : It is to hold and display the maximum value of the absolute
value (+/-).
2) Sample hold : It is to hold and display the value at the time of Hold signal input
among the measured values.
On
Off
On
Off
On
off
① − : sensor input value
②
: Display value &
analog output value
Measured value
time
①
②
Measured value
time
①
②
<Peak HOLD> <Sample HOLD>
Front panel HOLD LED
xternal HOLD input termanal
Front panel HOLD Key
