10. OPTION
10-1. BCD OUT INTERFACE
This Programmable BCD interface is the output for the weight value made into BCD
coding.
This interface is available for PLC(Programmable Logic Control), Computer.

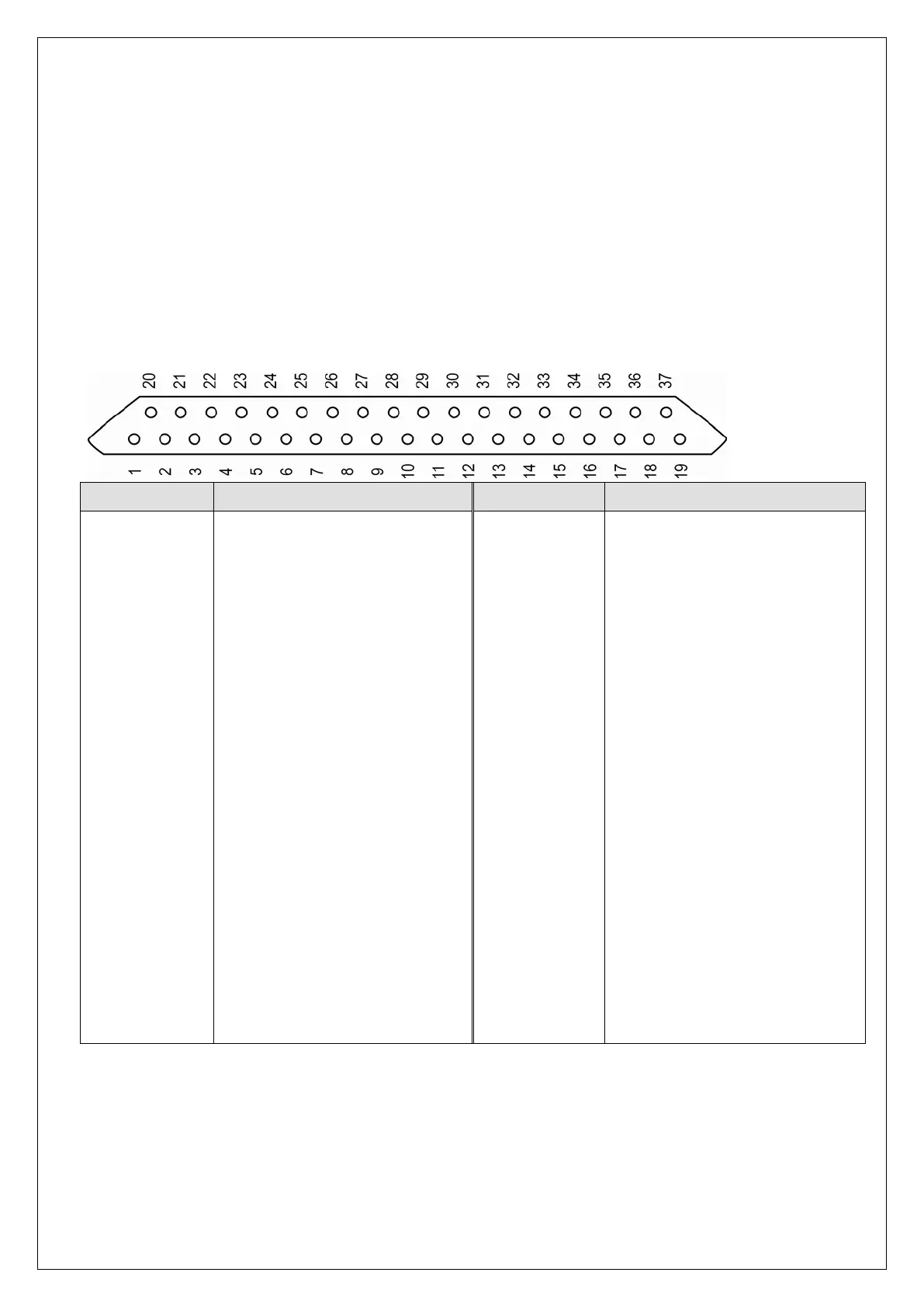

PIN Arrangement
PIN No. SIGNAL PIN No. SIGNAL
1 GND 20 Negative Polarity
2 1 × 10
0
21 BUSY
3 2 × 10
0
22 RLY1
4 4 × 10
0
23 RLY2
5 8 × 10
0
24 RLY3
6 1 × 10
1
25 RLY4
7 2 × 10
1
26 NC
8 4 × 10
1
27 NC
9 8 × 10
1
28 IN1(HOLD on/off)
10 1 × 10
2
29 IN2(ZERO)
11 2 × 10
2
30 IN3(NC)
12 4 × 10
2
31 IN4(NC)
13 8 × 10
2
32 NC
14 1 × 10
3
33 NC
15 2 × 10
3
34 NC
16 4 × 10
3
35 Internal test voltage(+5V)
17 8 × 10
3
36 NC
18 1 × 10
4
37 External VCC
19 2 × 10
4
