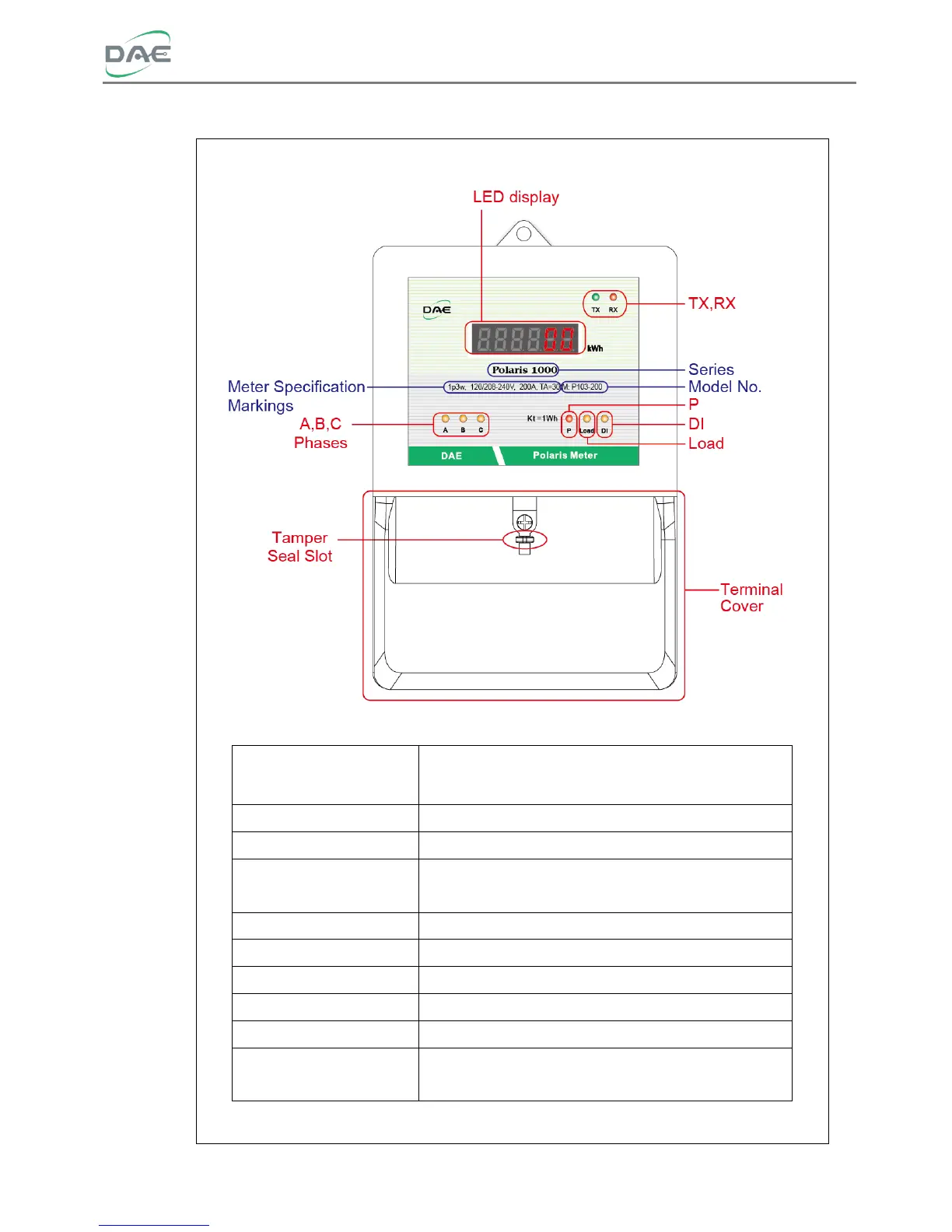

2.1 Front Panel

LED display

6-digit primary LCD display

for showing kWh and other parameters

TX, RX

Reserved

A, B, C Phases

A, B, C phase voltage inputs indicator

Watthour test constant indicator

Kt=1Wh (1000 imp/kWh)

Load

Load status indicator

Water meter pulse input indicator

Terminal Cover

To cover the terminals

Series

Model series

Model No.

This specific model ordering code

Meter Specification

Markings

Phase/wire, voltage,

max current and test current
