DAE Polaris 1000 - Terminal Connections

Polaris 1000 User’s Manual
Page 11

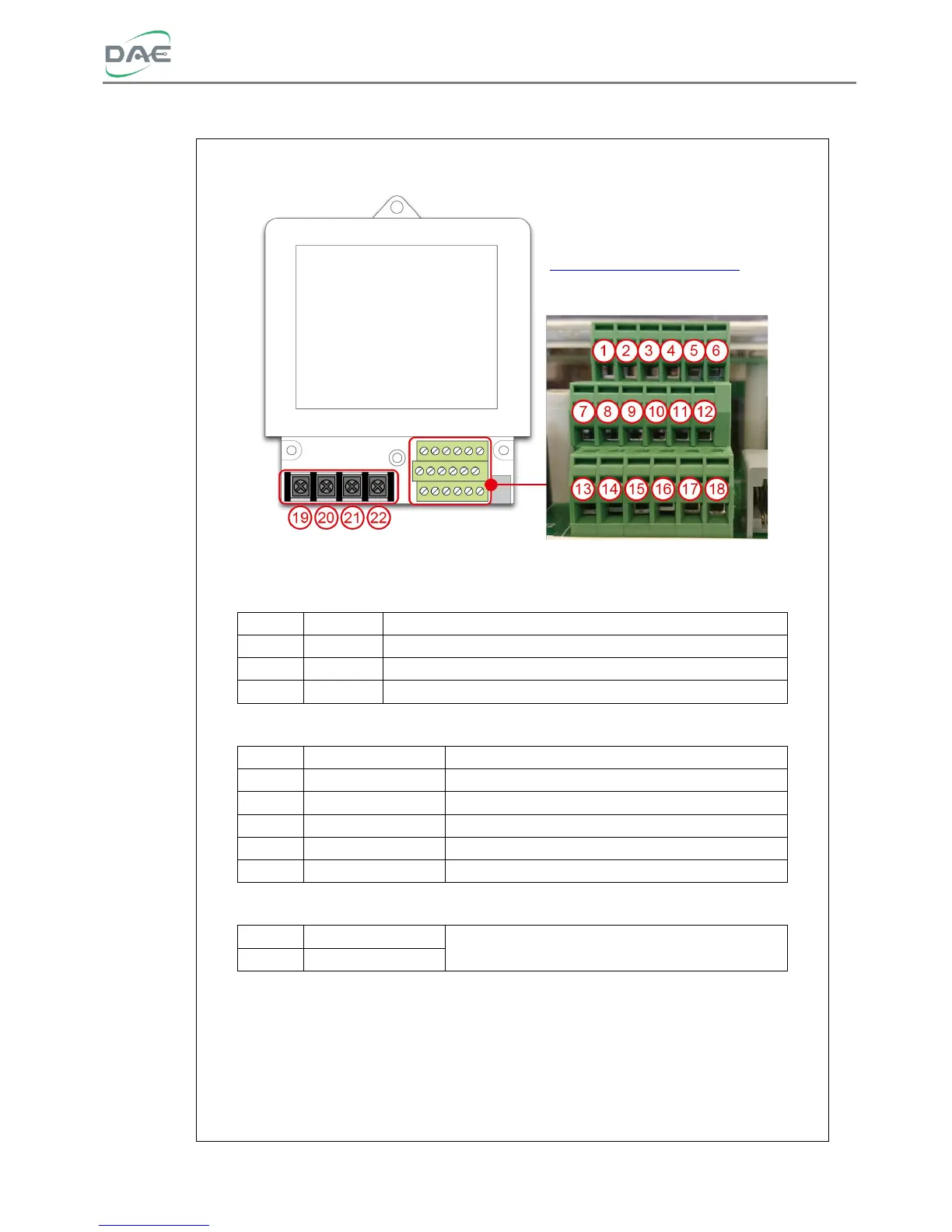

2.2 Terminals
Voltage input terminals
(19)
VA
Phase A voltage input
(20)
VB
Phase B voltage input
(21)
VC
Phase C voltage input
(22)
VN
Phase N voltage input
CT input terminals
(13)
CT-A +
Phase A CT + input
(14)
CT-A -
Phase A CT - input
(15)
CT-B +
Phase B CT + input
(16)
CT-B -
Phase B CT - input
(17)
CT-C +
Phase C CT + input
(18)
CT-C -
Phase C CT - input
Water meter pulse input terminals (optional)
(3)
DI +
Water meter pulse input
(4)
DI -
Other terminals (1~2, 5~12) are reserved.
Terminal cover removed
