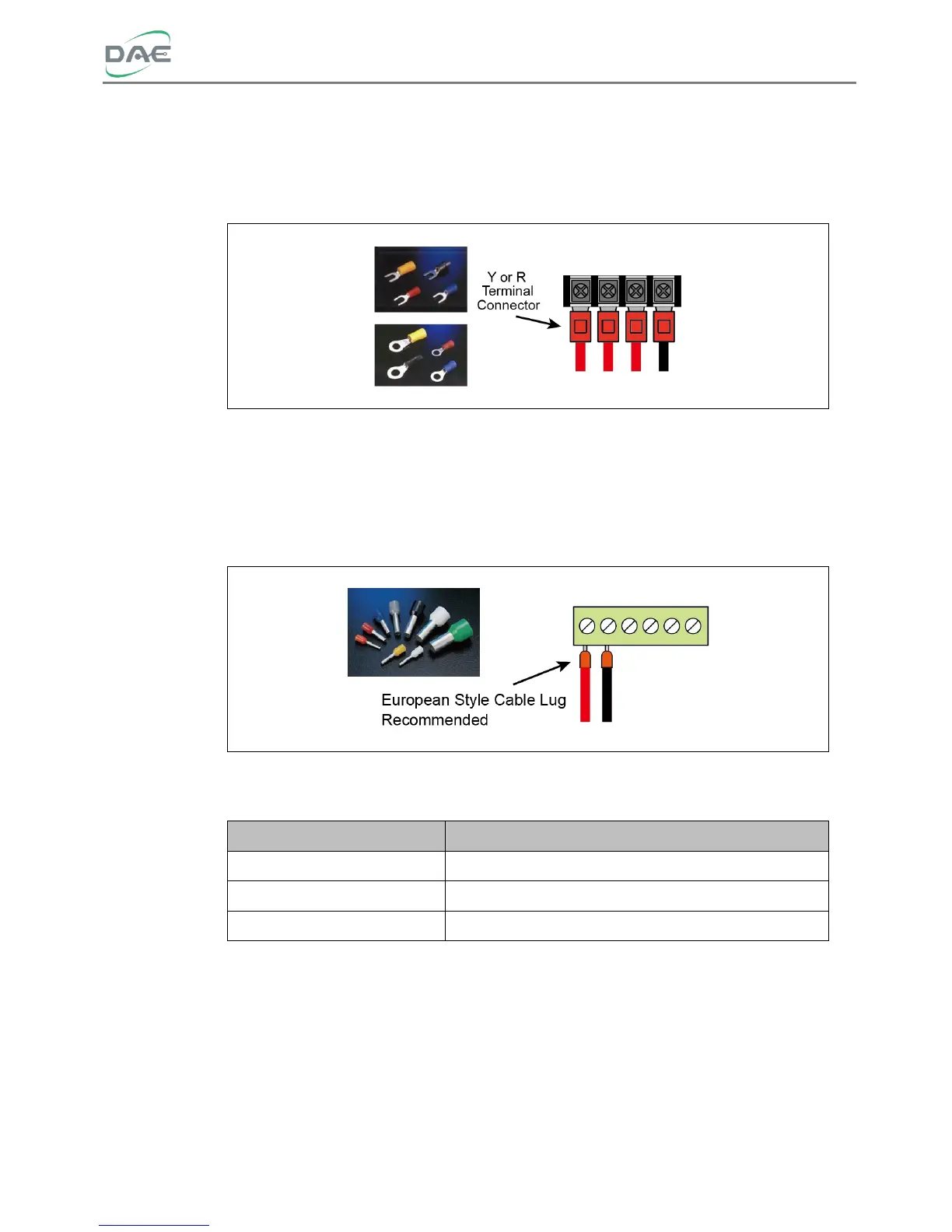

Terminal detail
(1) Voltage input terminals
Use the proper size and wire type as per electrical regulations.
(2) Other terminals
Make sure that the wires are screwed tightly onto the terminals and
making good contact.
(3) Recommended wire size
Terminal type
Wire range
Voltage input
#10-18 AWG, screw torque 16 lb-inch
CT input
#14-22 AWG, screw torque 5 lb-inch
Water meter pulse input
#14-22 AWG, screw torque 5 lb-inch
Note : It is important to make sure to consult your local electrical codes for proper
sizing requirements.
