Polaris 1000 User’s Manual
Page 14

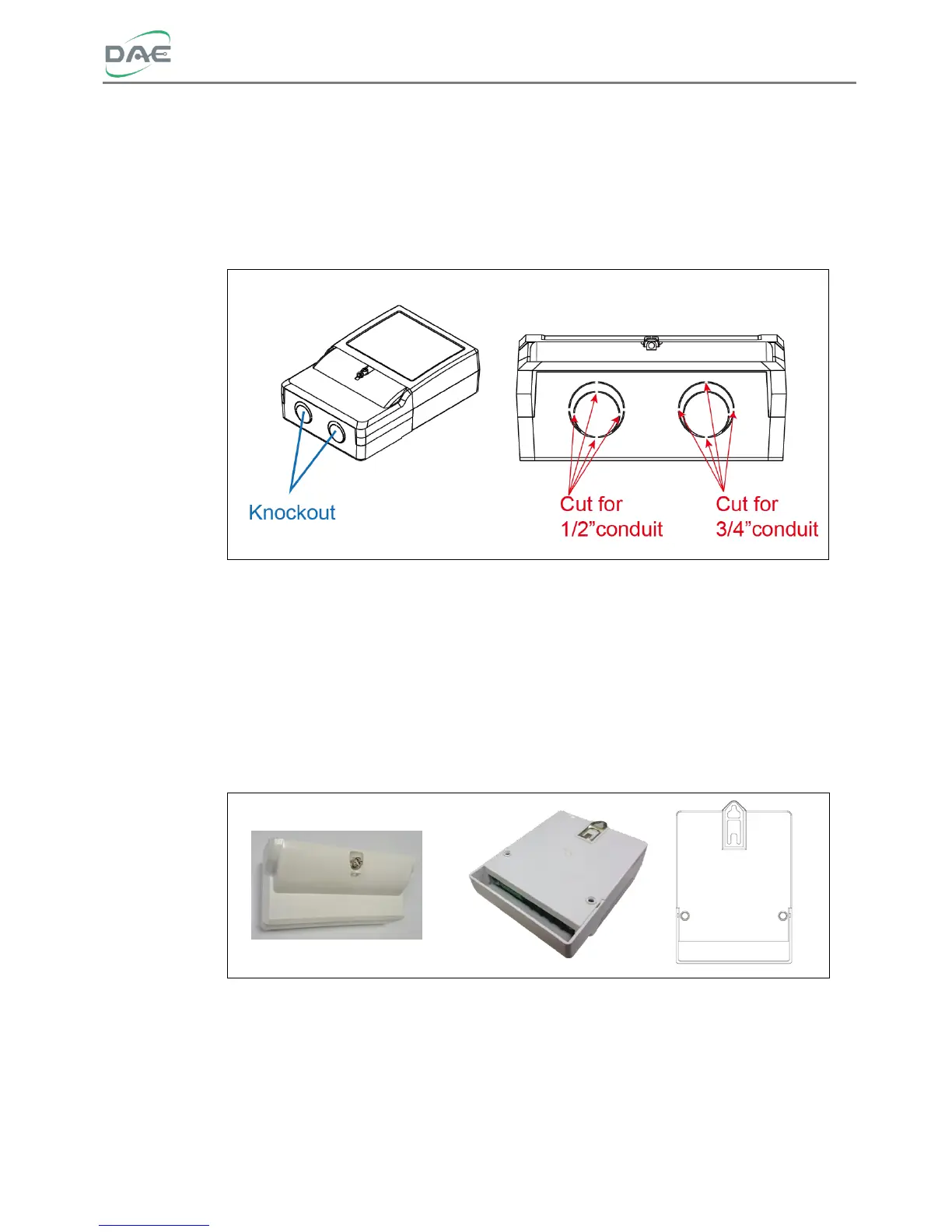

2.5 Conduit and Wire Ingress
(1) Regular terminal cover
Each Polaris meter has two knockouts at the bottom. Both knockouts can
be cut open for either 1/2" or 3/4" conduit. For voltage and CT wirings, cut
open the knockout for 3/4" conduit.
Note : Please use UL certified cables and conduits.
(2) Special terminal cover
An alternate terminal cover is also available (purchased separately) for
use when the meter is to be installed within an enclosure. The voltage and CT
wires will enter the meter through the rear opening of the terminal cover.
