Polaris 1000 User’s Manual
Page 16
Meter side
Connect the CT white wire to the CT+ terminal on the meter, and the CT
black wire to the CT– terminal on the meter. Please refer to section 2.2 on
Terminals.

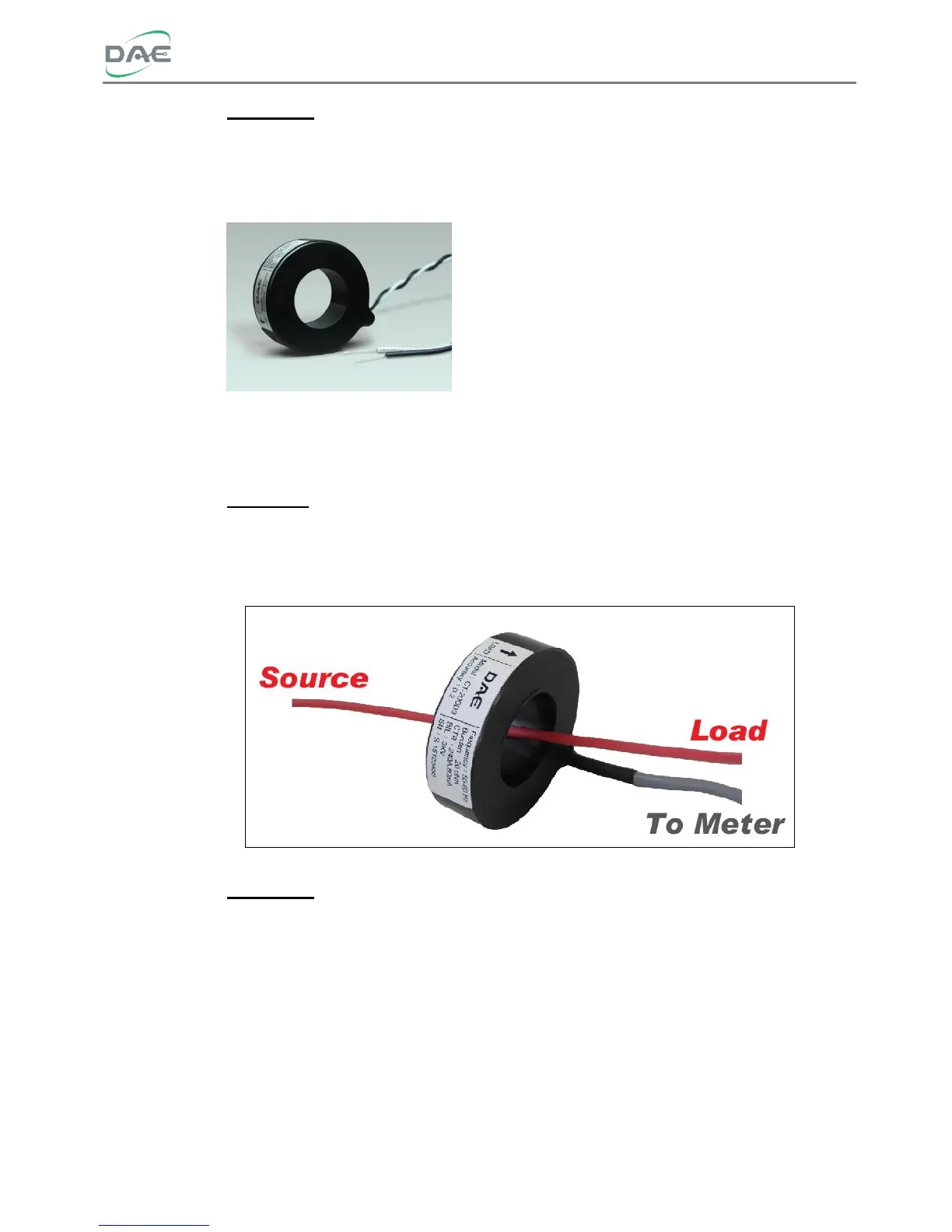

(2) Solid-core CT installation
Load side
With solid core CTs, the wire must be threaded through the CT, which
would necessitate disconnecting the wire from the load.
Meter side
Connect the CT white wire to the CT+ terminal on the meter, and the CT
black wire to the CT– terminal on the meter. Please refer to section 2.2 on
Terminals.
