DAELIM S2 125 Owner's Manual

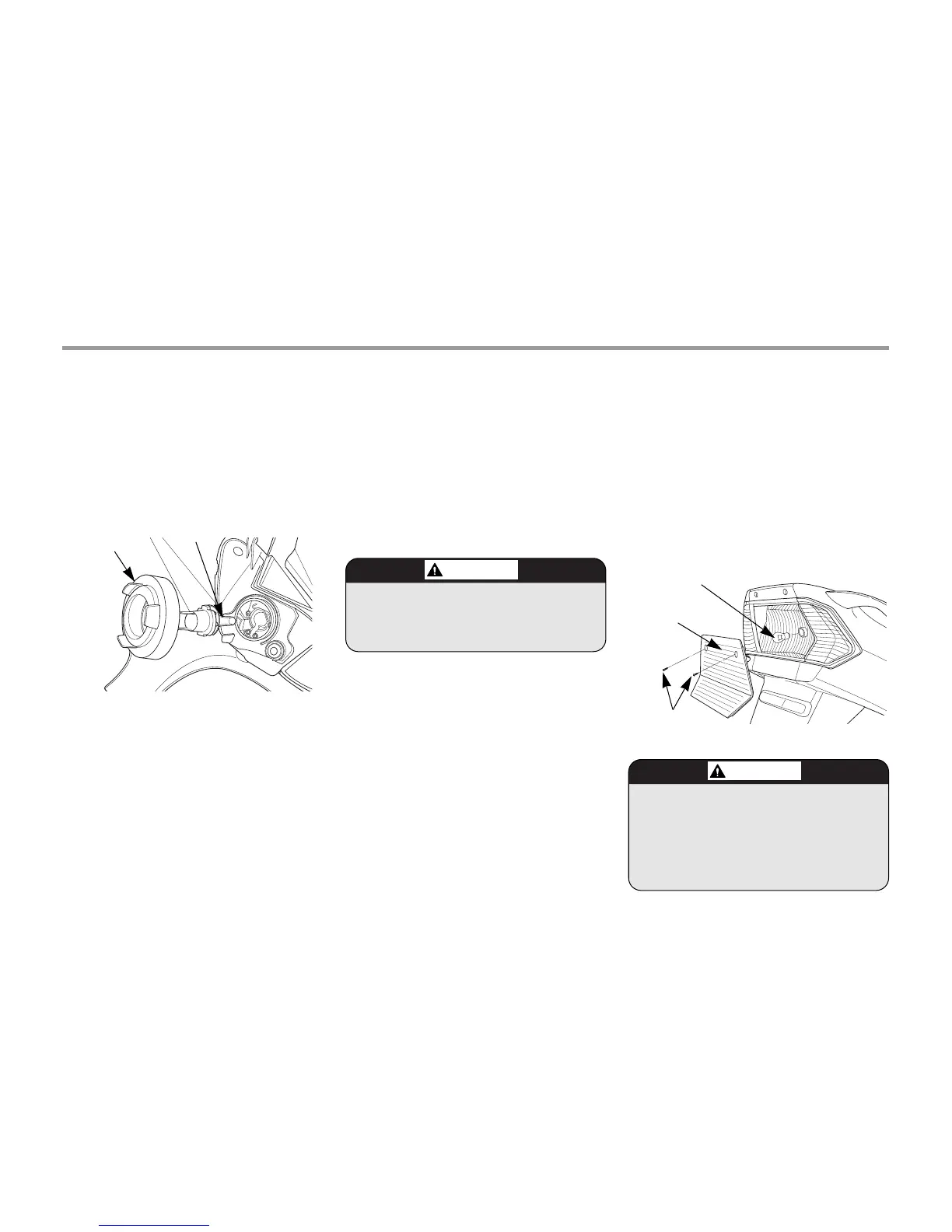

(4) Disassemble a headlight socket by
pulling it out.
(5) Disassemble the rubber cover.
(6) Loosen the steel wire, and disassemble
the head light bulb.
HEADLIGHT BULB: 12V 55W(H7)
(7) Replace with new bulb. Apply reverse
order of disassembly for assembly.
<HEADLIGHT LUMINATION ANGLE>
●Adjust headlight lumination angle by
turning an adjusting bolt on a headlight.
(Use type screwdriver.)
(1) Adjust the upper/lower by turning the
screw on outside.
(2) Adjust the right/left by turning the
screw on inside.
<TAIL/STOP LIGHT BULB>
(1) Loosen 2 tapping screws to disassemble
tail light lens.
(2) Press a bulb with a light force and rotate
it to counterclockwise to disassemble it.
(3) Replace it with new bulb. Apply reverse
order of disassembly for assembly.
TAIL/STOP LIGHT BULB : 12V 21/5W
29
RUBBER COVER
BULB
BULB
SCREW
TAIL LIGHT LENS
CAUTION
●Lumination angle adjusted incorrectly
may dazzle a facing driver's eyes or
result in difficulty to show the forward.
CAUTION
●When disassembling, care is to be taken
for ensuring that a tail light lens can not
be damaged.
●When replacing a tail light lens, be sure
to assemble lens seal securely.

DAELIM S2 125 Specifications

General

Displacement	124.6 cc
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air-cooled
Transmission	Automatic (CVT)
Front Brake	Disc
