DAELIM S2 125 Owner's Manual

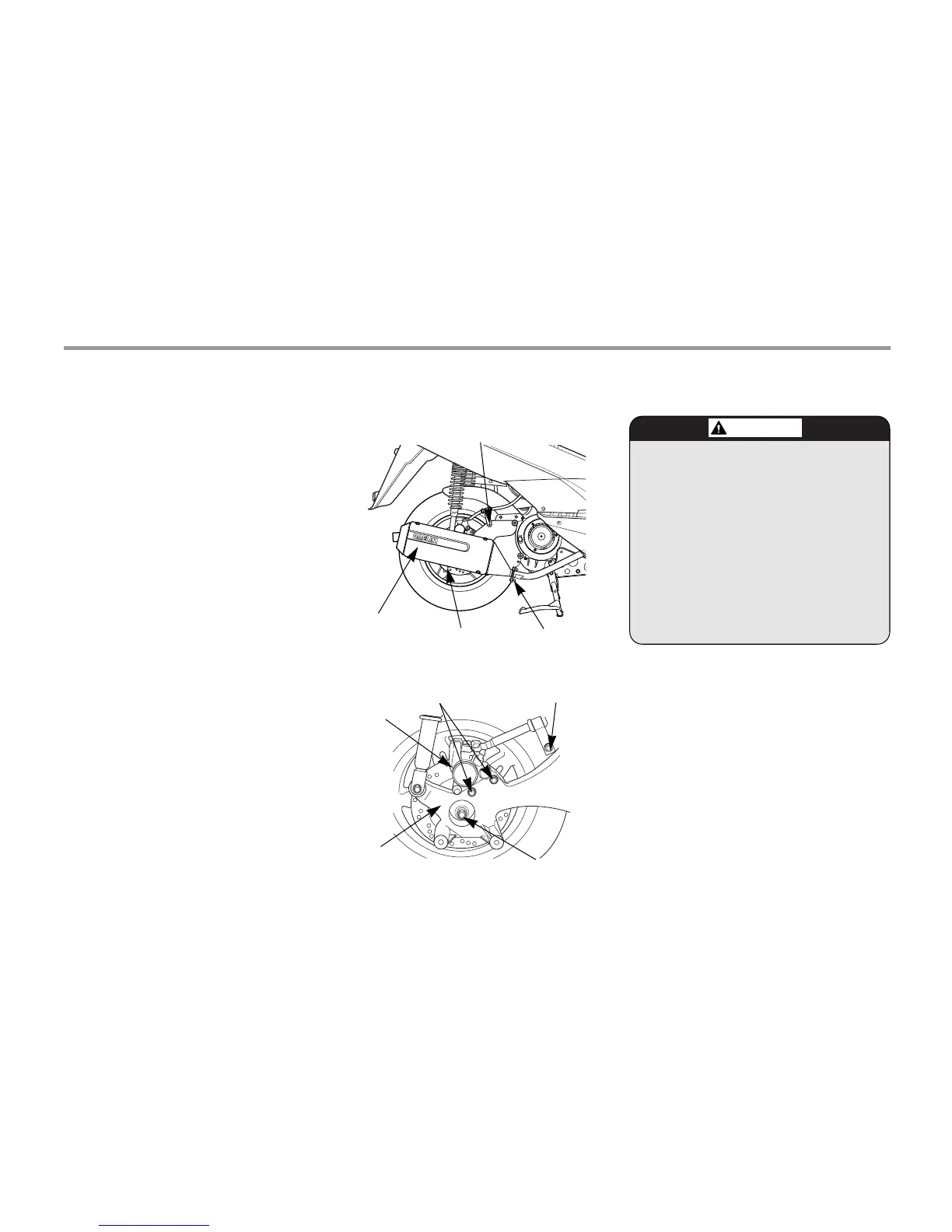

<REAR WHEEL REMOVAL>
① Set vehicle on main stand in upright
position on the ground.
② Remove the muffler.
③ Remove the rear caliper assembly
from the rear swing arm by removing
the 2 fixing bolts.
④ Remove the special bolt of RR.
cushion securing the RR.swing arm
and pull it up.
⑤ Lossen the axle nut and remove the
RR.swing arm.
⑥ Remove the collar and the rear wheel.
⑦ Install in the reverse order of removal.
REAR AXLE NUT TORQUE
: 8.0~10.0kgf
··
m
40
CAUTION
●If a torque wrench was not used for
installation, see your authorized
dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss
of braking capacity.
●Never perform the maintenance of
the muffler right after stopping the
vehicle because the muffler is
extremely hot.
REAR CALIPER
REAR
SWING ARM
FIXING BOLTS
AXLE NUT
REAR BRAKE HOSE
SETTING BOLT
FIXING BOLTS
MUFFLER
SETTING BOLTS
MUFFLER
REAR BRAKE HOSE
SETTING BOLT

DAELIM S2 125 Specifications

General

Displacement	124.6 cc
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air-cooled
Transmission	Automatic (CVT)
Front Brake	Disc
