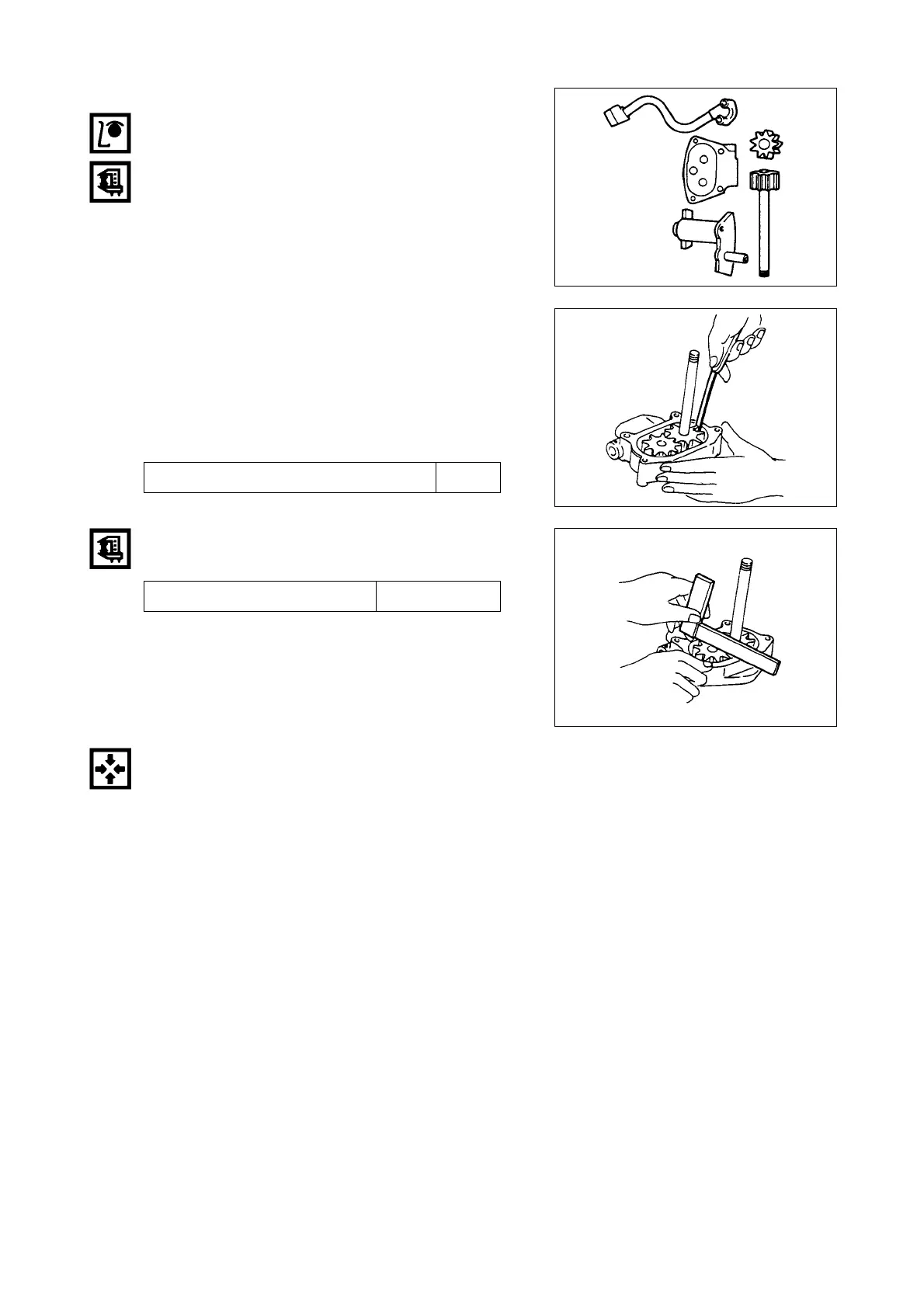

• Inspection and repair
Visually Inspect the disassembled parts for the
excessive wear and damage.
Correct or replace if it is found the worn and
defect when check it.
Check the disassembled parts for the damaged
parts of defect.
Use a feeler gauge to measure the clearance
between the oil pump cover (oil pump case)
inside surface and the driven gear.
If the clearance exceeds the specified limit, the
drive gear and/or the oil pump cover must be
replaced.
Clearance between oil pump drive gear and
inside of cover.
Limit of Oil Pump Cover and Oil Pump Drive Gear Clearance 0.18 mm
Clearance of oil Pump Driven Gear and oil
pump body
Reassembly
Reassambly shall be inverted from the
disassambled.
EJM3003S
EJM3004S
EJM3005S
Limit 0.12 mm
