3. SYSTEM OF LUBRICATION

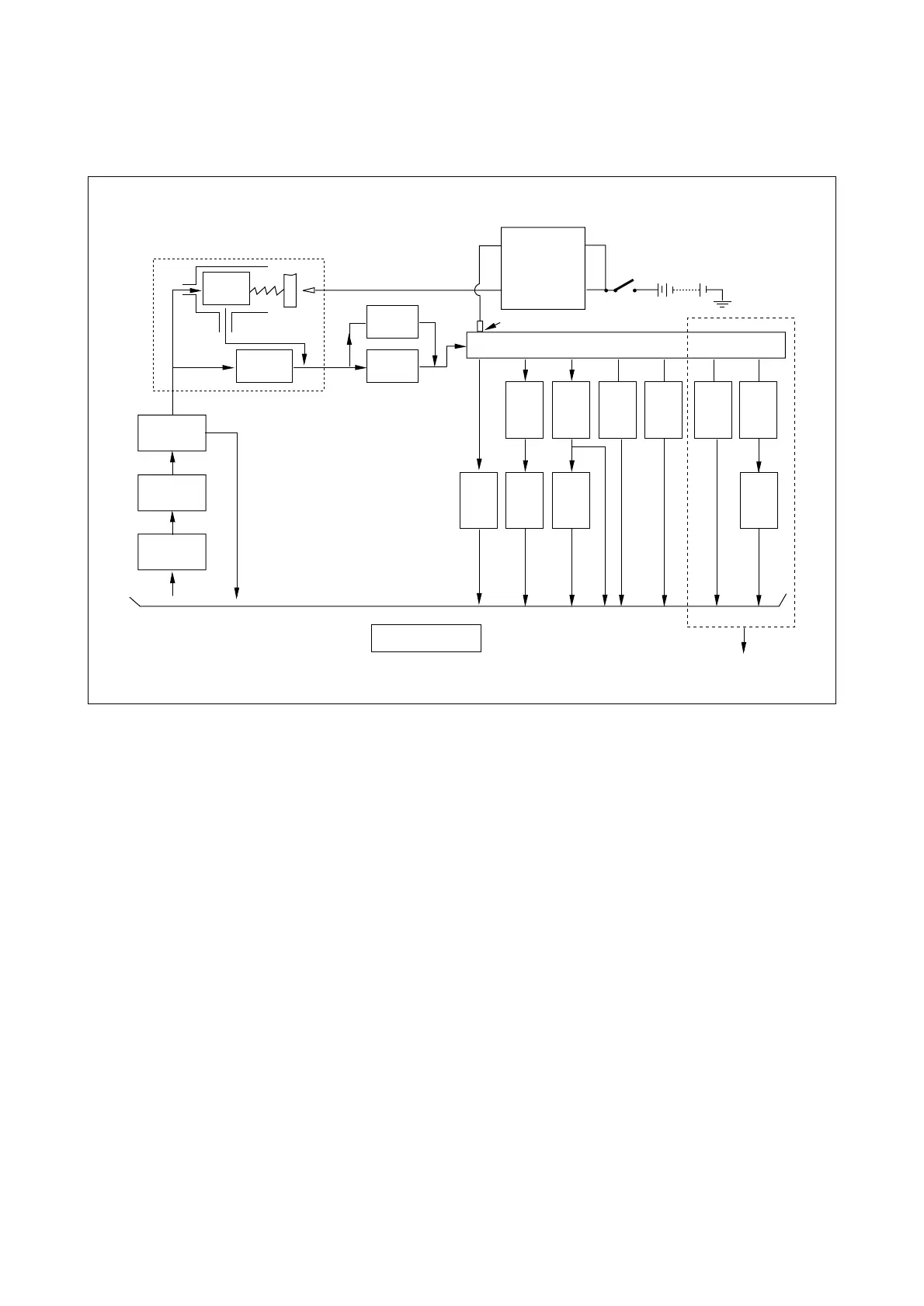

3.1. General Description
- 96 -
EJM3001I
(27)
(25)
(24)(23)
(26)
DB58T/TI
(19)
(20)
(21)
(22)
(18)
(17)
(11)
(10)
(9)
(15)
(14)
(16)
(13)
(7)
(5)
(6)
(2)
(1)
(1) Oil filter
(2) By-pass valve
(Opening pressure 1kg/cm
2
)
(5) Paper filter
(6) By-pass valve
(Opening pressure 2kg/cm
2
)
(7) Oil cooler
(9) Oil relief(Opening pressure 7kg/cm
2
)
(10) Oil pump
(11) Oil strainer
(13) Oil pressure and oil filter warning lamp
(14) Starter switch
(15) Battery
(16) Oil pressure switch
(17) Crank shaft bearings
(18) Cam-shaft bearings
(19) Timing dile gear
(20) Injection Pump
(21) Turbo charger
(22) Oiling jet(Opening pressure 2.2kg/cm
2
)
(23) Oil relief valve
(Opening pressure 4.5kg/cm
2
)
(24) Conn. rod bearings
(25) Cyl. head valve system
(26) Piston
(27) Oil pan
