6.2. Alternator
��
Specifications
EJM6002S
Type 3 phase AC alternator
Rated voltage 24V
Rated output 45A/60A
Max. allowable speed 8000 rpm
Polarity grounded Negative(-)
Direction of rotation Clockwise(viewde from pulley side)
Weight 6.1 kg (7.6 kg)
��
Generator

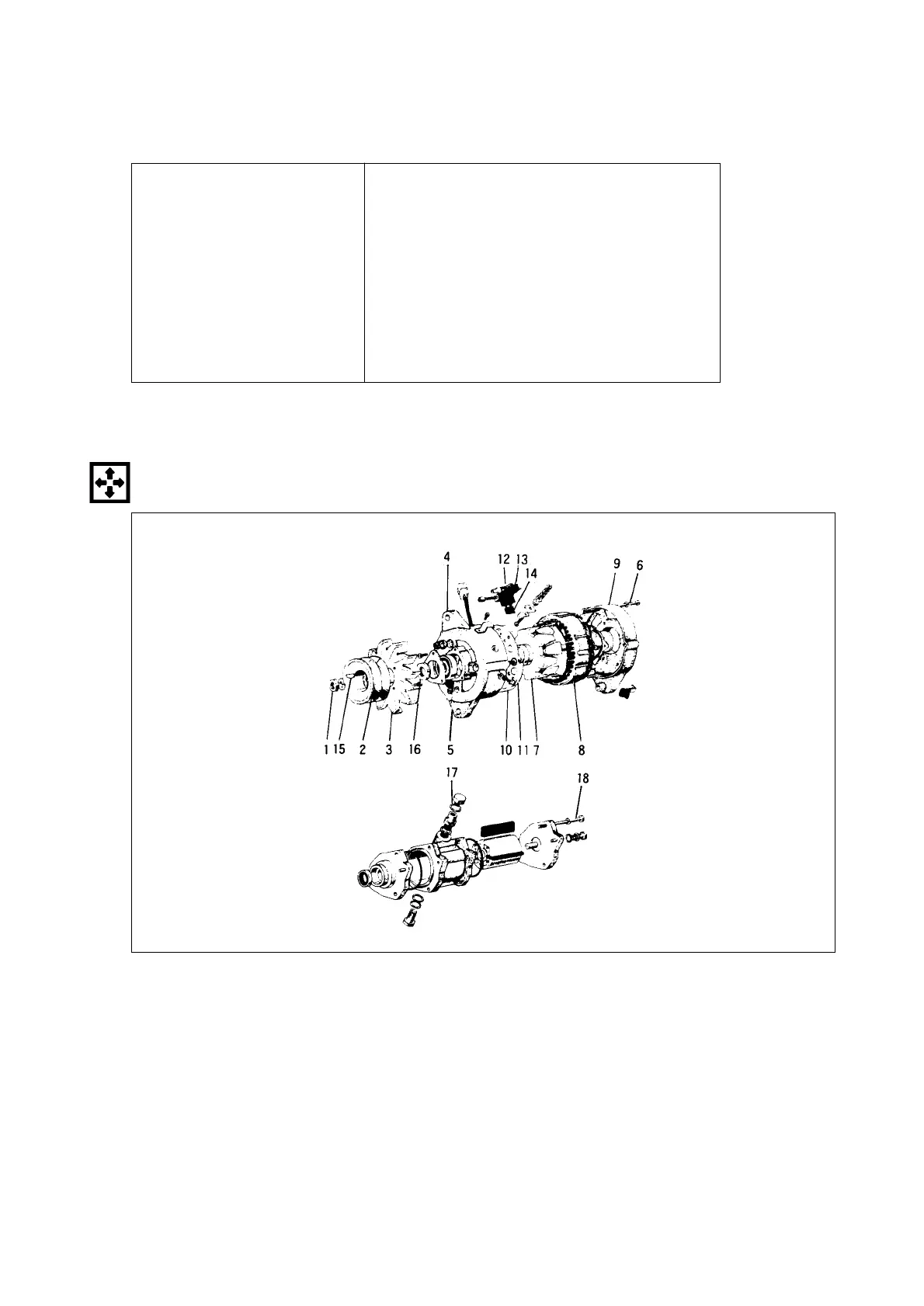

<Disassembly steps>
1. Lock nut 7. Roter assembly 13. Brush spring
2. Pulley 8. Stator assembly 14. Brush
3. Fan 9. Rear side cover assembly 15. Key
4. Front cover 10. Diod assembly(+) 16. Bearing lock nut.
5. Ball bearing 11. Diod assembly(-) 17. Washer
6. Thre bot 12. Brush holder assembly 18. Bolt
To Next Page
