Daewoo DB58 - Page 77

- 74 -
DB 58TI
EJM2108S
★
:
Repair Kit

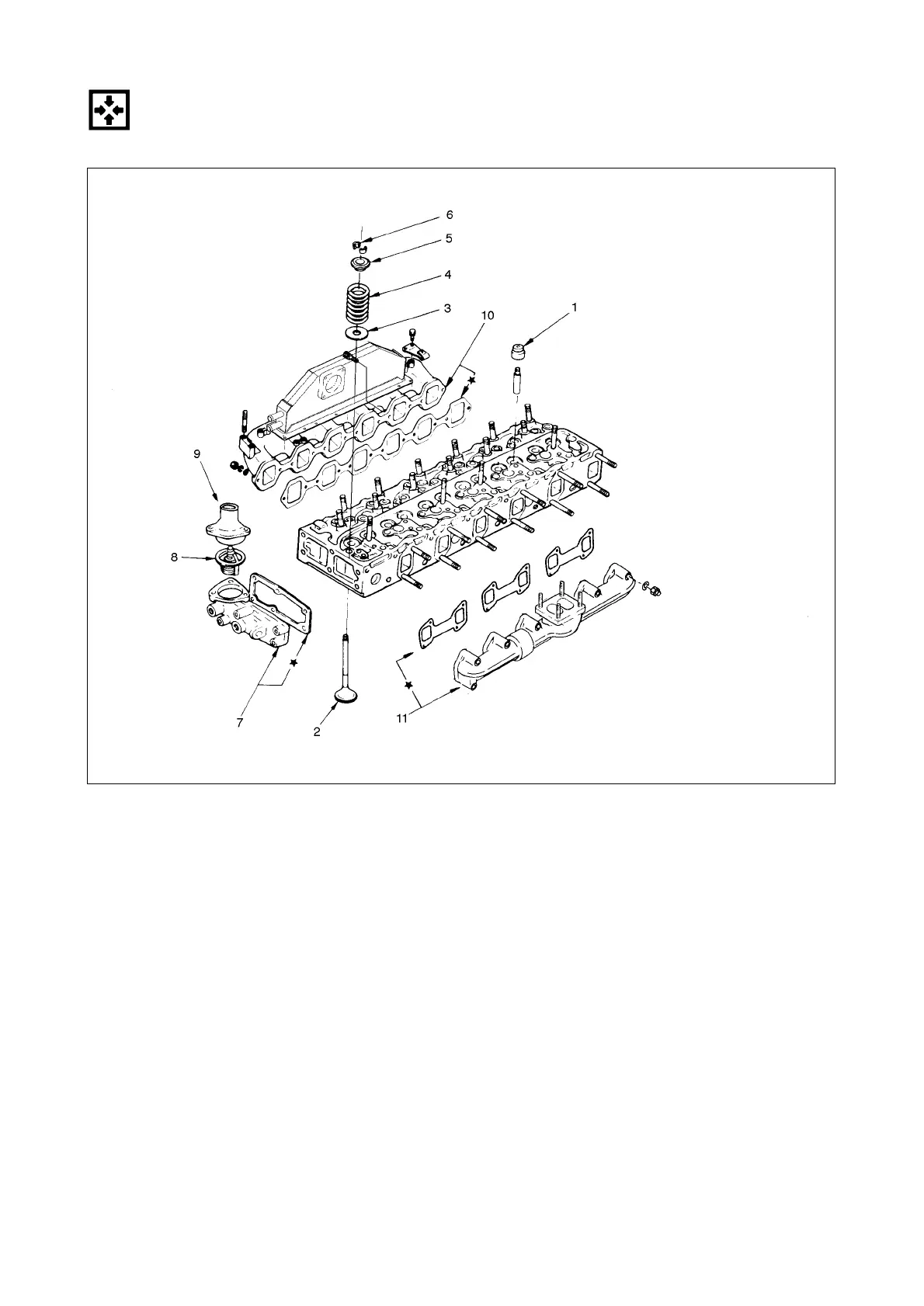

<Order of Assembly>
1. Valve stem oil seal
2. Intake and exhaust valves
3. Spring seat(Lower)
4. Intake and exhaust value sping
5. Spring seat(Upper)
6. Split collar
7. Thermostat housing and gasket
8. Thermostat
9. Coolant outlet pipe
10. Intake manifold and gasket
11. Exhaust manifold and gasket
12. Intercooler
