Description of Each Block
-11-

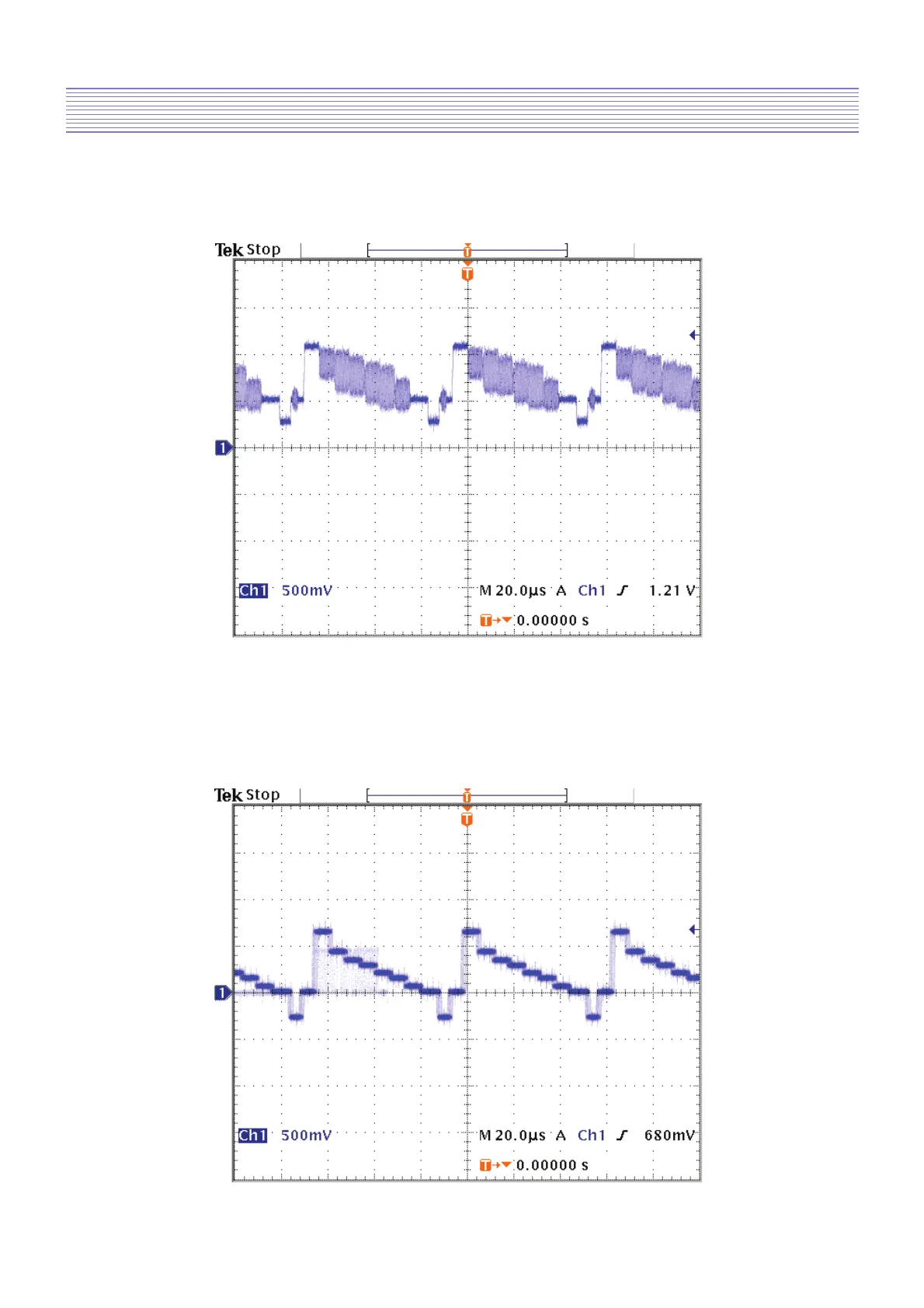

CVBS signal(input to IC505)
Location : CC455
4-2-2. DTV/DVD signal
Y signal(input to IC505)
Location : CC445
