Description of Each Block
-15-

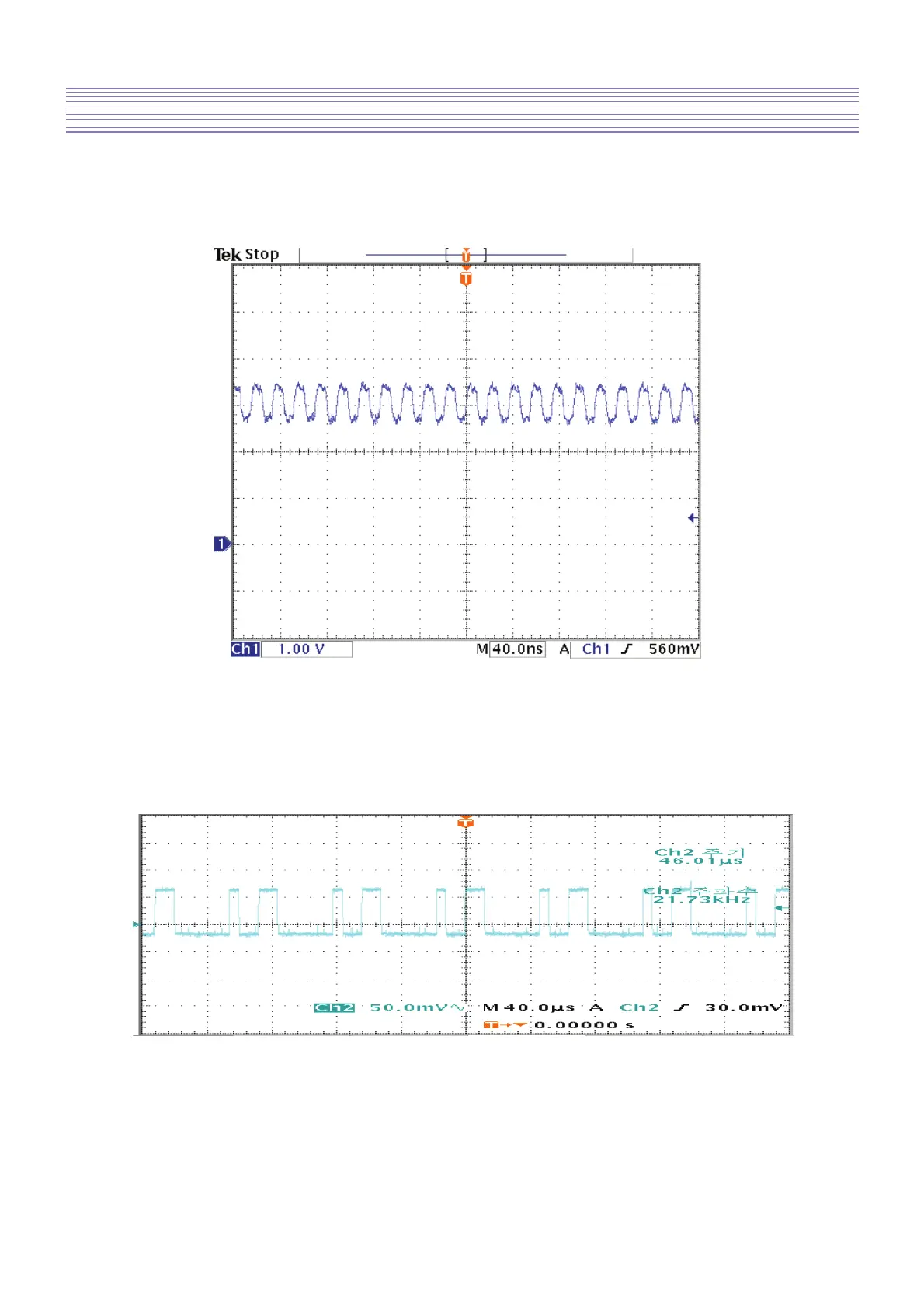

4-2-4. HDMI signal
Location : RC465, RC466, RC467, RC468, RC469, RC470, RC471, RC472
4-2-5. R/G/B PROCESSING(SCART1, TELETEXT R/G/B)
R signal (input to IC505)
Location : RC450
